10 P&P and TWIN Heads
10.1.1 Technical Data Twin Head 10.1 Overview
Student Guide SIPLACE D-Series (FSE) 181
10
10 P&P and TWIN Heads
P&P and TWIN Heads
10.1
10.1 Overview
Overview
10.1.1
10.1.1 Technical Data Twin Head
Technical Data Twin Head
NOTICE
Cause of Hazard
The following descriptions for the D3 TWIN Head also apply correspondingly for the D1/D1i
P&P head.
The D1/D1i P&P head corresponds to one of the two D3 TWIN segments.

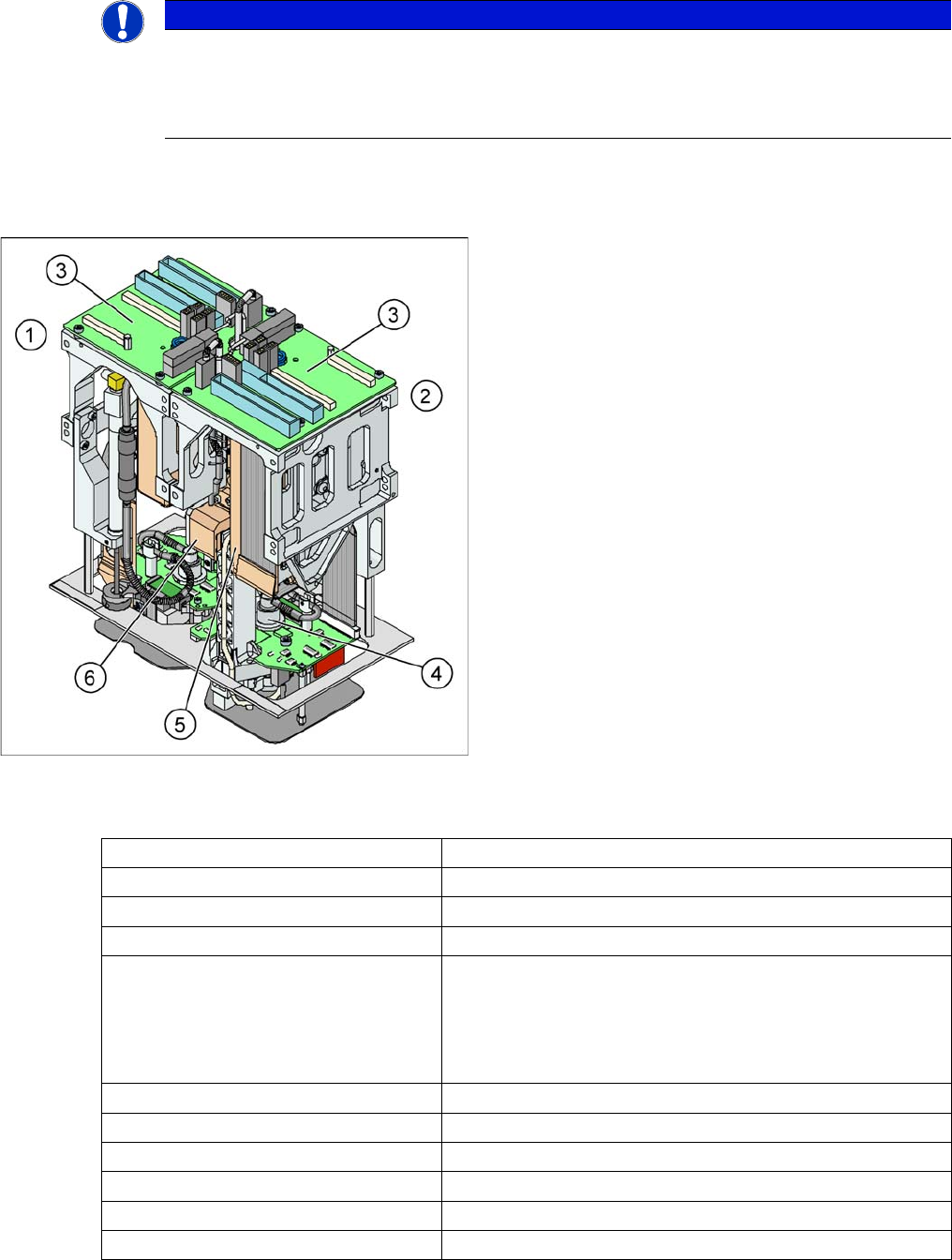

Legend
1. Module 1
2. Module 2, rotate by 180 ° compared to module 1.
3. Main board on modul 1 and modul 2
4. D Axis
5. Linear motorZ Axis
6. Z axis incremental measurement system
The Twin head consists of two identical modules which
work according to the Pick&Place principle. The second
P&P head is rotated 180 degrees.
For the Twin-head, new nozzles (Type 5xx) were devel-
oped. However, the nozzles of the Pick&Place head type
4xx and the nozzles of the Collect&Place heads type 8xx
and 9xx we can use with an adapter.
Placement accuracy (X/Y) 35µm by 4 sigma with IC camera
Placement accuracy (X/Y) 30µm by 4 sigma with FC camera
Placement accuracy (Angle) 0,07° by 4sigma
Placement speed 3500 cph
Maximum component size: 50 up to 40 mm single measurement on both segments
69 up to 10 mm (multiple measurement on both segments)
125 up to 10 mm ( multiple measurement on one segment)
200 up to 125 mm (multiple measurement with restrictions on
one segment )
Max. component height 25 mm
Placement force 1 - 15 N
D-Axis / Resolution direct drive / 0,001 degree
Z Axis / Resolution Linear motor / 0,5 µm
Travel range Z axis app. 60 mm
Nozzle types 5xx (4xx, 8xx, 9xx with adapter)
