11 Component Handling 11.1 Overview Student Guide SIPLACE D-Series (FSE) 195 11 1 1 C o m p o n e n t H a n d lin g Component Handling 11.1 1 1 . 1 O v e r v ie w Overview Up to four flexible changeover tables can be doc…
10 P&P and TWIN Heads
10.6 Room for Your Sketches and Notes 10.4.3 Functions
194 Student Guide SIPLACE D-Series (FSE)
11 Component Handling
11.1 Overview
Student Guide SIPLACE D-Series (FSE) 195
11
11 Component Handling
Component Handling
11.1
11.1 Overview
Overview
Up to four flexible changeover tables can be docked onto the D4/D4i/D3 (D1/D1i/D2/D2i: two) machine..
Plug-in electrical and pneumatic connections link the machine to the changeover table.

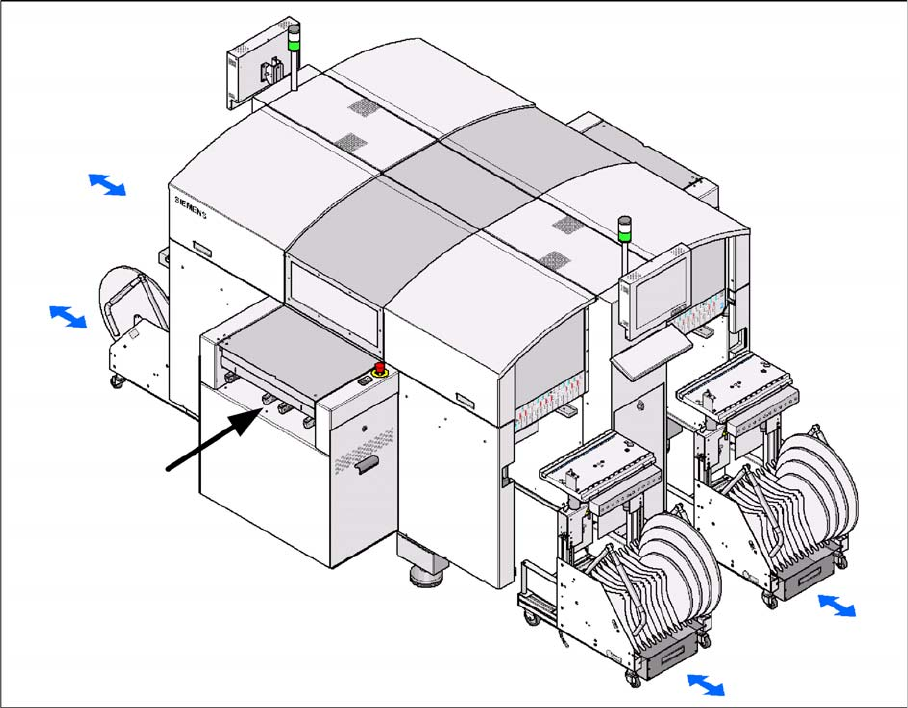

Positions of changeover tables and buttons for docking and undocking the tables (D4/D4i)
11 Component Handling
11.1 Overview 11.1.1 Technical Data - Changeover Tables
196 Student Guide SIPLACE D-Series (FSE)

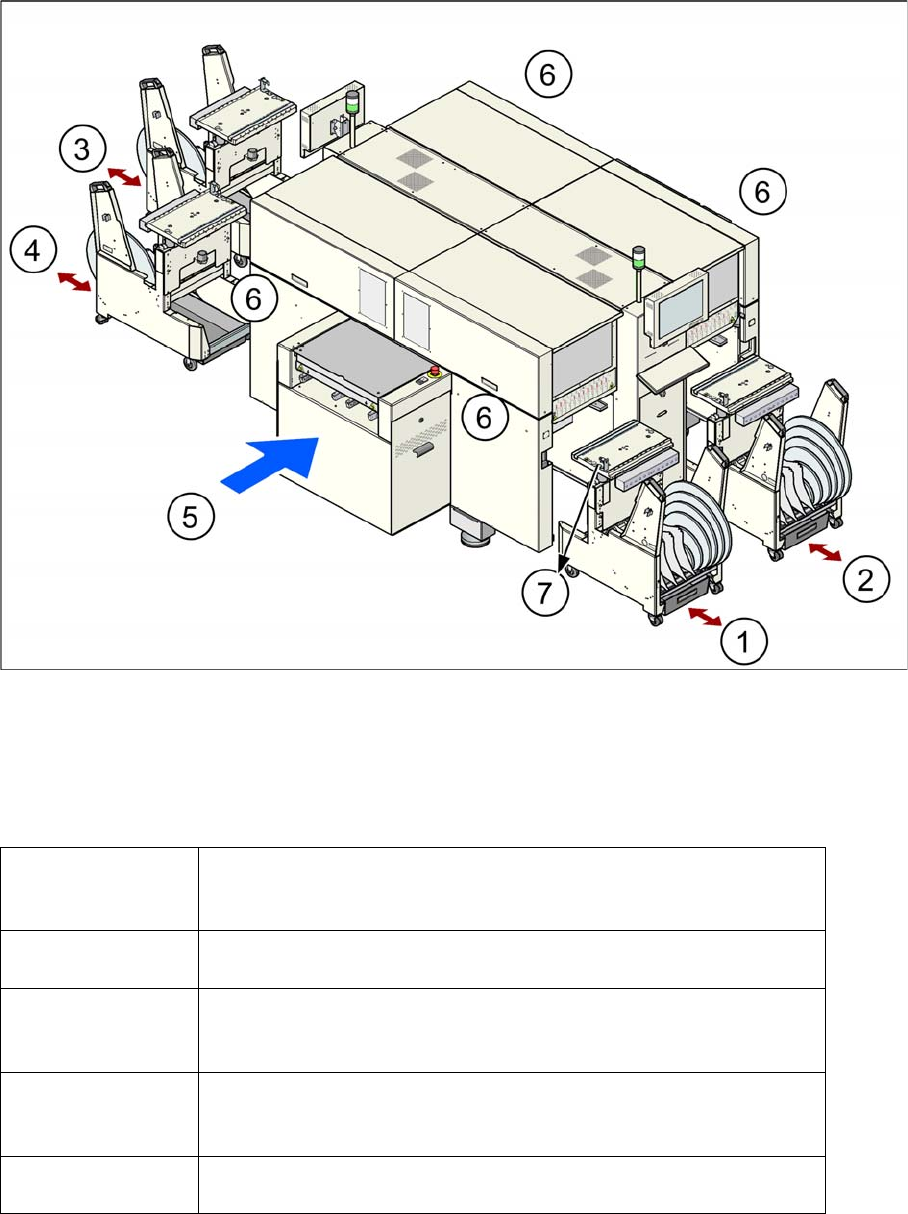

D4i Table Components
The table unit consists of the changeover table and the mechanics for raising and lowering the change-
over table.
11.1.1
11.1.1 Technical Data - Changeover Tables
Technical Data - Changeover Tables
Feeder capacity for
D1/D1i/D2/D2i ma-
chines:
90 tracks for 8 mm tapes with 3x8 mm feeders
60 tracks for 8 mm tapes with 2x8 mm feeders
Feeder capacity for
D4/D4i machines:
144 tracks for 8 mm tapes with 3x8 mm S feeders
96 tracks for 8 mm tapes with 2x8 mm S feeders
Locations for D1/D1i/
D2/D2i machines:
2 changeover tables with integrated waste tape container
15 feeder positions, each one with 30 mm on each changeover table
Option: WafflePackChanger 4 (10 Fördererpositionen – 30 mm breit)
Stellplätze der D3: 4 BE-Wechseltische mit 'anhebenden Einzug'
15 Förderpositionen mit je 30 mm auf jedem Wechseltisch.
Option ab SW SR/MC 605: WafflePackChanger 4 im Stellplatz 2
Locations for D4/D4i
machines:
4 changeover tables with integrated waste tape container
12 feeder positions, each one with 30 mm on each changeover table
