12.1.9 Conveyor Control TSP 201
Conveyor Control TSP 201
The conveyor control TSP 201 is used for the 3-part conveyor paths of the D1/D1i and D2/D2i machines.
It supports the following options:
▪ Left conveyor side fixed (default: right conveyor side fixed)
▪ "Long PCB" option
▪ PCB Alignment pin
▪ Vacuum tooling
▪ PCB barcode
▪ Interface for PCB handling signals with SCHEMA standard/ optional PCB handling signals for SIE-
MENS standard
12.1.10
12.1.10 Conveyor Control TSP 301
Conveyor Control TSP 301
The conveyor control TSP 301 is used for the 5-part conveyor paths of the D3 and D4/D4i machines. It
supports the following options:
▪ Left conveyor side fixed (default: right conveyor side fixed)
▪ "Long PCB" option
▪ PCB Alignment pin
▪ Vacuum tooling
▪ PCB barcode
▪ Interface for PCB handling signals with SCHEMA standard/ optional PCB handling signals for SIE-
MENS standard
12.1.11
12.1.11 Overview – Conveyor Systems in D/Di-Series
Overview – Conveyor Systems in D/Di-Series
Assembly D4/D4i D3 5-part conveyor system
Conveyor control
TSP301 YES
Extension assembly for DT YES
SMEMA Option This may be the standard in the USA, mean-
ing that you would need other cables be-
tween the machines!
Siemens PCB handling in-
terface
Standard Switchable via jumpers but can NOT be ed-
ited in SITEST configuration window.
Conveyor (TSP) conversion
board
YES
Conveyor (TSP) side con-
version board
2 or 4 3 or 4
DIP switch 1, 2 ON
3-8 OFF
1 ON
2-8 OFF
Download eSW (firmware) 05 06
PCB recognition
Light barrier Transmitter red, left
PCB stop in PA Optical, LASER
12 Modular Conveyor
12.1 Functions 12.1.11 Overview – Conveyor Systems in D/Di-Series
216 Student Guide SIPLACE D-Series (FSE)
Movement to LASER Time-controlled slow
speed
Lifting table
Clamping Upwards
Drive Pneumatic cylinder
Damper at top YES
Dual TSP lifting tables Can be coupled
PCB clamping length 368 mm Specified PCB clamping length: 460 mm
Assembly D2/D2i D1/D1i 3-part conveyor system
Conveyor control
TSP201 YES
Extension assembly for DT ---
SMEMA Option Can be switched via jumper and needs an
interface box and other cables between the
machines
Siemens PCB handling in-
terface
Standard
Conveyor (TSP) conversion
board
YES
Conveyor (TSP) side con-
version board
2 or 4 3 or 4
DIP switch, single conveyor 2, 4, 5 ON
1, 3, 6 OFF
2, 4 ON
1, 3, 5, 6
OFF
DIP switch (5) D2/D2i must be set, DIP
switch D1/D1i does not need to be set, as on
the label!
DIP switch, dual conveyor 1, 2, 4, 5 ON
3, 6 OFF
1, 2, 4 ON
3, 5, 6 OFF
Download eSW (firmware) 04
PCB recognition
Light barrier Transmitter red, left
PCB stop in PA Optical, LASER
Movement to LASER Time-controlled slow
speed
Lifting table
Clamping Upwards
Drive Pneumatic cylinder
Damper at top YES
Dual TSP lifting tables Can be coupled
PCB clamping length 440 mm Specified PCB length: 460 mm
Assembly D4/D4i D3 5-part conveyor system
12 Modular Conveyor
12.1.12 Measuring Points and Belt Tensions for D1/D1i/D2/D2i Conveyor 12.1 Functions
Student Guide SIPLACE D-Series (FSE) 217
12.1.12

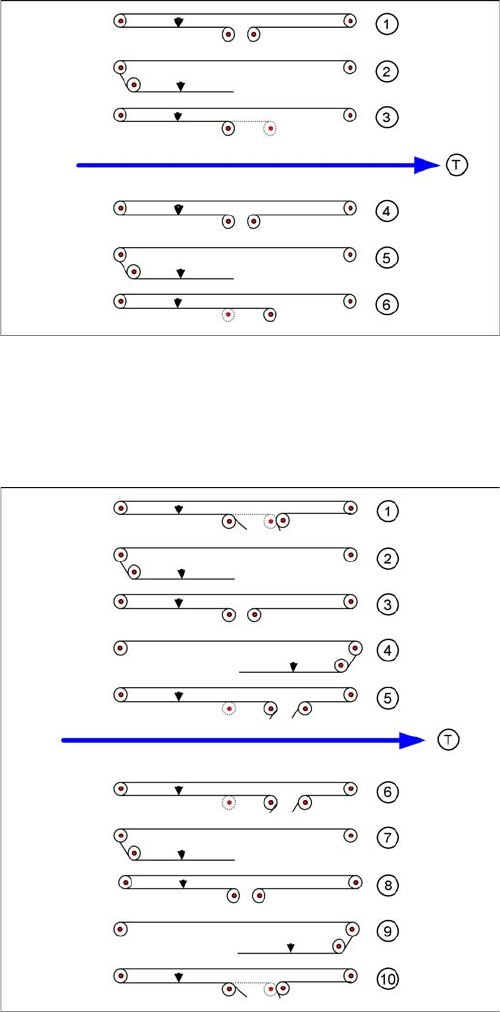

12.1.12 Measuring Points and Belt Tensions for D1/D1i/D2/D2i Conveyor
Measuring Points and Belt Tensions for D1/D1i/D2/D2i Conveyor
12.1.13
12.1.13 Measuring Points and Belt Tensions for D3 Conveyor
Measuring Points and Belt Tensions for D3 Conveyor
Legend
Measuring points (arrows) and measuring values for con-
veyor belt tensions:
Single conveyor or dual conveyor lane 1
1. Input conveyor: 98 +/-10 Hz
2. Processing area: 64 +/- 6 Hz
3. Output conveyor: 100 +/- 10 Hz
Dual conveyor lane 2
1. Input conveyor: 98 +/- 10 Hz
2. Processing area: 69 +/- 7 Hz
3. Output conveyor: 84 +/- 8 Hz
Width Adjustment
▪ Width adjustment Limit switch, 24 +/- 2 Hz
Legend
Measuring points (arrow) and values for conveyor belt
tensions:
Single conveyor or dual conveyor, track 1
1. Input conveyor: 102 +/-10 Hz
2. Processing area 1: 66 +/- 7 Hz
3. Intermediate conveyor: 94 +/- 9 Hz
4. Processing area 2: 66 +/- 7 Hz
5. Output conveyor: 144 +/- 14 Hz
Dual conveyor, track 2
1. Input conveyor: 144 +/- 14 Hz
2. Processing area 1: 66 +/- 7 Hz
3. Intermediate conveyor: 94 +/- 9 Hz
4. Processing area 2: 66 +/- 7 Hz
5. Output conveyor: 102 +/- 10 Hz
Width adjustment
▪ Width adjustment: 30 +/- 2 Hz
