12 Modular Conveyor 12.3 Conveyor Settings 12.3.1 Setting the Fixed Conveyor Side (S ingle and Dual Conveyor) 222 Student Guide SIPLACE D-Series (FSE) ► The conveyor sides of the 2nd co nveyor lane (r ight side fixe d ( …
12 Modular Conveyor
12.3.1 Setting the Fixed Conveyor Side (Single and Dual Conveyor) 12.3 Conveyor Settings
Student Guide SIPLACE D-Series (FSE) 221

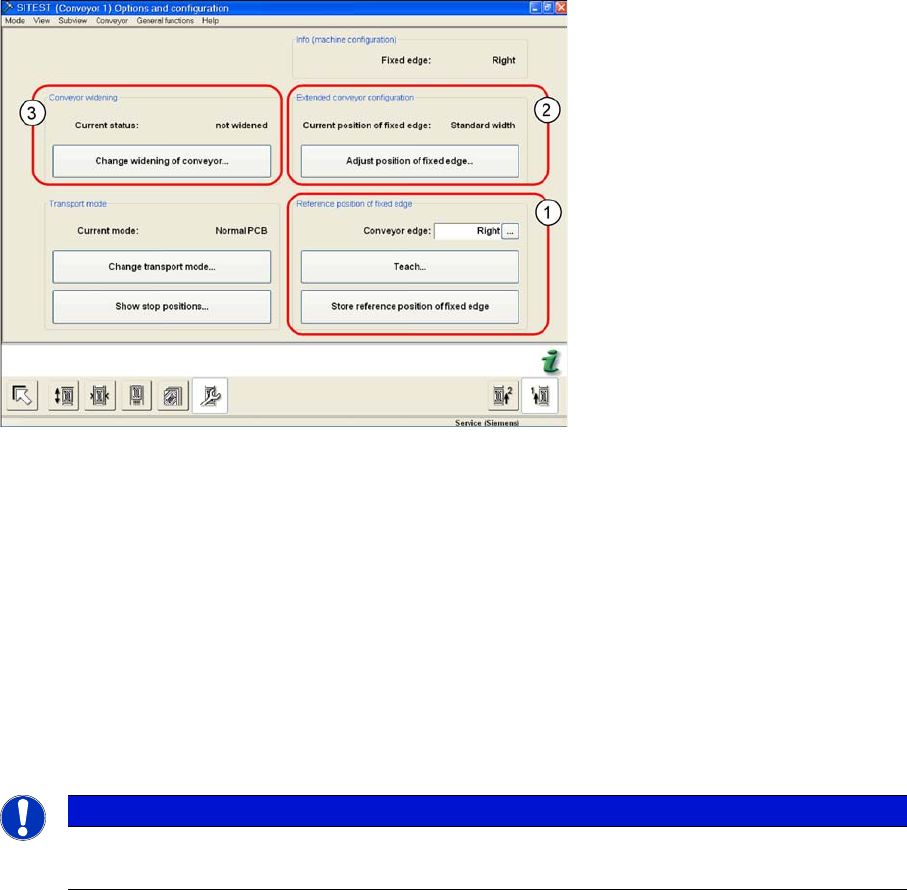

SITEST – conveyor "options and configuration"
See also
12.3.1.1.1 To (1): Reference Position of Fixed Side [ ➙ 221]
12.3.1.1.2 To (2), (3): Advanced Conveyor Configuration [ ➙ 221]
12.3.1.1.3 To (3): Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode) [ ➙
221]
12.3.1.1.4 To (3): Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode [ ➙
223]
12.3.1.1.5 To (2): Setting the Fixed Conveyor Side for "Extra Wide" Mode [ ➙ 223]
To (1): Reference Position of Fixed Side
▪ The fixed conveyor side can be changed via SITEST and set to "Right side fixed"/"Left side fixed" as
required.
▪ If the position of the fixed conveyor side which has been taught is saved, these values will be used
for the function Move all conveyor edges to standard position .
The default values will be overwritten and will need to be retaught.
▪ If these dimensions are incorrectly set on the single or dual conveyor, the PCB reference corner may
be moved, leading to fiducial errors during placement.
To (2), (3): Advanced Conveyor Configuration
Two requirements for changing the fixed conveyor sides:
▪ Extra wide conveyor: This moves the fixed conveyor side in D/Di-series machines 25 mm (D3: X ex-
tra wide 34 mm) outwards.
▪ Widen conveyor:This moves the conveyor sides of the 2nd conveyor to the limit switch
In single conveyor mode, lane 1 of D/Di-series machines can be set to widths of up to 380 mm (HF,
X, D3 lines up to 450 mm).
To (3): Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
► Select Option and configuration from the SITEST conveyor menu and then click on Widen conveyor
to widen the conveyor.
NOTICE
Art und Quelle der Gefahr
The menu (1) is protected with the SiPLACE Service password.
12 Modular Conveyor
12.3 Conveyor Settings 12.3.1 Setting the Fixed Conveyor Side (Single and Dual Conveyor)
222 Student Guide SIPLACE D-Series (FSE)
► The conveyor sides of the 2nd conveyor lane (right side fixed (lane 1 left side fixed)) are moved to
the limits.
► The SITEST SW ask for connecting the lifting tables.
Widening the board conveyor (from its standard width) allows you to use boards up to 380 mm wide.
If the PCB conveyor is switched from the mode "extra wide" to the mode "widened", this means that D/
Di-series machine can place boards up to a width of approx. 400 mm (D3: approx. 420 mm).
Setting the "fixed conveyor side" in SIPLACE D/Di-Series
Connecting the Dual Conveyor Lifting Tables
► Remove the lifting table plate on conveyor lane 2 in PA1 and on lane 1 in PA2.
NOTICE
Cause of Hazard
The fixed conveyor side should be adjusted only with the SITEST software and the width ad-
justment devices. This ensures that the conveyor runs straight.
NOTICE
This option is only a mechanical function when you use the dual conveyor as a single conveyor.
The two lifting tables move parallel when they are connected.
12 Modular Conveyor
12.3.1 Setting the Fixed Conveyor Side (Single and Dual Conveyor) 12.3 Conveyor Settings
Student Guide SIPLACE D-Series (FSE) 223
► Loosen the lockscrew(s) (4) and use a screwdriver to push the hexagonal circlip over the shaft on
lifting table 1.
► Do this for lifting tables in all placement areas. (lifting tables in the PA’s 180° turned.)
► Configure the new conveyor mode in SIPLACE Pro
To (3): Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode
► Select the SITEST conveyor menu "Option and configuration" and then click on Widen conveyor to
set the standard conveyor mode.
► The flexible conveyor side of conveyor 1 (right side fixed (track 1 left side fix)) is moved to a small
conveyor width.
► The SITEST SW ask to disconnect the lifting tables - Do so-.
► The SITEST SW will now use the conveyor control SW to move the fixed side of conveyor 2 (right
side is fixed (lane 1 left side fixed)) back to its standard position. Check the distances between the
two fixed conveyor lanes.
► Now adjust conveyor width of both tracks to desired values.
To (2): Setting the Fixed Conveyor Side for "Extra Wide" Mode
This mode is set in the menu Change position of fixed rail in the software.
The default positions for the fixed conveyor side (s) are predefined.
► Select Option and configuration from the SITEST conveyor menu and then click on Change position
of fixed rail, to set the mode "extra wide".
► The fixed conveyor side TSP 2 (right side fixed (lane 1 left side fixed) remains in its position.
Lifting table
▪ The drive shaft (1) is connected to the piston rod of
the pneumatic cylinder. This shaft couple the second
lifting table of the dual conveyor. The lifting table drive
shaft also has an additional rod with a hexagonal cir-
clip. They secure the sleeve shaft in the desired posi-
tion.
▪ Direction of transport (2)
▪ Direction (3) in which the hollow shaft from lifting ta-
ble 2 (1 in PA 2) is to be moved to lifting table 1 (2 in
PA 2).
▪ Lock screws (4)
NOTICE
When converting the dual conveyor to a single conveyor (flexible dual conveyor, connect the
lifting tables when requested to do so by SITEST (we recommend doing this without com-
pressed air supply to the lifting table).
This function is supported by SIPLACE Pro.
NOTICE
Cause of Hazard
This mode is possible for D/Di-series machines with single or dual conveyors.
