14 SITEST 14.2.1 Calibration - General Sequence 14.2 Calibration Student Guide SIPLACE D-Series (FSE) 245 14.2.1 1 4 . 2 . 1 C a lib r a t io n - G e n e r a l S e q u e n c e Calibration - General Sequence General seque…
14 SITEST
14.2 Calibration 14.1.2 SITEST Overview 603
244 Student Guide SIPLACE D-Series (FSE)
14.2
14.2 Calibration
Calibration
Tools and SITEST
▪ Calibration tool – general –
Version III not transparent is for HF/X/D/Di machines with C&P6/12 and Twin/P&P Head [03010565-
01]
(Version II transparent is for S/F/HS machines [00316308-03], calibration nozzle 920)
(Version for SST23 at X machines with C&P20 head [03034148-xx])
▪ Nozzles – general –
Type 956, 517, 518, nozzle for ZPC of D-axis TH [03008862-03]
(C&P20 head: 1235)
▪ Setting gauge for S tables
▪ Board for calibrating the PCB conveyor width
▪ 2D coplan - (ILD2200) - calibration tool
▪ SITEST, version 602.xx or higher
DANGER
RISK OF INJURY!
The gantry may move during some of the following procedures.
Therefore, before you begin with any of these procedures make sure that you and everyone
else stay physically clear of the travel range of the gantries.
► Also, sure, that no objects are in the way.
NOTICE
Cause of Hazard
Before you begin with the calibration, you must reference the heads and the gantries.
During calibration, unused gantries will automatically be moved to their parking position.
To completely calibrate the machine, go to Calibrate machine... and select the Calibrating the
entire machine menu. This provides all the required calibration functions.
14 SITEST
14.2.1 Calibration - General Sequence 14.2 Calibration
Student Guide SIPLACE D-Series (FSE) 245
14.2.1
14.2.1 Calibration - General Sequence
Calibration - General Sequence

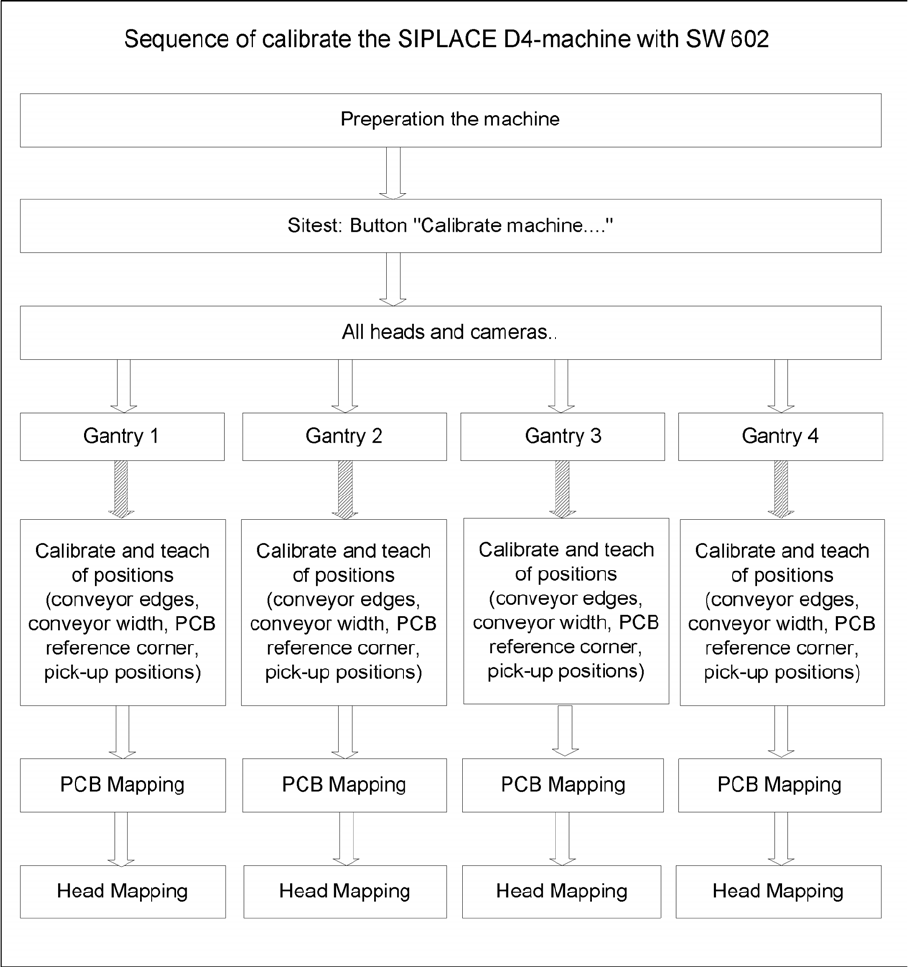

General sequence to calibrate the machine
14.2.2
14.2.2 Requirements for Calibration of Nozzle Changers in the SIPLACE D/Di Machines
Requirements for Calibration of Nozzle Changers in the SIPLACE D/Di Machines
► Start SITEST.
► by selecting the menu items MAIN VIEW, Overall reference run, to start the reference run for all gan-
tries and heads.
► Configure the nozzle changer and check the component levels.
Precondition for calibrating the nozzle changer
▪ Each magazine in the NC must be configured with a nozzle type.
▪ There should be no nozzle at segment 1 .
14 SITEST
14.2 Calibration 14.2.3 C&P Head
246 Student Guide SIPLACE D-Series (FSE)
▪ Each magazine must at least have a nozzle present and configured (1) in garage 1 .
14.2.3
14.2.3 C&P Head
C&P Head
Sequence of C&P head calibration
NOTICE
Cause of Hazard
When configuring the C&P12 (only), you can also set all magazines to "empty" and the head to
"full".
