14 SITEST

14.3 Calibration Basics 14.3.6 Head Mapping (C&P Head)

252 Student Guide SIPLACE D-Series (FSE)

Result of PCB mapping

The results will be saved in the file MAPP_xy.MA (x= gantry number, y= conveyor lane).

14.3.6

14.3.6 Head Mapping (C&P Head)

Head Mapping (C&P Head)

Head mapping measures the linearity of the C&P head X/Y guidance.

The C&P head places the calibration tool precisely on the default positions of the mapping plate. The

PCB-camera measure the placement accuracy of this placements for the whole placement area.

▪ After the PCB mapping the placement head place at the theoretical positions of the PCB-mapping

the calibration tool.

▪ The PCB camera measures the placement accuracy with the help of the 4 calibration tool fiducials

on the calibration tool upper side.

NOTICE

All described automatically calibration steps above, can you do manually step by step under

the sub menus (see chapter 12.1).

14 SITEST

14.3.7 New Functions in SITEST 14.3 Calibration Basics

Student Guide SIPLACE D-Series (FSE) 253

14.3.7

14.3.7 New Functions in SITEST

New Functions in SITEST

14.3.7.1

14.3.7.1 Transport Menu

Transport Menu

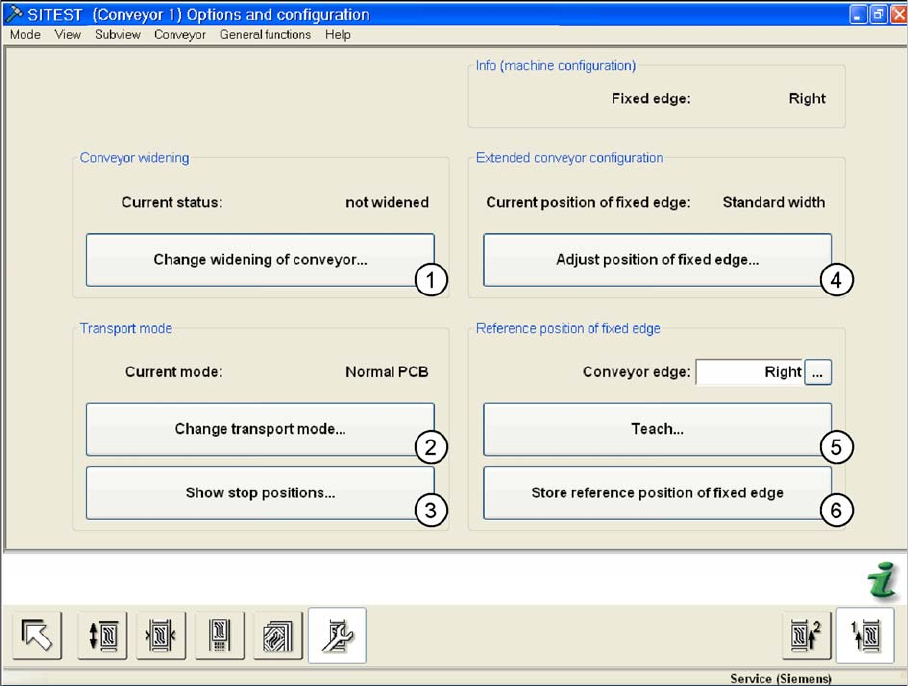

Transport - option and configuration

Legend

1. Changing the conveyor width (only for lane 1, if dual conveyor):

You will see a submenu, in which you can select Widened or Not widened (standard width). Widened

means that lane 2 is moved together (to the limit switch), while the fixed side for lane 1 remains in

its position. (max. width of lane 1 = 380 mm)

If point 4 is selected first (extra wide) this gives a max. width for lane 1 of 430 mm.

2. Change transport mode:

This function is used to configure the option Long Board .

Next menu: normal PCB/ long PCB

3. Show stop positions:

shows the number of position in PA 1 and PA2, additional the offset depend on the standard position

(PCB Reference- corner). The offset for the option Long Board is set by SIPLACE Pro.

4. This enables you to move the fixed conveyor side in its standard position to accommodate standard

or extra wide boards (values from the conveyor control machine data).

Extra wide means that the fixed side is moved up to 26 mm. (dual conveyor lane 1 and lane 2 =

242 mm, flexible dual conveyor lane 1 = 430 mm, single conveyor = 508 mm)

5. Point 5 and 6 only with SIPLACE Service password active! The fixed conveyor side (left, right) can

be taught.

6. Save the teach data from point 5.

14 SITEST

14.3 Calibration Basics 14.3.7 New Functions in SITEST

254 Student Guide SIPLACE D-Series (FSE)

14.3.7.2

14.3.7.2 Function Firmware Download

Function Firmware Download

► Select Settings from the SITEST menu and then Firmware Download.

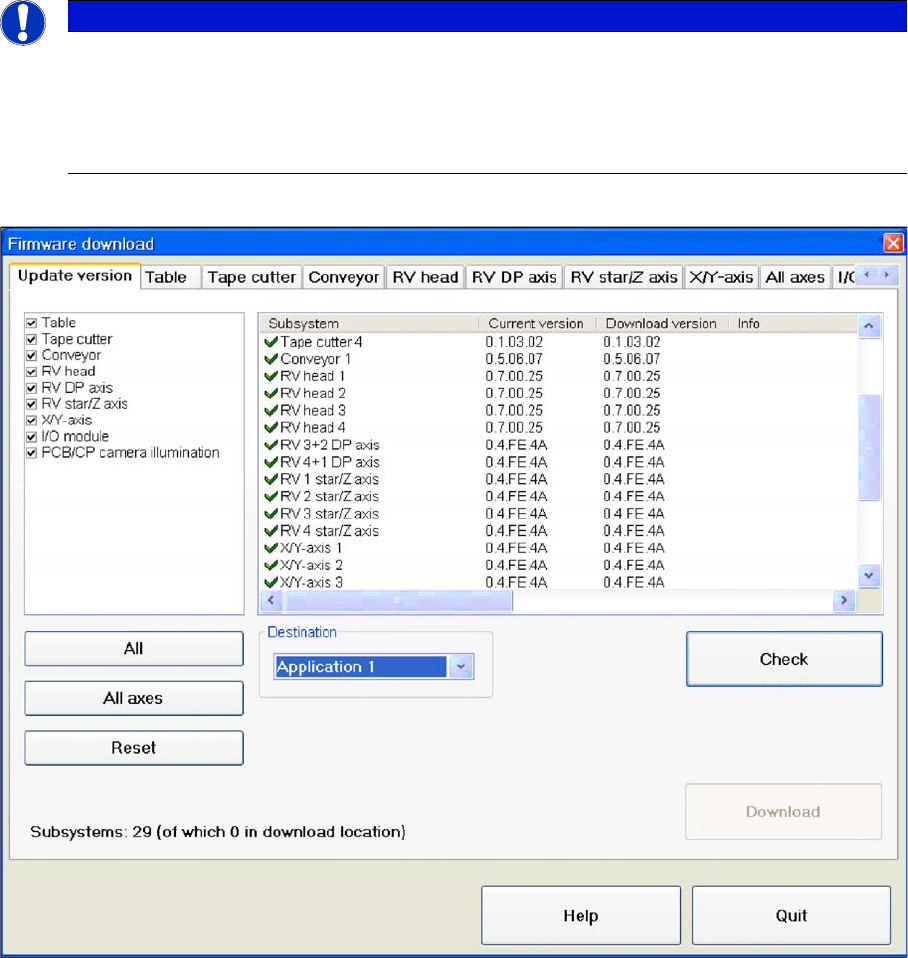

Overview of firmware download

NOTICE

Art und Quelle der Gefahr

For versions up to SC/MC SW 603, this function is only available to SIPLACE service person-

nel.

From SC/MC SW 604, the downloads performed with SITEST to all components can also be

executed by customer service technicians.
