15 SIPLACE Measuring Tools
15.1 SIPLACE Axis Tester (SAT) [03002801-01]
Student Guide SIPLACE D-Series (FSE) 261
15
15 SIPLACE Measuring Tools
SIPLACE Measuring Tools
See also
16.1 Overview of Calibration Tools [ ➙ 265]
15.1
15.1 SIPLACE Axis Tester (SAT) [03002801-01]
SIPLACE Axis Tester (SAT) [03002801-01]

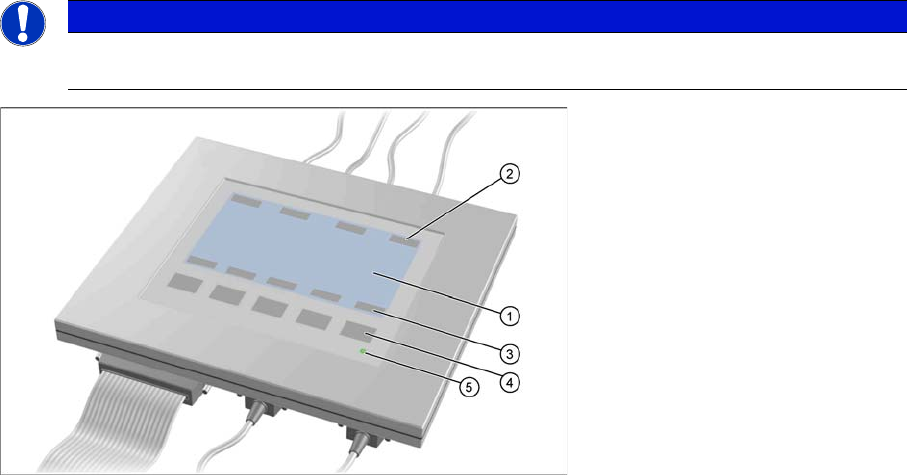

Axis tester - view from above
Legend
1. LCD display with 240 x 128 pixels, black-and-white display, with background illumination
The LCD display shows the menus and the recorded trigger, track and position signals. All relevant
parameters, such as
– Time basis,
– Time measurement values,
– Signal levels and
– Cursor positions with the corresponding time deviation values
are shown as alphanumerical data in the diagram of the measurement curves.
2. Dynamic function display of BNC socket arrangement on the LCD display
3. Dynamic function display of foil button arrangement on the LCD display
4. Five foil buttons for menu control
5. Green LED for displaying operation
NOTICE
The axis tester is designed for all machines with A363. This function is limited for machines with
A364.
