16 Annex (FSE) 16.6.4 Component Camera C&P12 (O ptional, Type 29) 16.6 SIPLACE V ision - Sensor Overview Student Guide SIPLACE D-Series (FSE) 283 16.6.4 1 6 . 6 . 4 C o m p o n e n t C a m e r a C & P 1 2 ( O p t…

100%1 / 290
16 Annex (FSE)
16.6 SIPLACE Vision - Sensor Overview 16.6.2 Optional Digital Component Camera C&P12 (Type 38)
282 Student Guide SIPLACE D-Series (FSE)
16.6.2
16.6.2 Optional Digital Component Camera C&P12 (Type 38)
Optional Digital Component Camera C&P12 (Type 38)
16.6.2.1
16.6.2.1 Technical data
Technical data
Technical data for camera type 38
16.6.3
16.6.3 Digital Component Camera C&P12 (Type 28)
Digital Component Camera C&P12 (Type 28)
16.6.3.1
16.6.3.1 Technical data
Technical data
Technical data for camera type 28

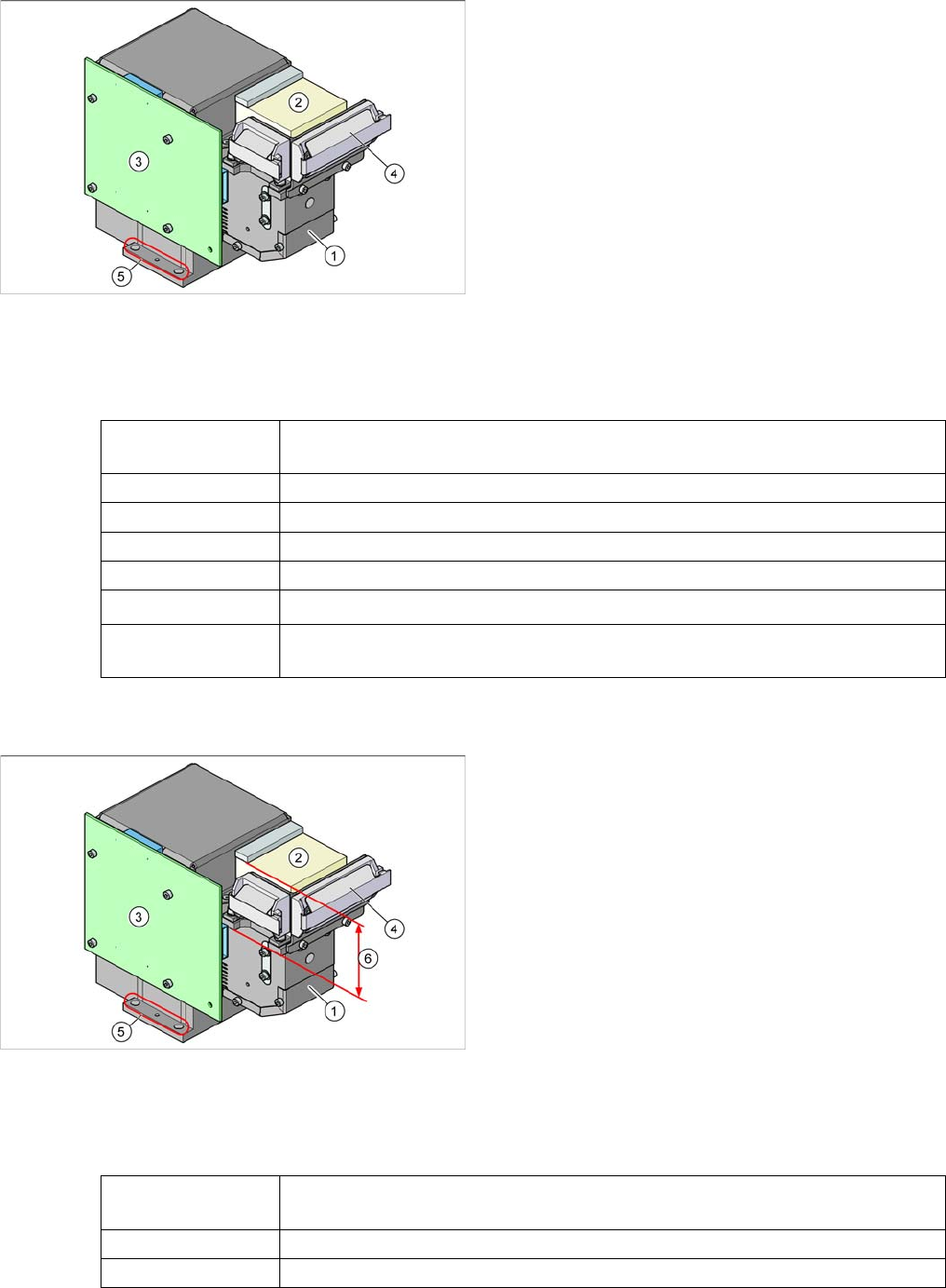

Component camera as option on the C&P12 head
Legend
1. Component camera optics and illumination
2. Camera amplifier
3. Illumination control
4. Flat ribbon cable holder for C&P head leads
5. Camera fixtures
2 x fixture drillings and 1 x centering drilling each on
both sides
The camera type 38 can be recognized by its type label.
Component dimen-
sions
0.2 x 0.1 mm
2
to 16 x 16 mm
2
Component range 0.2 x 0.1 mm² (01005) to PLCC36 (32R)
Min. lead pitch 0,1 mm
Min. ball pitch 0.25 mm
Min. ball diameter 0.14 mm
Field of vision
20.5 x 20.5 mm
2
Method of illumina-
tion
Front lighting (6 programmable options on 4 levels )
Component camera as default on the C&P12 head
Legend
1. Component camera optics and illumination
2. Camera amplifier
3. Illumination control
4. Flat ribbon cable holder for C&P head leads
5. Camera fixtures
2 x fixture drillings and 1 x centering drilling each on
both sides
6. The low construction helps you to differentiate cam-
era type 28 from camera type 29.
Component dimen-
sions
0.5 x 0.5 mm
2
to 18.7 x 18.7 mm
2
Component range 0402 to PLCC44 incl. BGA, µBGA, flip-chip, TSOP, QFP, SO to SO32, DRAM
Min. lead pitch 0.5 mm
16 Annex (FSE)
16.6.4 Component Camera C&P12 (Optional, Type 29) 16.6 SIPLACE Vision - Sensor Overview
Student Guide SIPLACE D-Series (FSE) 283
16.6.4
16.6.4 Component Camera C&P12 (Optional, Type 29)
Component Camera C&P12 (Optional, Type 29)
16.6.4.1
16.6.4.1 Technical data
Technical data
Technical data for camera type 29
Min. ball pitch 0.45 mm
Min. ball diameter 0.25 mm
Field of vision 24.5 x 24.5 mm2
Method of illumina-
tion
Front lighting (6 programmable options on 4 levels )
Component camera as default on the C&P12 head
Legend
1. Component camera optics and illumination
2. Camera amplifier
3. Illumination control
4. Flat ribbon cable holder for C&P head leads
5. Camera fixtures
2 x fixture drillings and 1 x centering drilling each on
both sides
6. The high construction helps you to differentiate cam-
era type 29 from camera type 28.
Component dimen-
sions
0.3 x 0.3 mm
2
to 27 x 27 mm
2
Component range
0201 to 27 x 27 mm
2
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, IC, BGA
Min. lead pitch 0.3 mm
Min. ball pitch
0.25 mm for component < 18 x 18 mm
2
0.35 mm for component ≥ 18 x 18 mm
2
Min. ball diameter
0.14 mm for component < 18 x 18 mm
2
0.2 mm for component ≥ 18 x 18 mm
2
Field of vision
31 x 31 mm
2
Method of illumination Front lighting (6 programmable options on 4 levels )
16 Annex (FSE)
16.6 SIPLACE Vision - Sensor Overview 16.6.5 Component Camera C&P12 (Optional, Type 30)
284 Student Guide SIPLACE D-Series (FSE)
16.6.5
16.6.5 Component Camera C&P12 (Optional, Type 30)
Component Camera C&P12 (Optional, Type 30)
16.6.5.1
16.6.5.1 Technical data
Technical data
Technical data for camera type 30
Component camera as default on the C&P12 head
Legend
1. Component camera optics and illumination
2. Camera amplifier
3. Illumination control
4. Camera fixtures
2 x fixture drillings and 1 x centering drilling each on
both sides
Component dimen-
sions
0.18 x 0.18 mm
2
to 27 x 27 mm
2
Component range
01005 to 27 x 27 mm
2
CHIP, PLCC, SO, QFP, TSDP, SOT, MELF, IC, BGA
Min. lead pitch 0.25 mm
Min. ball pitch
0.25 mm for component < 18 x 18 mm
2
0.35 mm for component ≥ 18 x 18 mm
2
Min. ball diameter
0.14 mm for component < 18 x 18 mm
2
0.2 mm for component ≥ 18 x 18 mm
2
Field of vision
32.7 x 32.7 mm
2
Method of illumination Front lighting (5 programmable options on 5 levels )
