3 Overview 3.4 Assemblies 3.4.4 Pneumatic Unit 36 Student Guide SIPLACE D-Series (FSE) Axis Board A364 D4/D4i axis board 3.4.4 3 . 4 . 4 P n e u m a t ic U n it Pneumatic Unit The pneumatic unit is a fixed installation i…
3 Overview
3.4.3 Axis Unit and Computer Unit 3.4 Assemblies
Student Guide SIPLACE D-Series (FSE) 35
Axis Controller Boards

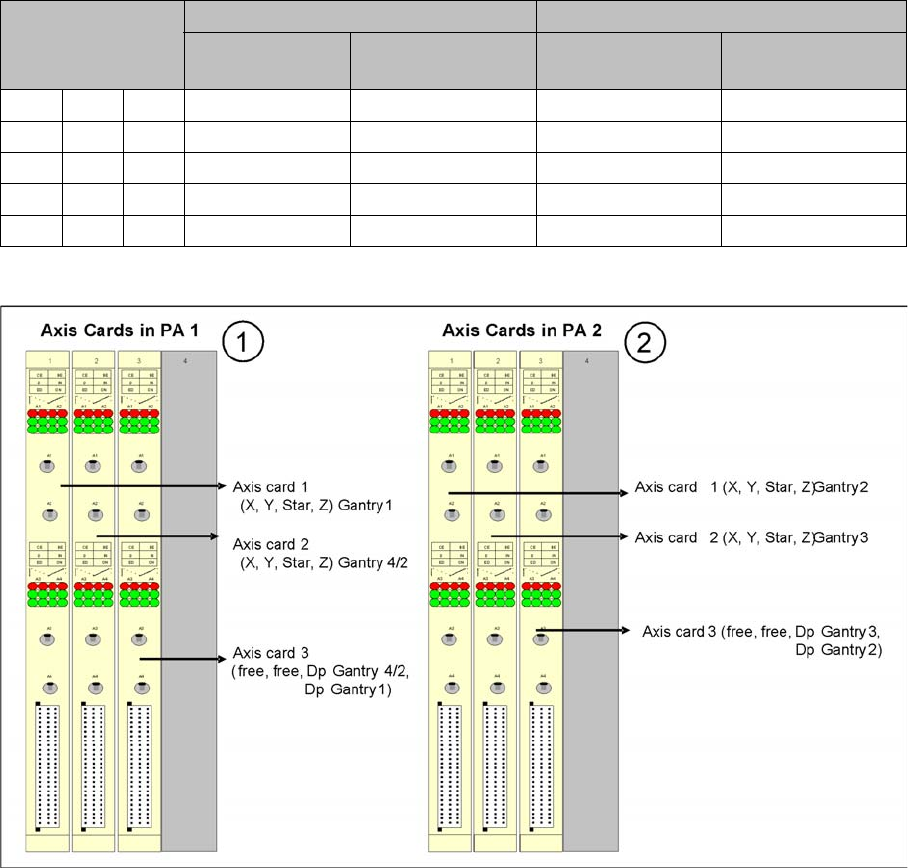

Axis controller boards
Legend
1. Axis controller board in PA1: D2/D2i gantry 1/2
2. Axis controller board in PA2: D3 without gantry 2, often with TWIN ACs at position 2/3
A10 Star 4 Star 3 Star 2 Z-axis 2
A12 Z-axis 4 Z-axis 3 Z-axis 2 --
Y Gantry 4 Gantry 3 Gantry 2 Gantry 2
A14 DP axis G1 DP axis G2 DP axis G1 D axis 2
A16 DP axis G4 DP axis G3 DP axis G2 --
Servo positions for
each level
D4/D4i D2/D2i
C&P type
PA1
C&P type
PA2
C&P type P&P type (next
generation)
3 Overview
3.4 Assemblies 3.4.4 Pneumatic Unit
36 Student Guide SIPLACE D-Series (FSE)
Axis Board A364
D4/D4i axis board
3.4.4
3.4.4 Pneumatic Unit
Pneumatic Unit
The pneumatic unit is a fixed installation inside the machine and is located to the right of the middle sec-
tion of the machine, behind a flap. The pneumatic unit includes all electrical connections for control/reg-
ulation of the compressed air supply.
3.4.4.1
3.4.4.1 D1/D1i/D2/D2i Pneumatic Unit
D1/D1i/D2/D2i Pneumatic Unit
D1/D1i/D2/D2i pneumatic unit
Legend
1. Pneumatic Unit
2. Coupling for compressed air connection
3. Main stop valve
The D1D1i//D2/D2i pneumatic unit is mounted on a com-
pact rack module and is located in the right-hand, middle
section of the machine. The unit is secured by a lockable
door and contains the complete compressed air supply.
In D3 machines, this unit also contains the SMEMA inter-
face (Siemens) to the upstream and downstream sta-
tions.
3 Overview
3.4.5 Gantry 3.4 Assemblies
Student Guide SIPLACE D-Series (FSE) 37
3.4.5
3.4.5 Gantry
Gantry
3.4.5.1
3.4.5.1 General
General
Precise distance measuring systems determine the position of the X and Y axes. This involves the op-
toelectronic detection of marker lines on the incremental scales and the transmission of the track signals
to the axis control point in the control unit.
Direct drive techniques are then used to position the placement heads in the Y direction (in the X direc-
tion also for D3 machines). This prevents the typical frictional loss which occurs when complex drive sys-
tems are used. This solution also avoids the wear and tear which can significantly impair the accuracy
of positioning systems over time.
X-axis drive
With the help of a toothed belt, the rotary movement of the X-axis motor is directly converted into a
lengthwise movement of the placement head, in the X-direction.
Y-axis drive
A linear motor moves the placement head lengthwise, in the Y direction.
Machine gantries
Legend
1. Gantry 1
2. Gantry 2
3. Gantry 3
4. Gantry 4
The D4/D4i placement machine is equipped with four
gantries. These are used to accurately and independent-
ly position the four C&P heads in the X and Y directions.
Due to their construction, the gantries are resistant to
buckling. The precise mechanical guidance of the axes is
achieved with the aid of ball bearing units.
