4 Communication and Control
4.3 CAN Bus 4.3.7 File Name Codes for Downloading
68 Student Guide SIPLACE D-Series (FSE)
E01xxxxx.bh
x
I/O assemblies HF/X/D3
E02xxxxx.bh
x
I/O assemblies D4/D4i/D2/D2i/D1/D1i
F0100200.bh
x
F means axis controller FREE axis
G0100201.bh
x
G means tape cutter
G01xxxxx.bh
x
Tape cutter (01 HS-/D4/D4i machine)
G02xxxxx.bh
x
Tape cutter (02 for HF/ X/D1-D3 /D1i/D2i machine)
G03xxxxx.bh
x
Tape cutter (03 for tape cutter modules with NC connection /
downwards compatibility) (only for X machines)
H0100201.bh
x
H means head processor C&P20
I0100200.bhx I means TWIN Head (main board on segment)
I01xxxxx.bhx TWIN head on X machine
I02xxxxx.bhx TWIN segment on D1/D1i machine
J0100200.bh
x
* J means D-axes C&P20
K0300101.he
x
K means C&P12/6 head CAN controller
K01xxxxx.he
x
K02xxxxx.he
x
C&P12/6 on base. Head board S/F machine
K03xxxxx.he
x
C&P12/6 on base. Head board HS machine
K04xxxxx.he
x
C&P12/6 on modular head board HS/S/F machine
K05xxxxx.he
x
C&P12/6 on HF machines with 8 bit CAN controller
K06xxxxx.he
x
C&P12/6 on HF/X machines with 16 bit CAN controller
K07xxxxx.he
x
C&P12/6 +TWIN Head D1/D1i/D2/D2i/D4/D4i
L0300101.he
x
L: digital pressure control valve
L0200101.he
x
02 Pressure control valve with analog controller
L0300101.he
x
03 Pressure control valve with digital controller
M0200200.b
hx
M means CAN controller on MTC (02 MTC2)
P0100208.bh
x
P means axis controller Z-axis TWIN
File name Other descrip-
tion
HW components as letters
HW version details
4 Communication and Control
4.3.7 File Name Codes for Downloading 4.3 CAN Bus
Student Guide SIPLACE D-Series (FSE) 69
*
Only for X machines equipped with C&P20 head
R0100208.bh
x
R means axis controller D-axis TWIN
S0100208.bh
x
S means star axis C&P12/6
T0100302.he
x
T means conveyor control (note the HW version)
T01xxxxx.he
x
Conveyor HS 50 with TSP 100 control
T02xxxxx.he
x
Conveyor HS 50 with TSP 200 control
T03xxxxx.he
x
Conveyor control S25HM/F5HM
T04xxxxx.he
x
Conveyor control S27/D1/2/D1i/2i with TSP 201
T05xxxxx.he
x
Conveyor control HS 60/D4/D4i with TSP301
T06xxxxx.he
x
Conveyor control X-machines/D3 with TSP 301
U…… U …. 2nd download level creates a 2nd letter in name.
UA100208.b
hx
A .1.02.08 UA means X-feeder controller SW
UB0100208.
bhx
B .1.02.09 UB means X adapter for special feeders on X tables
V0500208.bh
x
V means Vision controller subboards for head and stationary cameras
V01… V04 ... Integrated in K01 to K04xxxxx.bhx (8 bit CAN controller)
V0500208.bh
x
Vision CAN controller for head and stationary cameras since HF
machines
W0100208.b
hx
* W
means Z-axis C&P20
X0100208.bh
x
X means X-axes
Y0100208.bh
x
Y means Y-axes
Z0100208.bh
x
Z means Z-axes C&P12/6
File name Other descrip-
tion
HW components as letters
HW version details
4 Communication and Control
4.3 CAN Bus 4.3.8 Communication Siplace Vision
70 Student Guide SIPLACE D-Series (FSE)
4.3.8
4.3.8 Communication Siplace Vision
Communication Siplace Vision

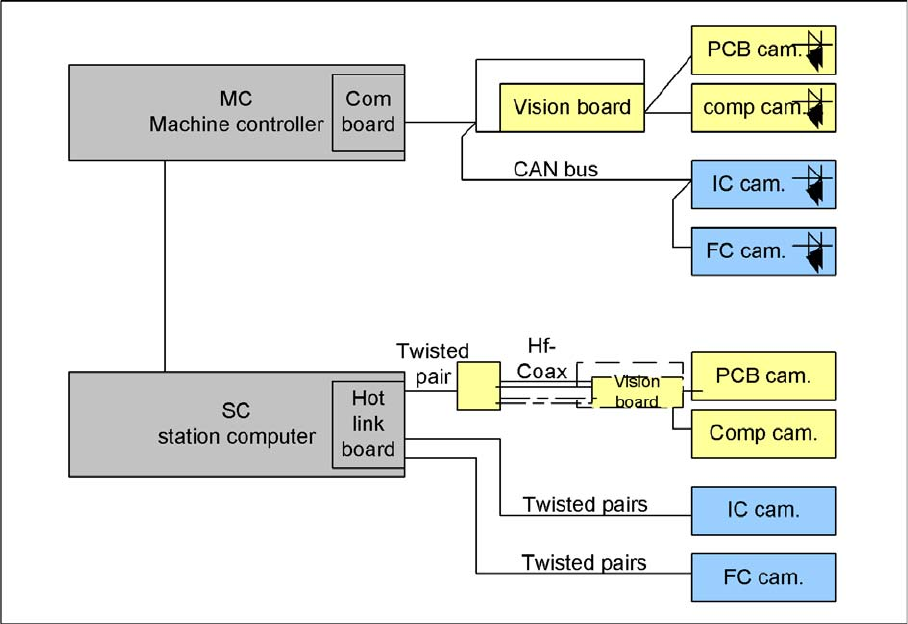

Overview Siplace Vision
The communication between the computers is carried out via LAN cables. The MC sends the commands
for the image acquisition to the vision computer and receives the result of the measuring. The MC also
sends the illumination values for the corresponding CSs. The pictures taken are sent digitally via the Hot
link card to the Vision task of the station computer, where they are evaluated. The result of this evalua-
tion (X/Y angle coordinates, good/bad state) is sent to the MC.
