5 Energy and Compressed Air Supply 5.3 Pneumatic System 5.3.3 Pneumatic Unit 92 Student Guide SIPLACE D-Series (FSE) 5.3.3.3 5 . 3 . 3 . 3 S w it c h O N S e q u e n c e f o r P n e u m a t ic U n it s Switch ON Sequence…
5 Energy and Compressed Air Supply
5.3.3 Pneumatic Unit 5.3 Pneumatic System
Student Guide SIPLACE D-Series (FSE) 91
Pneumatic Unit Manometer
Supply pressure
5.3.3.2
5.3.3.2 Compressed Air Distributor Block
Compressed Air Distributor Block
The pneumatic unit is used to prepare and distribute the compressed air required in the machine. The
pressure at the compressed air connection must be at least 5.5 bar.
The following pneumatic circuits are supplied with compressed air via the distributor block:

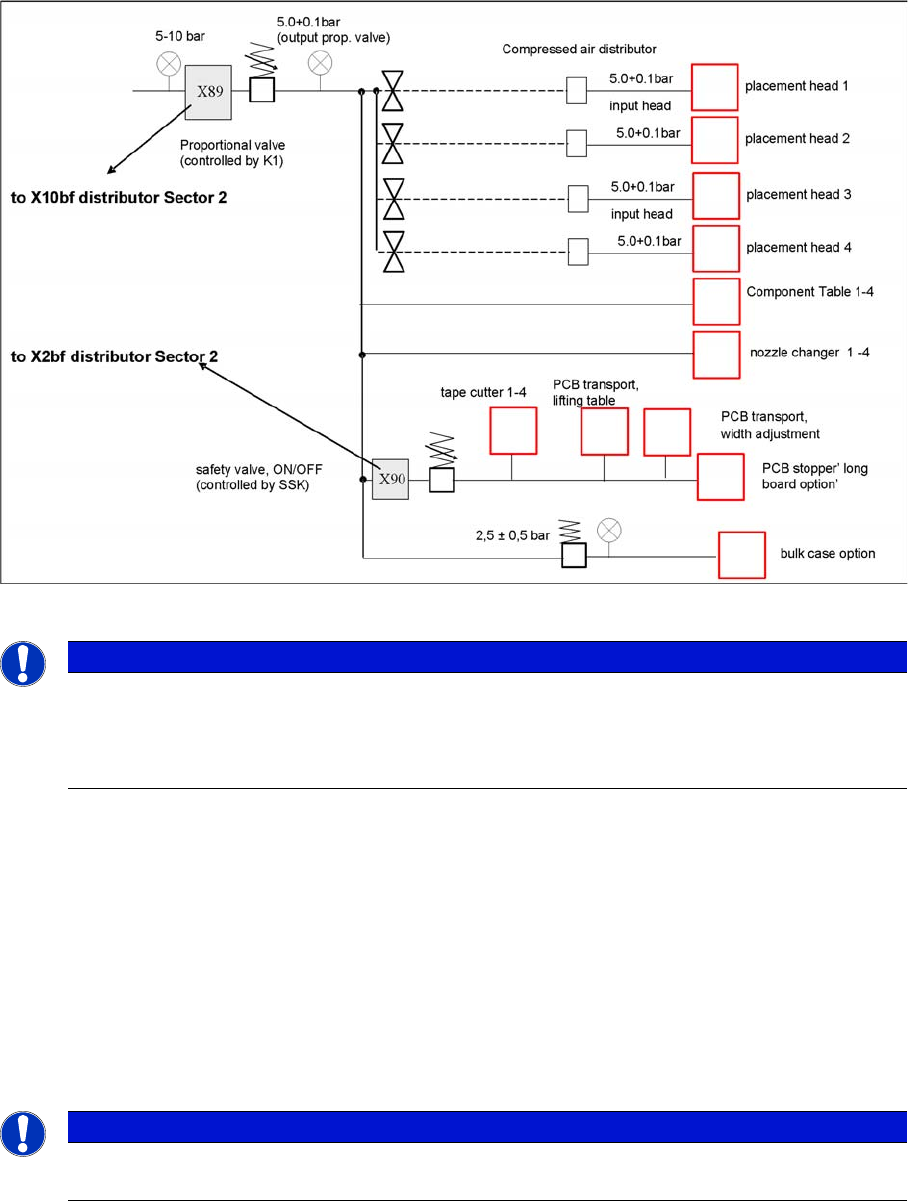

Overview of compressed air supply

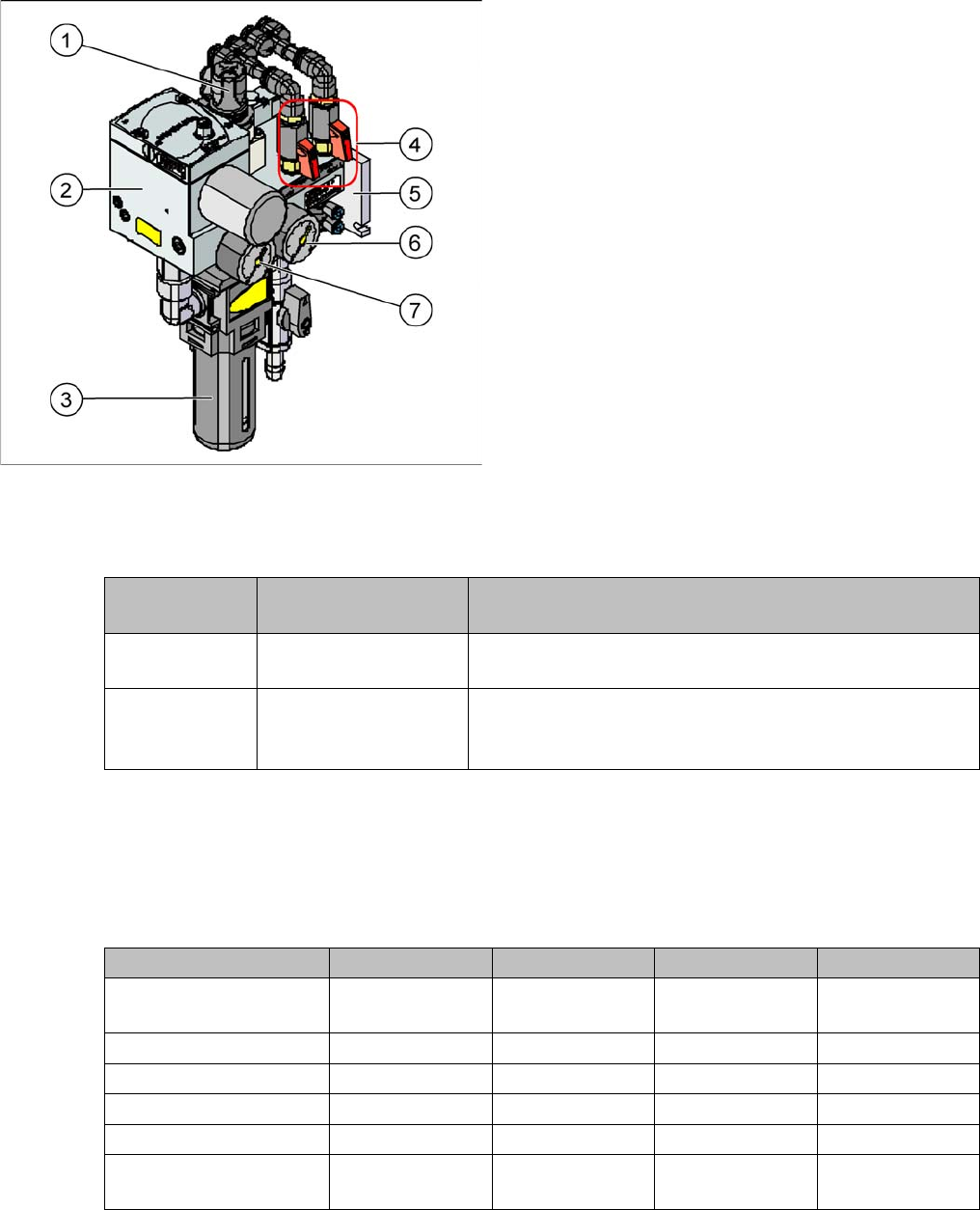

Pneumatic unit (D1/D2/D1i/D2i)
Legend
1. Manual pressure regulator for setting the bulkcase
feeder pressure
2. Centronic flange – electronic pressure control valve
3. Compressed air filter
4. Pressure shutoff taps for gantry(ies)
5. Fixtures for pneumatic unit
6. Manometer – bulkcase feeder
7. Manometer – regulated pressure
Manometer /
Pos. No.
Target pressure Description
(6) 2.5 bar (+/- 0.5 bar)
(manually set)
For bulkcase, nozzle changer C&P6/12
(7) 5.1 (+/0.1 bar)
(electronically regulat-
ed)
For cutters, conveyor, changeover tables
For gantries (vacuum for C&P head and TWIN Head)
D4/D4i D3 D2/D2i D1/D1i
Gantries Vacuum gener-
ation Placement heads
5.1 +/-0.1 bar 4.5 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar
Conveyor system 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar
Tape cutter 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar
Nozzle changer 5.1 +/-0.1 bar 2.5 +/-0.1 bar 2.5 +/-0.1 bar 2.5 +/-0.1 bar
Feed-in units 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar 5.1 +/-0.1 bar
Bulkcase feeder Manually set 2.5
bar
Manually set 2.5
bar
Manually set 2.5
bar
Manually set 2.5
bar
5 Energy and Compressed Air Supply
5.3 Pneumatic System 5.3.3 Pneumatic Unit
92 Student Guide SIPLACE D-Series (FSE)
5.3.3.3
5.3.3.3 Switch ON Sequence for Pneumatic Units
Switch ON Sequence for Pneumatic Units
Switch ON sequence for pneumatic units (example: D4/D4i)
The time for deactivation of the proportionate valve can be changed in the station software.
▪ Settings
▪ Configure compressed air
▪ switch off after 1-60 minutes
5.3.3.4
5.3.3.4 Main Valve X89 for Regulation of Compressed Air
Main Valve X89 for Regulation of Compressed Air
After switching on the machine via the main switch, the valve is opened and compressed air flows into
the system. Opening covers, for example, has no effect on the air supply. However, if the 24 V voltage
supply fails or if the machine is switched off, the valve will close and the machine components will no
longer be supplied with compressed air. The valve is regulated via a pressure sensor. If the pressure
falls below 5.0 bar, the CAN bus will issue a signal.
NOTICE
Cause of Hazard
The proportional valve X89 is enabled as soon as the machine is switched on. After performing
the reference run, the proportionate valve X89 can be switched off via the software (2 minutes
as a default).
NOTICE
This main pressure regulator can be damaged if the machine is turned on without compressed
air supplied. Therefore if the compressed air supply fails, turn of the machine.
5 Energy and Compressed Air Supply
5.3.3 Pneumatic Unit 5.3 Pneumatic System
Student Guide SIPLACE D-Series (FSE) 93
5.3.3.5
5.3.3.5 Monitoring the Compressed Air

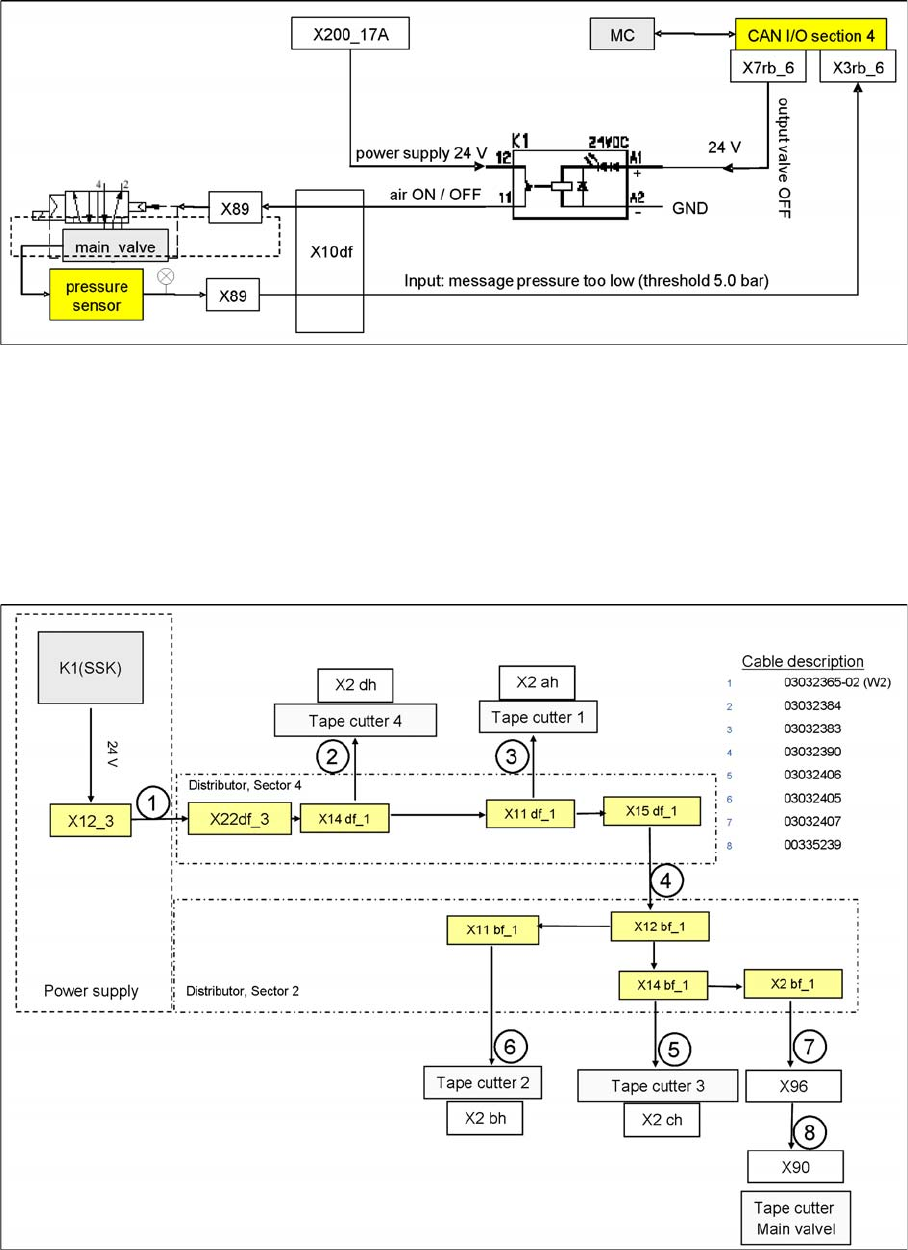

Monitoring the Compressed Air
When switching the machine on at the main switch, air is supplied to all placement heads.
After completing the reference run, the supply of compressed air can be switched off by the software
(after a standard period of 2 minutes) via relay K1 in sector 2. Compressed air will cease to flow through
the placement head vacuum system.
The compressed air is regulated via the proportional valve X89 to 5.0 +0.1 bar at the placement head.
Included within this regulator block is a pressure sensor which monitors the outgoing air pressure. If the
pressure falls below 5.0 bar, the CAN bus will issue a signal.
5.3.3.6
5.3.3.6 Safety Valve X90
Safety Valve X90
Safety valve tape cutter
Safety valve for controlling the compressed air for transport and tape cutter. Air supply for transport and
tape cutter is only present, after the start button is pressed and all safety requirements are fulfilled (safety
loop closed).
