A-104 A27-2 【 RX-7R 】ノズルチェンジャー 【 RX-7R 】 Nozzle changer ２６ ３１ ３２ ３３ ４１ ４４ ４３ ４５ ４６ ３９ ３９ ４２ ４２ ４０ ４０ ４８ ４８ ４７ ４７ ４１ １ ２５ ２５ ２４ ２３ ２４ ２２ ２ ２ ４ ６ １９ １７ ２１ ２０ ３４ １８ ９ ５ １０ ３５ １５ ３０ ２７ １５ ７ ８ １２ １１ １６ １４ ２０ ３５ １３ ２３ ２９ ３ ２３ …
A-103
A27-1
【RX-7】ノズルチェンジャー
【RX-7】Nozzle changer
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-454-437-02 BRACKET CHANGER
ﾁｴﾝｼﾞﾔ- ﾌﾞﾗｹﾂﾄ
2
2 EZ4-457-032-02 CHANGER (B) BLOCK
ﾌﾞﾛﾂｸ ﾁｴﾝｼﾞﾔ- (B)
2
3 EZ4-457-031-03 CHANGER (A) BLOCK
ﾌﾞﾛﾂｸ ﾁｴﾝｼﾞﾔ- (A)
2
4 EZ4-454-407-02 BASE CHANGER
ﾁｴﾝｼﾞﾔ- ﾍﾞ-ｽ
4
5 EZ4-454-413-01 BLOCK (DR), FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (DR)
4
6 EZ4-454-438-01 PIN, PUSH
ｵｼ ﾋﾟﾝ
8
7 EZ4-454-406-02 JOINT FLOATING
ﾌﾛ-ﾃｲﾝｸﾞ ｼﾞﾖｲﾝﾄ
4
8 EZ4-454-412-01 BLOCK (DL), FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (DL)
4
9 EZ4-454-549-11 PIN (B3X14) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X14)
4
10 EZ4-454-549-41 PIN (B3X28), PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X28)
8
11 EZ4-453-817-01 CYLINDER (SMG-L-10-10)
ｼﾘﾝﾀﾞ (SMG-L-10-10)
4
12 EZ4-455-734-01 UNION (KJL02-M5), ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KJL02-M5)
8
13 EZ4-722-778-01 GUIDE (C/V CLAMP), LM
LM ｶﾞｲﾄﾞ (C/V ｸﾗﾝﾌﾟ)
4
14 EZ4-454-414-02 PLATE SLIDE
ｽﾗｲﾄﾞ ﾌﾟﾚ-ﾄ
4
15 EZ4-454-405-03 JOINT SLIDE
ｽﾗｲﾄﾞ ｼﾞﾖｲﾝﾄ
4
16 EZ4-454-435-01 JOINT, CYLINDER
ｼﾘﾝﾀﾞ ｼﾞﾖｲﾝﾄ
4
17 EZ4-487-221-01 CHANGER (C) BLOCK
ﾌﾞﾛﾂｸ ﾁｴﾝｼﾞﾔ- (C)
2
18 EZ4-454-546-01 BOLT (SUB-M4X20), STOPPER
ｽﾄﾂﾊﾟ ﾎﾞﾙﾄ (SUB-4MX20)
4
19 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
24
20 EZ7-683-402-04 BOLT,HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
16
21 EZ7-683-408-04 BOLT,HEXAGON SOCKET 3X16
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X16
8
22 EZ4-293-429-01 PIN (DIA. 3X5), PARALLEL
ﾍｲｺｳ ﾋﾟﾝ(ﾌｱｲ 3X5)
32
23 EZ7-682-247-09 SCREW +K 3X6
SCREW +K 3X6
8
24 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
16
25 EZ4-454-764-01 SPRING (WL5-15), COMPRESSION
ｱﾂｼﾕｸ ﾊﾞﾈ (WL5-15)
8
26 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
12
27 EZ1-492-221-12 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 1)
1
28 EZ1-492-221-22 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 2)
1
29 EZ1-492-221-32 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 3)
1
30 EZ1-492-221-42 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 4)
1
31 EZ4-455-782-21 LOW HEAD BOLT (CBSA3-8)
ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSA3-8)
4
32 EZA-192-291-5A CARTRIDGE (S16) ASSY
ｶ-ﾄﾘﾂｼﾞ (S16) ｸﾐ
4
33 EZ4-454-432-01 HOOK (DIA.4), SPRING
ﾊﾞﾈ ｶｹ (ﾌｱｲ 4)
(2)
34 EZ4-454-411-02 BLOCK (UR) FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (UR)
(1)
35 EZ3-703-359-01 PIN PARALLEL (DIA. 2.5X5)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 2.5X5)
(2)
36 EZ4-454-410-02 BLOCK (UL) FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (UL)
(1)
37 EZ4-454-409-02 SHUTTER (SUS304)
ｼﾔﾂﾀ- (SUS304)
(1)
38 401-53419 CHANGER_COLLAR
ﾁｪﾝｼﾞｬｰｶﾗｰ
(3)
39 EZ4-453-818-01 BOLT (CBSTSR3-5)
ﾁﾖｳ ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTSR3-5)
(9)
40 EZ4-454-441-03 PLATE SHUTTER
ｼﾔﾂﾀ- ﾌﾟﾚ-ﾄ
(1)
41 EZ4-454-430-02 JOINT (HOLE SMALL) SHUTTER
ｼﾔﾂﾀ- ｼﾞﾖｲﾝﾄ (ｱﾅ ｼｮｳ)
(1)
42 EZ4-454-549-01 PIN (B3X8) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X8)
(1)
43 EZ7-683-406-04 BOLT,HEXAGON SOCKET 3X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12
(4)
44 EZA-198-973-2A CARTRIDGE MAIN ASSY
ｶ-ﾄﾘﾂｼﾞ ﾎﾝﾀｲ ｸﾐ
(1)
45 401-53417 CARTRIGE(PLATE)
ｶｰﾄﾘｯｼﾞ
(1)
46 401-53418 CARTRIGE(SOLID)
ｶｰﾄﾘｯｼﾞ
(1)
47 EZ2-919-160-01 PIN (B2X6 SUS)
ﾍｲｺｳ ﾋﾟﾝ (B2X6 SUS)
(4)
48 EZ4-454-434-01 PIECE, RESIN
ｼﾞﾕｼ ﾋﾟ-ｽ
(2)
49 EZ4-454-431-02 PIECE (SQUARE), RESIN
ｼﾞﾕｼ ﾋﾟ-ｽ (ｼｶｸ)
(4)
50 EZ4-454-547-01 SPRING (AWS5-25) EXTENSION
ﾋﾂﾊﾟﾘ ﾊﾞﾈ (AWS5-25)
(1)
51 EZ4-701-529-01 TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
8
52 EZA-193-302-0A CARTRIDGE (S16) UNIT NOZZLE
ﾉｽﾞﾙ ｶ-ﾄﾘﾂｼﾞ (S16) ﾕﾆｯﾄ
4
保守用
53 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
12
54 EZ4-454-440-02 RETAINER SPRING
ﾊﾞﾈ ｵｻｴ
4
55 EZ3-282-481-01 BOLT(CBSA3-5)
ｺﾞｸﾃｲﾄｳ ﾎﾞﾙﾄ(CBSA3-5)
8

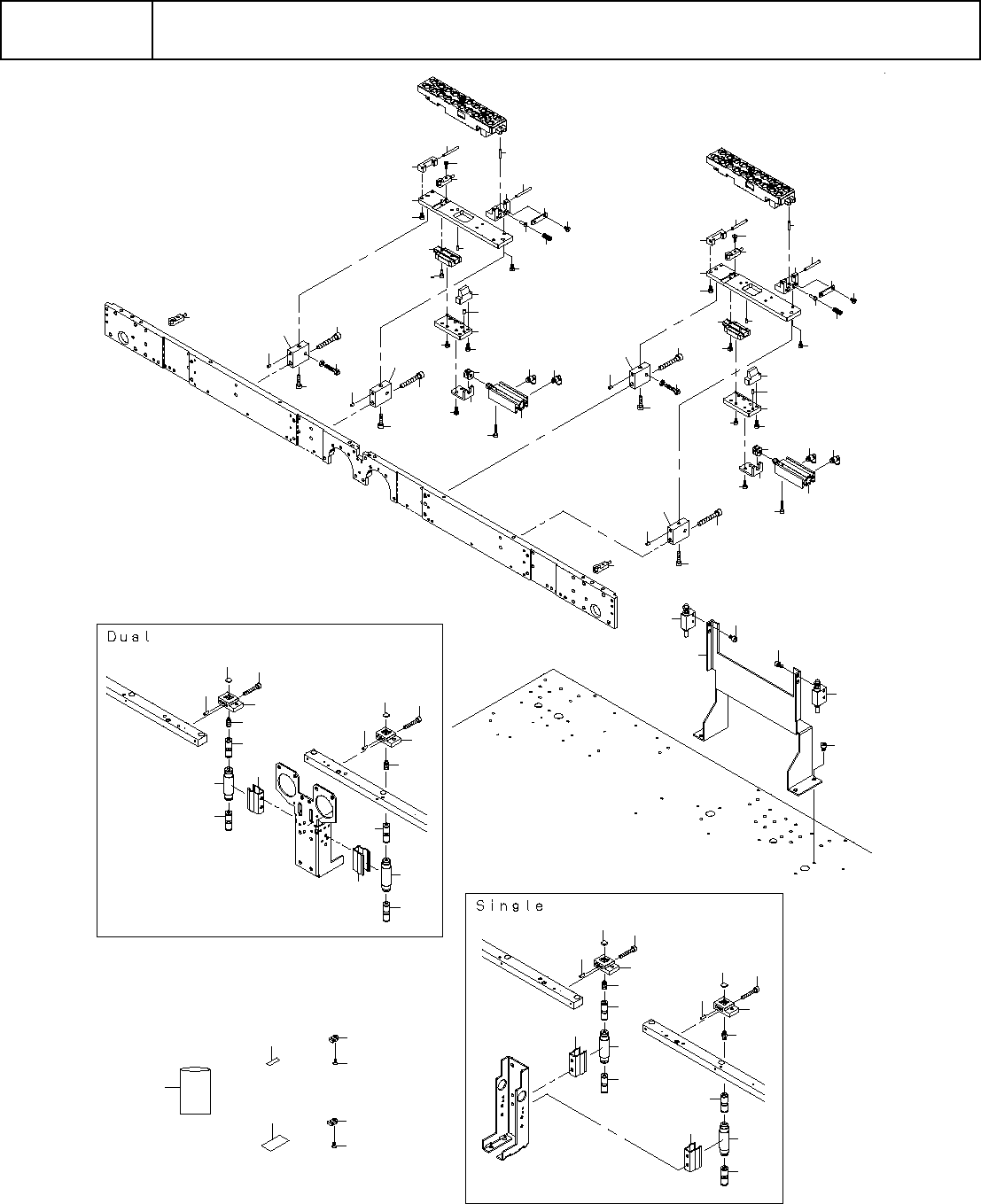

A-104
A27-2
【RX-7R】ノズルチェンジャー
【RX-7R】Nozzle changer
２６
３１ ３２
３３
４１
４４
４３
４５
４６
３９
３９
４２
４２
４０
４０
４８
４８
４７
４７
４１
１
２５
２５
２４
２３
２４
２２
２
２
４
６
１９
１７
２１
２０
３４
１８
９
５
１０
３５
１５
３０
２７
１５
７
８
１２
１１
１６
１４
２０
３５
１３
２３
２９
３
２３
１３
３５
２０
１４
１６
１１
１２
８
７
１５
２８
３０
１５
３５
１０
５
９
１８
３４
２０
２１
１７
１７
１９
６
４
２
２
２４
２３
２４
２５
２５
１
４１
４６
４１
３８
１７
２２
３
２２
２２
３７
４２
３９
３８
４７
４１
４８
４０
４６
４１
４２
３８
４１
４６
４１
４７
４８
４０
３９
３８
３６
３５
５０
４９
３５
３４
A-105
A27-2
【RX-7R】ノズルチェンジャー
【RX-7R】Nozzle changer
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ3-282-481-01 BOLT (CBSA3-5)
ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSA3-5)
4
2 EZ4-293-429-01 PIN (DIA. 3X5) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ(ﾌｱｲ 3X5)
4
3 EZ4-453-817-01 CYLINDER (SMG-L-10-10)
ｼﾘﾝﾀﾞ (SMG-L-10-10)
2
4 EZ4-454-405-03 JOINT SLIDE
ｽﾗｲﾄﾞ ｼﾞﾖｲﾝﾄ
2
5 EZ4-454-406-02 JOINT FLOATING
ﾌﾛ-ﾃｲﾝｸﾞ ｼﾞﾖｲﾝﾄ
2
6 402-01197 PLATE_CHANGER BASE
ﾁｪﾝｼﾞｬｰﾍﾞｰｽﾌﾟﾚｰﾄ
2
7 EZ4-454-412-01 BLOCK (DL) FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (DL)
2
8 EZ4-454-413-01 BLOCK (DR) FIXED
ｺﾃｲ ﾌﾞﾛﾂｸ (DR)
2
9 EZ4-454-414-02 PLATE SLIDE
ｽﾗｲﾄﾞ ﾌﾟﾚ-ﾄ
2
10 EZ4-454-435-01 JOINT CYLINDER
ｼﾘﾝﾀﾞ ｼﾞﾖｲﾝﾄ
2
11 EZ4-454-438-01 PIN PUSH
ｵｼ ﾋﾟﾝ
4
12 EZ4-454-440-02 RETAINER SPRING
ﾊﾞﾈ ｵｻｴ
2
13 EZ4-454-546-01 BOLT (SUB-M4X20) STOPPER
ｽﾄﾂﾊﾟ ﾎﾞﾙﾄ (SUB-4MX20)
2
14 EZ4-454-549-11 PIN (B3X14) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X14)
2
15 EZ4-454-549-41 PIN (B3X28) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X28)
4
16 EZ4-454-764-01 SPRING (WL5-15) COMPRESSION
ｱﾂｼﾕｸ ﾊﾞﾈ (WL5-15)
4
17 EZ4-455-734-01 UNION (KJL02-M5) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KJL02-M5)
4
18 EZ4-722-778-01 GUIDE (C/V CLAMP) LM
LM ｶﾞｲﾄﾞ (C/V ｸﾗﾝﾌﾟ)
2
19 EZ7-683-402-04 BOLT HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
8
20 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
8
21 EZ7-683-408-04 BOLT HEXAGON SOCKET 3X16
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X16
4
22 402-01196 PLATE_T/C SUPPORT
ﾂｰﾙﾁｪﾝｼﾞｻﾎﾟｰﾄﾌﾟﾚｰﾄ
4
23 SM-6053502-TN SCREW M5 L=35
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M5 L=35
4
24 SM-6041602-TN SCREW M4X16
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X16
4
25 PH-0300062-C0 PARALLEL PIN TYPE B 3X6
平行ﾋﾟﾝ B 種 3X6
4
26 EZ1-492-221-12 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 1)
1
27 EZ1-492-221-22 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 2)
1
28 EZ1-492-221-32 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 3)
1
29 EZ1-492-221-42 SENSOR ASSY
ｾﾝｻ ASSY (ｶ-ﾄﾘﾂｼﾞｱﾘﾅｼ 4)
1
30 EZ4-455-782-21 LOW HEAD BOLT (CBSA3-8)
ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSA3-8)
2
31 EZ4-722-956-01 LABEL(SILVER) BLANK
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10)
2
32 EZ4-701-529-01 TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
2
33 EZ7-682-249-09 SCREW +K 3X10
ﾈｼﾞ +K 3X10
2
34 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
4
35 SM-6040602-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
4
36 402-05863 TOUCH SWITCH BRACKET
ﾀｯﾁｽｲｯﾁﾌﾞﾗｹｯﾄ
1
37 EZ3-207-605-01 RECYCLED PE-BAG STD 50X75
ｻｲｾｲ ﾋﾖｳｼﾞﾕﾝ ﾎﾟﾘﾌﾞｸﾛ 50X75
2
38 EZ4-454-520-01 HOLDER (VUK05) FIXED
ｺﾃｲﾖｳ ﾎﾙﾀﾞ (VUK05)
2
39 PH-0300104-S0 PARALLEL PIN TYPE B 3X10
平行ﾋﾟﾝ B 種 3X10
2
40 EZ4-455-731-01 UNION (KJH02-M3) HALF
ﾊ-ﾌ ﾕﾆｵﾝ (KJH02-M3)
2
41 EZ4-455-732-01 STRAIGHT (KJH02-04)
ｲｹｲ ｽﾄﾚ-ﾄ (KJH02-04)
4
42 EZ4-461-299-01 GLASS CHIP (7X7)
ｶﾞﾗｽ ﾁﾂﾌﾟ (7X7)
2
43 EZ4-701-529-01 TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
2
44 EZ7-632-455-01 TAPE CELLOPHAN(18MM#35M) NO.29
ｾﾛﾊﾝ ﾃ-ﾌﾟ (18MM#35M) NO.29
0.08
45 EZ7-682-247-09 SCREW +K 3X6
SCREW +K 3X6
2
46 401-58139 V
ﾊﾞｷｭｰﾑ(VSU-H05-44S)
2
47 402-01506 BLOCK(2)_TOOL CHIP
ｼﾞｸﾞﾁｯﾌﾟﾌﾞﾛｯｸ(2)
2
48 SM-6042502-TN SCREW M4X0.7 L=25
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=25
4
49 EZ1-492-252-12 SENSOR ASSY
ｾﾝｻ ASSY (ﾀﾂﾁ ｽｲﾂﾁ L)
1
50 EZ1-492-253-12 SENSOR ASSY
ｾﾝｻ ASSY (ﾀﾂﾁ ｽｲﾂﾁ R)
1
