A-125
A31-2

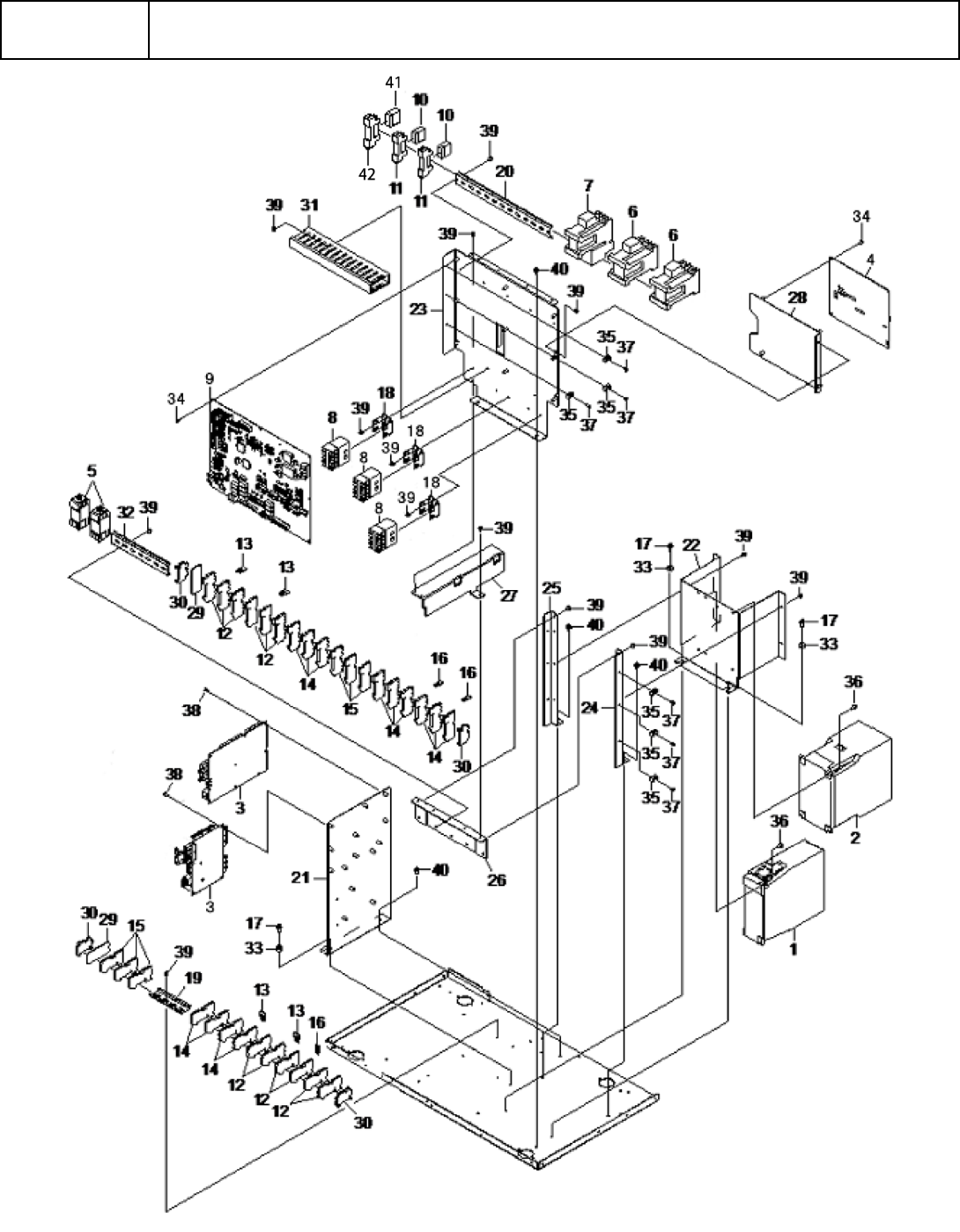

【RX-7R】電装 BOX-2
【RX-7R】Electrical box - 2
A-126
A31-2
【RX-7R】電装 BOX-2
【RX-7R】Electrical box - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-145-11 AMPLIFIER, SERVO(MR-J4W2-22B-MK019) ｻ-ﾎﾞ ｱﾝﾌﾟ (MR-J4W2-22B-MK019) 1
2 401-58294 SERVO AMPLIFIER ｻｰﾎﾞｱﾝﾌﾟ 1
3 EZ1-492-147-11 AMPLIFIER, SERVO(MR-MD202-S016) ｻ-ﾎﾞ ｱﾝﾌﾟ (MR-MD202-S016) 2
4 401-46484 CAN ADDA PCB ASM CAN ADDA 基板組 2
5 EZ1-492-162-15 AMPLIFIER ASSY SENSOR ｾﾝｻ ｱﾝﾌﾟ ASSY (ZX2-LDA11) 2
6 HA-0068700-00 MAGNETIC CONTACTOR
電磁開閉器
2
7 HA-0061900-00 MAGNETIC CONTACTOR 電磁開閉器 1
8 HB-0012800-0C RELAY ﾘﾚｰ 3
9 401-46460 SDIO CONT PCB ASM SDIO CONT 基板組 2
10 EZ1-755-690-11 RELAY, POWER (RJ1S-CLD-D24) RELAY, POWER (RJ1S-CLD-D24) 2
11 EZ1-755-691-11 SOCKET, RELAY (SJ1S-05B) SOCKET, RELAY (SJ1S-05B) 2
12 EZ1-854-018-12 TERMINAL BLOCK(PT2, 5-QUATTRO BU)
ﾀﾝｼ ﾀﾞｲ (PT2, 5-QUATTRO BU)
12
13 HK-0696900-30 BLOCK TERMINAL ﾌﾞﾛｯｸ ﾀｰﾐﾅﾙ 4
14 EZ1-854-025-12 TERMINAL BLOCK(PT2, 5-QUATTRO) ﾀﾝｼﾀﾞｲ (PT2, 5-QUATTRO) 13
15 EZ1-854-026-12 TERMINAL BLOCK(PT2, 5-QUATTRO-PE) ﾀﾝｼﾀﾞｲ (PT2, 5-QUATTRO-PE) 6
16 HK-0696900-20 BLOCK TERMINAL ﾌﾞﾛｯｸ ﾀｰﾐﾅﾙ 3
17 EZ2-580-608-01 SCREW, +PSW M5X16 SCREW, +PSW M5X16 3
18 HB-0005800-10 RELAY
ﾘﾚｰ ﾄﾒｶﾅｸﾞ
3
19 EZ4-453-715-01 RAIL (NS35/7,5PERF100MM/Z),DIN DIN ﾚ-ﾙ (NS35/7,5PERF100MM/Z) 1
20 EZ4-453-718-01 RAIL (NS35/7,5PERF300MM/Z),DIN DIN ﾚ-ﾙ (NS35/7,5PERF300MM/Z) 1
21 401-58134 BRACKET AMPLIFIER FITTING ﾀｼﾞｸ ｱﾝﾌﾟ ﾄﾘﾂｹ ﾌﾞﾗｹｯﾄ 1
22 EZ4-453-738-02 BRACKET (Y, X), PACK FITTING ｻ-ﾎﾞ ﾊﾟﾂｸ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ (Y, X) 1
23 EZ4-453-739-05 BRACKET, PC BOARD FITTING ｾｲｷﾞﾖ ｷﾊﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ 1
24 EZ4-453-740-01 BRACKET (L), DIN RAIL FIXED
DIN ﾚ-ﾙ ｺﾃｲ ﾌﾞﾗｹﾂﾄ L
1
25 EZ4-453-741-01 BRACKET (R), DIN RAIL FIXED DIN ﾚ-ﾙ ｺﾃｲ ﾌﾞﾗｹﾂﾄ R 1
26 EZ4-453-742-02 BRACKET, DIN RAIL (REAR) DIN ﾚ-ﾙ ｳﾗ ﾌﾞﾗｹﾂﾄ 1
27 EZ4-453-743-01 BRACKET, FIXED REINFORCEMENT DIN ﾚ-ﾙ ｺﾃｲ ﾎｷﾖｳ ﾌﾞﾗｹﾂﾄ ENT 1
28 402-11131 ADDA_PCB_BRACKET ADDA 基板ﾌﾞﾗｹｯﾄ 1
29 EZ4-453-765-01 PLATE (D-ST2.5-QUATTRO) ｼﾕｳﾀﾝﾊﾞﾝ (D-ST2.5-QUATTRO) 2
30 EZ4-453-766-01 STOPPER (CLIPFIX 35-5)
ｼﾕｳﾀﾝ ﾄﾞﾒ (CLIPFIX 35-5)
4
31 EZ4-453-970-01 DUCT (AD-262), WIRING ﾊｲｾﾝ ﾀﾞｸﾄ (AD-262 ｾﾞﾝﾁﾖｳ 1M) 1
32 EZ4-455-723-01 RAIL, DIN(NS35/7, 5PERF180MM/Z) DIN ﾚ-ﾙ (NS35/7, 5PERF180MM/Z) 1
33 EZ4-459-135-01 COLLAR(CLJGJ14-5-6-TC2) ｼﾞﾕｼ ｶﾗ- (CLJGJ14-5-6-TC2) 3
34 EZ7-682-948-01 SCREW +PSW 3X8 SCREW +PSW 3X8 5
35 EZ4-706-151-11 CLAMP (KR5G5) ﾊｲｾﾝﾄﾞﾒ (KR5G5) 6
36 EZ7-628-000-07 SCREW +PSW M5X12
+PSW M5X12
6
37 EZ7-682-160-01 SCREW +P 4X6 +P 4X6 10
38 EZ7-682-161-01 SCREW +P 4X8 +P 4X8 14
39 EZ7-682-961-01 SCREW +PSW 4X8 +PSW 4X8 26
40 EZ7-682-973-11 SCREW +PSW 5X10 +PSW 5X10 5
41 EZ1-755-544-11 RELAY (RU2S-D-D24) ﾘﾚ- (RU2S-D-D24) 1
42 EZ1-755-545-11 SOCKET RELAY (SM2S-05B)
ﾘﾚ- ｿｹﾂﾄ (SM2S-05B)
1
A-127
A32-1

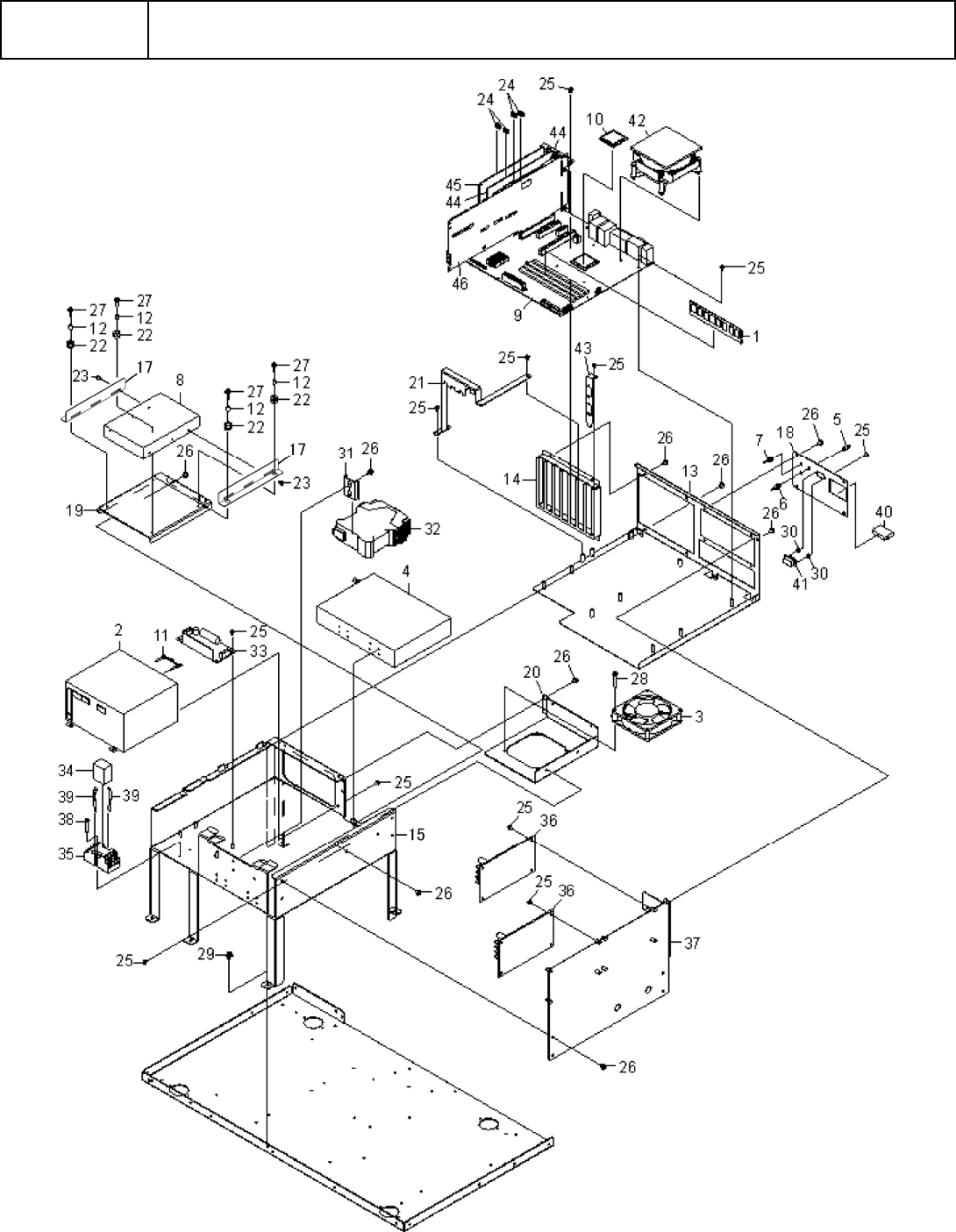

【RX-7】PC UNIT
