A-10 A4-1 【 RX-7 】架台 ASSY-1 【 RX-7 】 Base frame assy - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ4-455-513-01 P AD (L) ﾊﾟﾂﾄﾞ (L) 4 2 EZ4-455-514-01 ST AND BOL T ｽﾀﾝﾄﾞ ﾎﾞﾙﾄ 6 3 EZ4-455-516…
A-9
A4-1

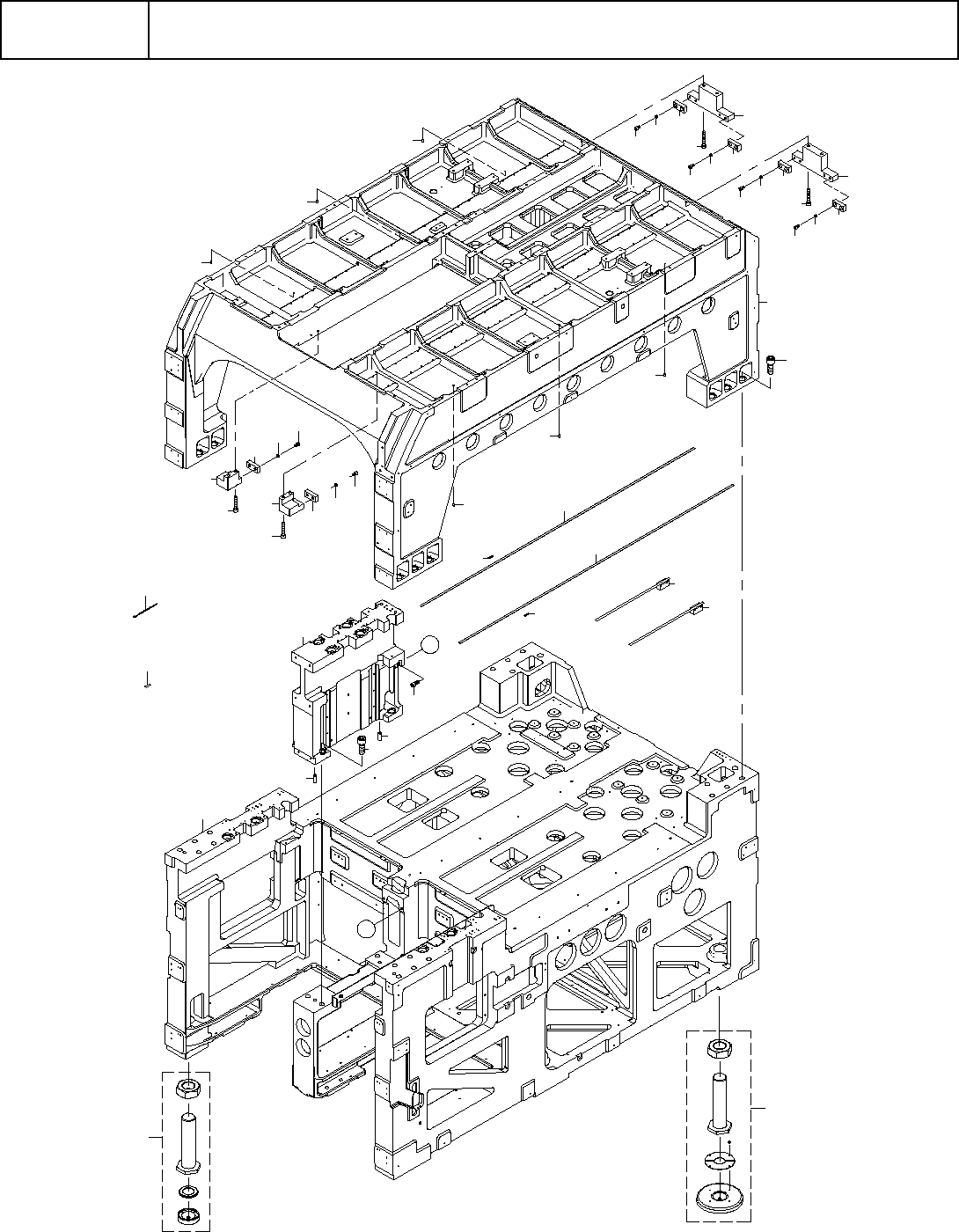

【RX-7】架台 ASSY-1
【RX-7】Base frame assy - 1
36
26
24
24
27
27
35
35
13
33
18
15
19
28
33
28
28
18
35
35
27
24
36
23
27
24
35
35
27
24
36
13
28
28
19
28
14
18
18
33
33
24
27
36
25
35
27
24
22
29
20
20
16
7
3
5
1
3
2
4
7
8
13
7
4
2
33
1
5
4
2
33
1
5
4
2
33
1
5
4
2
33
6
5
4
2
33
6
5
7
20
34
20
17
31
34
34
31
32
37
21
30
33
33
34
38
34
38
33
33
38
38
34
34
30
21
37
32
34
36
13
10
12
11
11
35
23
27
24
9
26
36
25
A-10
A4-1
【RX-7】架台 ASSY-1
【RX-7】Base frame assy - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-455-513-01 PAD (L) ﾊﾟﾂﾄﾞ (L) 4
2 EZ4-455-514-01 STAND BOLT ｽﾀﾝﾄﾞ ﾎﾞﾙﾄ 6
3 EZ4-455-516-01 RING (PAD) ﾘﾝｸﾞ (ﾊﾟﾂﾄﾞ) 12
4 EZ4-455-517-01 NUT (M42), TYPE 3 ﾅﾂﾄ (M42), 3 ｼﾕ 6
5 EZ4-706-724-31 BOLT (M3X10), HEXAGON SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X10) 24
6 EZ4-455-515-01 PAD (S) ﾊﾟﾂﾄﾞ (S) 2
7 EZ2-659-164-01 EYEBOLT (M20) ｱｲﾎﾞﾙﾄ (M20) 4
8 EZ4-455-490-04 STAND ｶﾀﾞｲ 1
9 EZ4-455-491-03 MAIN FRAME ﾒｲﾝ ﾌﾚ-ﾑ 1
10 EZ4-455-492-04 CENTER BLOCK ｾﾝﾀ- ﾌﾞﾛﾂｸ 1
11 EZ4-707-927-01 PIN (A10X30), PARALLEL ﾍｲｺｳ ﾋﾟﾝ (A10X30) 2
12 EZ4-716-148-05 BOLT (M8X20 SUS), SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M8X20 SUS) 2
13 EZ4-716-151-05 BOLT (M16X40 SUS), SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M16X40 SUS) 24
14 EZ1-492-198-11 LED ASSY (INNER LIGHT) LED ASSY (ｷﾅｲ ｼﾖｳﾒｲ) R 1
15 EZ1-492-198-21 LED ASSY (INNER LIGHT) LED ASSY (ｷﾅｲ ｼﾖｳﾒｲ) L 1
16 EZ1-492-236-14 SCALE ASSY (Y) ｽｹ-ﾙ ASSY (Y) R 1
17 EZ1-492-236-24 SCALE ASSY (Y) ｽｹ-ﾙ ASSY (Y) L 1
18 EZ1-855-269-11 MOTOR, LINEAR ﾘﾆｱ ｺﾃｲｼ (LM-H3S50-672-92C0) 4
19 EZ2-580-593-01 SCREW, +PSW M3X8 ﾈｼﾞ +PSW M3X8 8
20 EZ4-454-730-02 LM GUIDE (SHS20LV2UUC1E) LM ｶﾞｲﾄﾞ (SHS20LV2UUC1E) 4
21 EZ4-455-276-01 BRACKET, Y SCALE SENSOR Y ｽｹ-ﾙ ｾﾝｻ- ﾌﾞﾗｹﾂﾄ 2
22 EZ4-455-403-11 BRACKET (FR), Y STOPPER Y ｽﾄﾂﾊﾟ- ﾌﾞﾗｹﾂﾄ FR 2
23 EZ4-455-404-01 BRACKET (RR), Y STOPPER Y ｽﾄﾂﾊﾟ- ﾌﾞﾗｹﾂﾄ RR 2
24 EZ4-455-405-01 STOPPER ｽﾄﾂﾊﾟ- 8
25 EZ4-455-407-03 Y STOPPER (FR), HI SPEED HEAD Y ｽﾄﾂﾊﾟ- FR ｺｳｿｸ 2
26 EZ4-455-493-01 DIAMOND PIN ﾀﾞｲﾔ ﾋﾟﾝ 1
27 EZ4-458-991-01 COLLAR (8-6-3), Y AXIS ｶﾗ- (8-6-3), Y ｼﾞｸ 16
28 EZ4-705-547-31 PIN, PARALLEL (A4X8) ﾍｲｺｳ ﾋﾟﾝ (A4X8) 6
29 EZ4-720-203-01 PIN, TOOL POSITIONING ｼﾞｸﾞ ﾖｳ ｲﾁｷﾞﾒ ﾋﾟﾝ (JPDPA10-14) 1
30 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 4
31 EZ7-683-419-04 BOLT,HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 14
32 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 4
33 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14 136
34 EZ7-683-440-04 BOLT,HEXAGON SOCKET 5X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X20 100
35 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10 16
36 EZ7-683-479-04 BOLT,HEXAGON SOCKET 8X50 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 8X50 12
37 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 4
38 EZ7-688-005-11 W 5, MIDDLE W 5, MIDDLE 8
A-11
A4-2

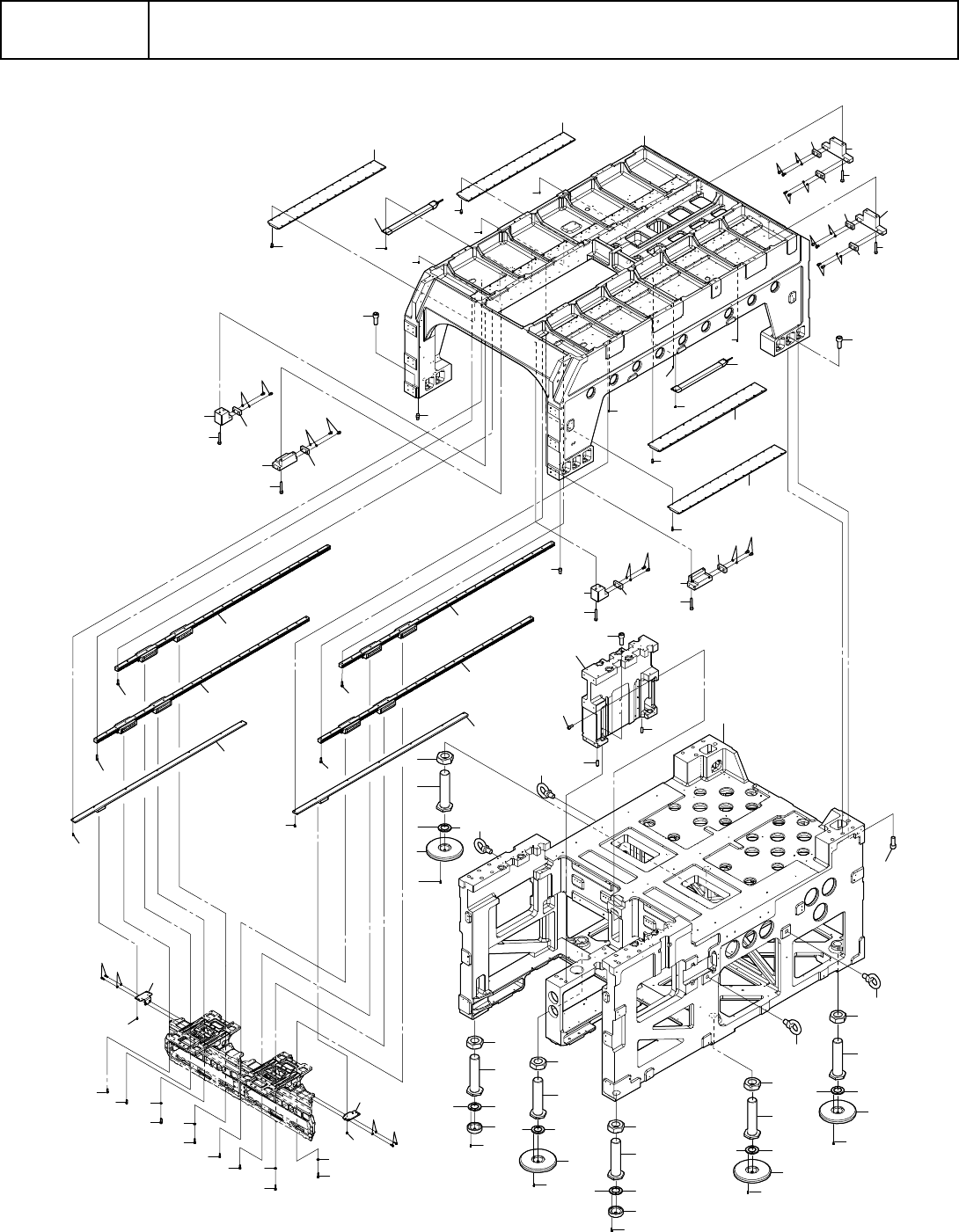

【RX-7R】架台 ASSY-1
【RX-7R】Base frame assy - 1
