A-12 A4-2 【 RX-7R 】架台 ASSY-1 【 RX-7R 】 Base frame assy - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 401-94795 ST A ND_BOL T _ASSY_L ｽﾀﾝﾄﾞﾎﾞﾙﾄ組_L 2 2 EZA-192-299-2A BOL T ASSY (S) ST AND ｽﾀﾝﾄ…
A-11
A4-2

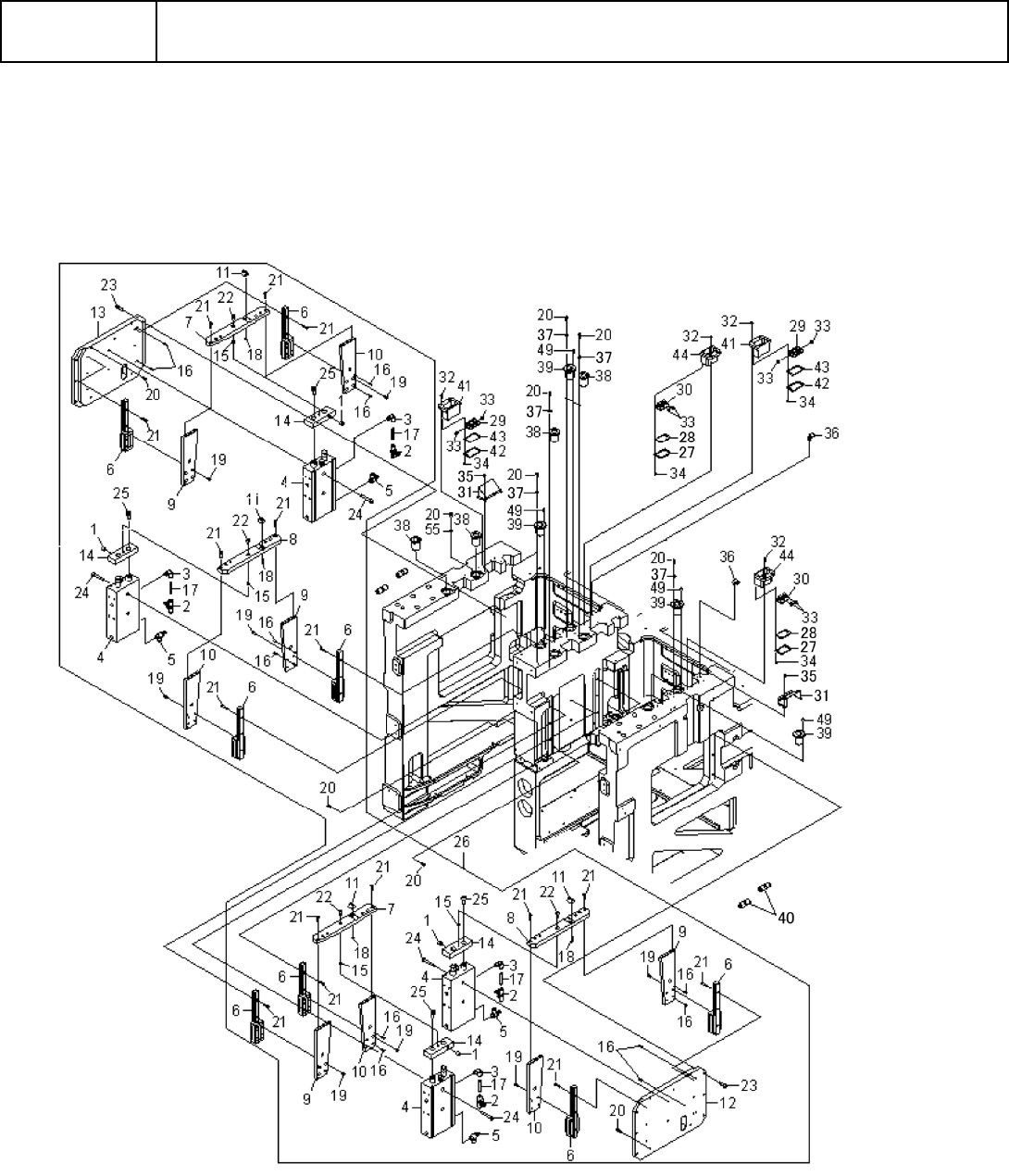

【RX-7R】架台 ASSY-1
【RX-7R】Base frame assy - 1
１
２
３
４
５
５
７
８
９
９
９
９
９
１０
１１
１２
３１
３０
２９
２７
２７
２６
２６
２２
９
２３
２５
２４
１８
１９
１９
２４
１８
２４
２５
６
２５
２４
１８
１８
２５
３２
１８
２５
２４
２５
２４
１８
３１
３２
Ａ
Ａ
A-12
A4-2
【RX-7R】架台 ASSY-1
【RX-7R】Base frame assy - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-94795 STAND_BOLT_ASSY_L ｽﾀﾝﾄﾞﾎﾞﾙﾄ組_L 2
2 EZA-192-299-2A BOLT ASSY (S) STAND ｽﾀﾝﾄﾞ ﾎﾞﾙﾄ ASSY (S) 2
3 EZ4-716-148-05 BOLT (M8X20 SUS) SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M8X20 SUS) 2
4 EZ4-716-151-05 BOLT (M16X40 SUS) SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M16X40 SUS) 22
5 EZ4-707-927-01 PIN (A10X30) PARALLEL ﾍｲｺｳ ﾋﾟﾝ (A10X30) 2
6 401-94429 MAIN_FRAME_RX-7
ﾒｲﾝﾌﾚｰﾑ_RX-7
1
7 401-94431 CENTER_BLOCK ｾﾝﾀｰﾌﾞﾛｯｸ 1
8 401-94430 STAND_RX-7 ｶﾀﾞｲ_RX-7 1
9 EZ4-705-547-31 PIN PARALLEL (A4X8) ﾍｲｺｳ ﾋﾟﾝ (A4X8) 6
10 EZ4-716-151-05 BOLT (M16X40 SUS) SOCKET ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M16X40 SUS) 12
11 EZ4-716-434-21 TIE INSULOCK (AB150 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ (AB150 ｸﾛ) 4
12 EZ4-722-956-01 LABEL(SILVER) BLANK
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10)
4
13 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 4
14 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 14
15 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 4
16 EZ7-683-437-04 BOLT HEXAGON SOCKET 5X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14 136
17 EZ7-683-440-04 BOLT HEXAGON SOCKET 5X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X20 100
18 EZ7-683-452-04 BOLT HEXAGON SOCKET 6X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10
12
19 SM-6084502-TN SCREW M8 L=45 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M8 L=45 4
20 EZ7-688-004-11 W 4 MIDDLE W 4 MIDDLE 4
21 EZ7-688-005-11 W 5 MIDDLE W 5 MIDDLE 12
22 401-53161 BLOCK F (L) Y STOPPER Y ｽﾄｯﾊﾟｰ ﾌﾞﾛｯｸ F (L) 1
23 401-53162 BLOCK F (R) Y STOPPER Y ｽﾄｯﾊﾟｰ ﾌﾞﾛｯｸ F (R) 1
24 EZ4-455-405-02 STOPPER
ｽﾄﾂﾊﾟ-
6
25 EZ4-458-991-01 COLLAR (8-6-3) Y AXIS ｶﾗ- (8-6-3) Y ｼﾞｸ 12
26 401-59281 SCALE TAPE (1180) ｽｹｰﾙ ﾃｰﾌﾟ (1180) 2
27 401-59282 DATUM CLAMP ﾃﾞｰﾀﾑ ｸﾗﾝﾌﾟ 2
28 401-60193 ENCORDER PLATE ｴﾝｺｰﾀﾞｰ ﾌﾟﾚｰﾄ 2
29 401-59985 SCALE ASSY (YL) ｽｹｰﾙ ASSY (YL) 1
30 401-59986 SCALE ASSY (YR)
ｽｹｰﾙ ASSY (YR)
1
31 EZ4-455-404-01 BRACKET (RR) Y STOPPER Y ｽﾄﾂﾊﾟ- ﾌﾞﾗｹﾂﾄ RR 2
32 SM-6085002-TN SCREW ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ 4
