A-180
A46
【RX-7R】固定バンク-3
【RX-7R】BANK UNIT K - 3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 401-67535 FILTER_BR ﾌｨﾙﾀﾌﾞﾗｹｯﾄ (1)
52 HX-0025300-00 GROMMET
ﾌﾞｯｼｭ
(1)
53 SM-0040601-SC SCREW M4X0.7 L=6 ﾄﾗｽｺﾈｼﾞ M4X0.7 L=6 (2)
54 EZ4-453-560-01 FILTER(FSL200-66-B) INLINE ｲﾝﾗｲﾝ ﾌｲﾙﾀ(FSL200-66-B) (1)
55 SL-6030692-TN SCREW M3 L=6 座金付き六角穴ﾎﾞﾙﾄ M3 L=6 (2)
56 401-67589 SOLENOID_BR ｿﾚﾉｲﾄﾞ BR (1)
57 SM-0030601-SC SCREW M3X6 ﾄﾗｽﾈｼﾞ M3X6 (2)
58 401-68969 CUTTER SOLENOID VALVE ASM ｶｯﾀｰ ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ｸﾐ (1)
59 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) (2)
60 EZ4-447-092-01 UNION (KQ2L04-01NS) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L04-01NS) (2)
61 PJ-3010651-03 HALF UNION 6XPT1/8 ﾊｰﾌ ﾕﾆｵﾝ 6XPT1/8 (1)
62 SM-6030602-TN SCREW M3X6 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6 (2)
63 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 青 4X2.5 (0.2)
64 BT-0600400-EC URETHANE TUBE BLUE 6X4 ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 青 6X4 (0.3)
65 401-67590 COVER_CUTTER ｶﾊﾞｰｶｯﾀｰ (1)
66 SM-0040601-SC SCREW M4X0.7 L=6 ﾄﾗｽｺﾈｼﾞ M4X0.7 L=6 (4)
67 E9635-455-000 REVISION SEAL REV ﾒｲﾊﾝ (1)
A-181
A47

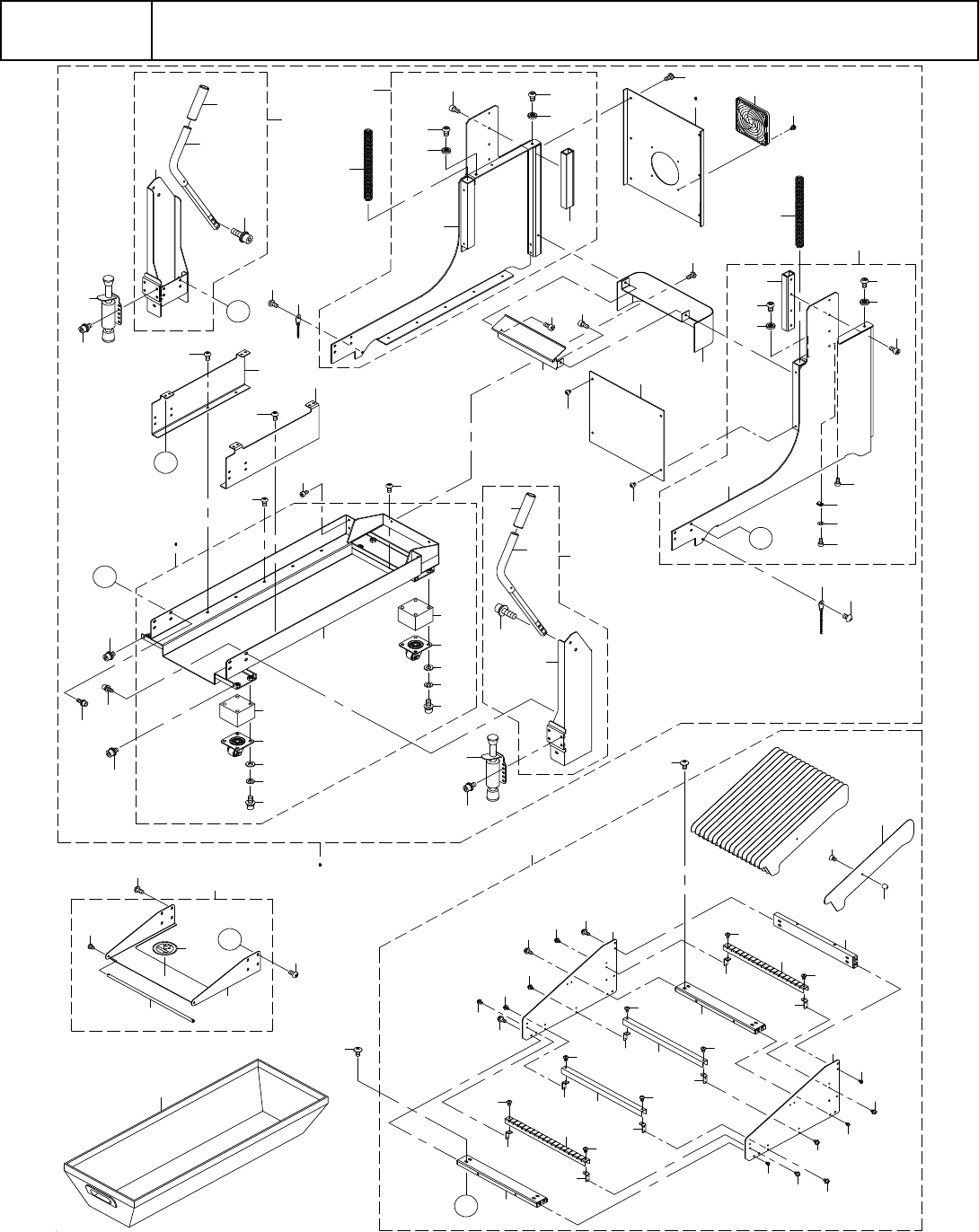

【共通】IFS-NX ユニット-1
【COMMON】IFS-NX unit - 1
3 4
55
56
57
15
12
13
19
20
21
21
20
27
26
26
27
23
24
28
29
30
30
22
31
33
33
6
35
35
36
36
32
37
38
38
39
18
25
43
43
42
54
44
45
44
45
46
47
46
47
48
48
61
62
60
64
65
65
61
60
62
63
63
59
59
66
67
67
63
60
60
61
63
64
65
60
65
60
67
60
66
62
60
67
61
63
61
61
63
61
61
58
71
71
A
A
76
74
75
77
77
72
73
B
B
C
33
33
34
5
17
78
16
52
14
11
53
C
1 2
50
51
49
69
70
68
6
10
10
9
7
8
7
9
8
40 41
