RX-7_RX-7R-Rev08 - 第273页

B-29 B9 【 RX-7R 】 SYSTEM DIAGRAM (9) (RF BANK) 【 RX-7R 】 SYSTEM DIAGRAM (9) (RF BANK) ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名個数 Q'ty 備考 Remarks 1 401-57972 B OX CN1A CA BLE ASM ﾎﾞｯｸｽ CN1A ｹｰﾌﾞﾙｸﾐ 1 2 401-96360…

B-28

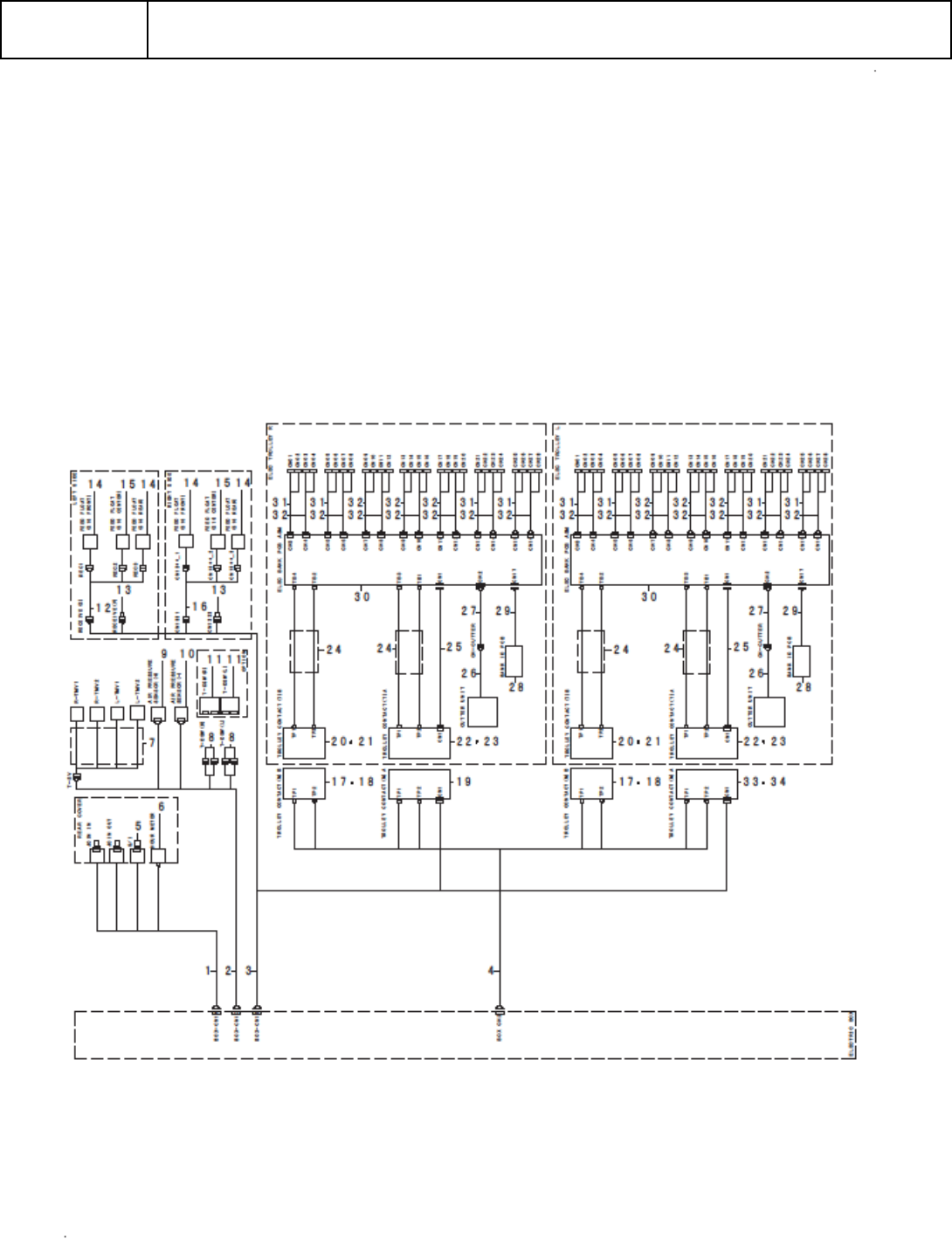

【RX-7R】SYSTEM DIAGRAM (9) (RF BANK)

B-29

【RX-7R】SYSTEM DIAGRAM (9) (RF BANK)

ｲﾗｽﾄ番号

Ref.No.

品番

Part Number

Description

品名

個数

Q'ty

備考

Remarks

1 401-57972 BOX CN1A CABLE ASM ﾎﾞｯｸｽ CN1A ｹｰﾌﾞﾙｸﾐ 1

2 401-96360 BOX CN1C CABLE ASM ﾎﾞｯｸｽ CN1C ｹｰﾌﾞﾙｸﾐ 1

3 401-57973 BOX CN1B CABLE ASM ﾎﾞｯｸｽ CN1B ｹｰﾌﾞﾙｸﾐ 1

4 EZ1-969-296-12 HARNESS (BOX-TROLLEY POW) ﾊ-ﾈｽ (BOX-TROLLEY POW) 1

5 EZ1-969-384-12 HARNESS (S/I JP) ﾊ-ﾈｽ (S/I JP) 1

6 EZ1-520-538-12 METER HOUR (H7ET-NFV-300)

ｱﾜ- ﾒ-ﾀ- (H7ET-NFV-300)

7 402-07757 VALVE_ASM ﾊﾞﾙﾌﾞｸﾐ 1

8 402-09947 T-DSW JP CABLE ASM T-DSW JP ｹｰﾌﾞﾙｸﾐ 1

9 401-29071 AIR(P) SENSOR CABLE ASM ｴｱ(P) ｾﾝｻｹｰﾌﾞﾙｸﾐ 1

10 401-29080 AIR(N) SENSOR CABLE ASM ｴｱ(N) ｾﾝｻｹｰﾌﾞﾙｸﾐ 1

11 HA-0037900-0A MICRO SW ﾏｲｸﾛ SW 1

12 401-58789 FD-FLOAT(L)SENS CABLE2-2 ASM

FD-FLOAT(L)ｾﾝｻｹｰﾌﾞﾙ 2-2 ｸﾐ

13 401-46050 FD-FLOAT(R)SENS SHORT WIRE ASM ﾌｨｰﾀﾞｳｷ(R)ｾﾝｻｼｮｰﾄｿｸｾﾝｸﾐ 1

14 401-58787 SENSOR ASSY A (FEEDER FLOAT JA ｾﾝｻ ASSY A (ﾌｨｰﾀﾞﾌﾛｰﾄ JAM) 1

15 401-58788 SENSOR ASSY B (FEEDER FLOAT JA ｾﾝｻ ASSY B (ﾌｨｰﾀﾞﾌﾛｰﾄ JAM) 1

16 401-58790 FD-FLOAT(R)SENS CABLE2-2 ASM FD-FLOAT(R)ｾﾝｻｹｰﾌﾞﾙ 2-2 ｸﾐ 1

17 EZA-194-422-7B TROLLEY CONTACT(M)B MOUNT ﾄﾛﾘｰ CONTACT(M)B MOUNT 1

18 401-46472 TROLLEY CONTACT(M)B PCB ASM

ﾄﾛﾘｰ CONTACT(M)B 基板組

19 401-46468 TROLLEY CONTACT(M)A PCB ASM ﾄﾛﾘｰ CONTACT(M)A 基板組 1

20 EZA-194-422-9B TROLLEY CONTACT(T)B MOUNT ﾄﾛﾘｰ CONTACT(T)B MOUNT 1

21 401-46480 TROLLEY CONTACT(T)B PCB ASM ﾄﾛﾘｰ CONTACT(T)B 基板組 1

22 EZA-194-422-8B TROLLEY CONTACT(T)A MOUNT ﾄﾛﾘｰ CONTACT(T)A MOUNT 1

23 401-46476 TROLLEY CONTACT(T)A PCB ASM ﾄﾛﾘｰ CONTACT(T)A 基板組 1

24 401-42757 POWER CABLE ASM

電源ｹｰﾌﾞﾙ組

25 401-67769 RX-7 TROLLER-IF CABLE ASM RX-7 台車 IF ｹｰﾌﾞﾙ組 1

26 401-68969 CUTTER SOLENOID VALVE ASM ｶｯﾀｰｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞｸﾐ 1

27 401-67768 RX-7 TROLLY-CUTTER CABLE ASM RX-7 台車-ｶｯﾀｰｹｰﾌﾞﾙ組 1

28 401-69473 BANK ID PCB (RF) ASM ﾊﾞﾝｸ ID 基板( RF)組 1

29 401-64515 BANK CABLE(IFSNX_EXT-POW)ASM ﾊﾞﾝｸｹｰﾌﾞﾙ (IFSNX_EXT-POW)ｸﾐ 1

30 401-64245 RX-7 ELEC BANK PCB ASM

RX-7 ﾃﾞﾝﾄﾞｳﾊﾞﾝｸ PCB

31 401-64513 BANK CABLE 1 ASM ﾊﾞﾝｸｹｰﾌﾞﾙ 1 ASM 1

32 401-64514 BANK CABLE 2 ASM ﾊﾞﾝｸｹｰﾌﾞﾙ 2 ASM 1

33 EZA-194-422-6B TROLLEY CONTACT(M)A MOUNT ﾄﾛﾘｰ CONTACT(M)A MOUNT 1

34 401-72762 TROLLEY CONTACT(M)A ORI PCB AS ﾄﾛﾘｰ CONTACT(M)A ORI 基板組 1

B-30

B10

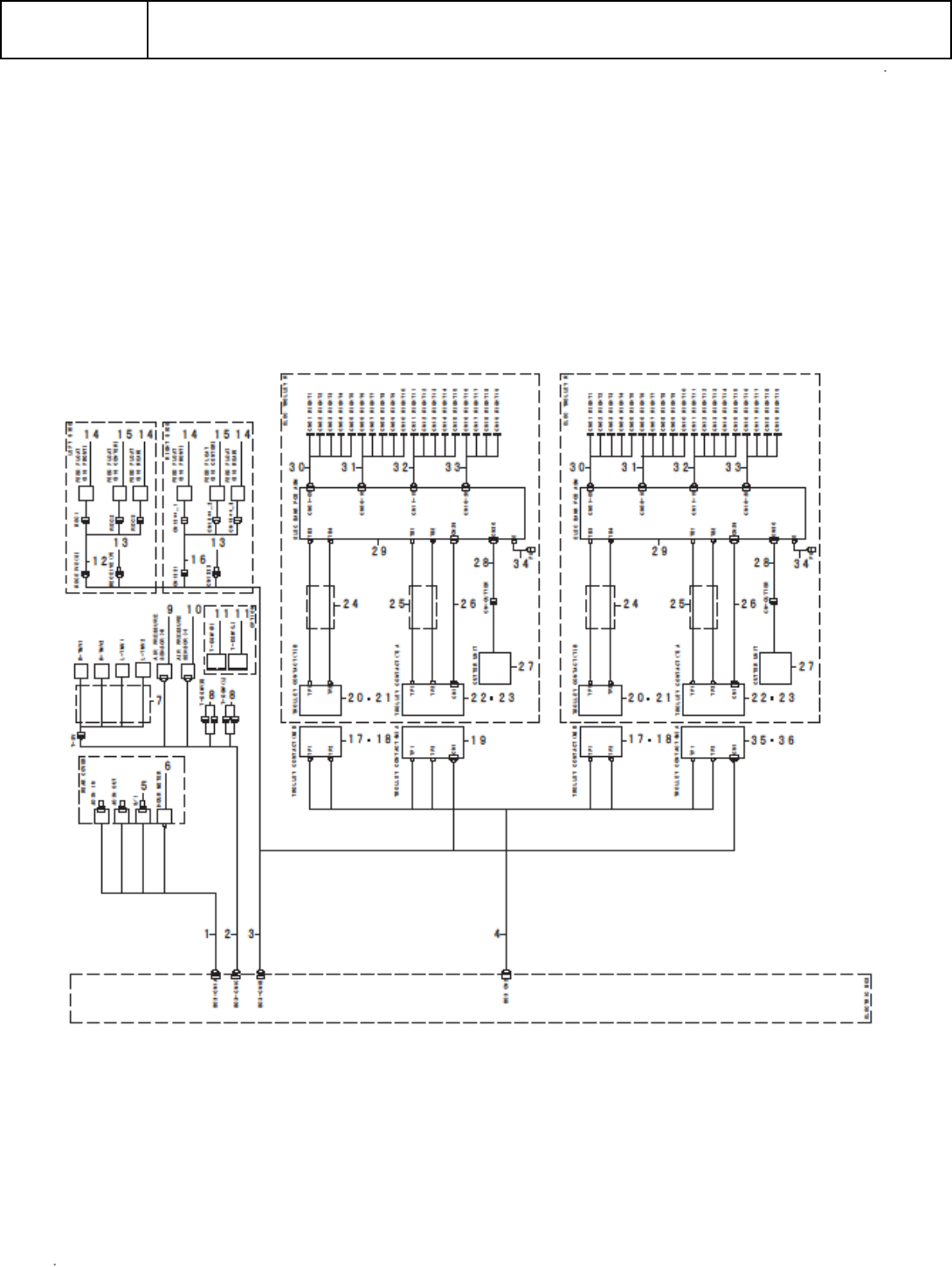

【RX-7R】SYSTEM DIAGRAM (10) (ETF BANK)
