A-35 A9-2 【 RX-7R 】架台 ASSY-6 【 RX-7R 】 Base frame assy - 6 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZA-192-1 14-4A POMP ASSY V ACUUM ｼﾝｸｳ ﾎﾟﾝﾌﾟ ASSY 1 2 EZ1-492-203-1 1 V ACUUM PUMP ASSY ｼﾝ…
A-34
A9-2

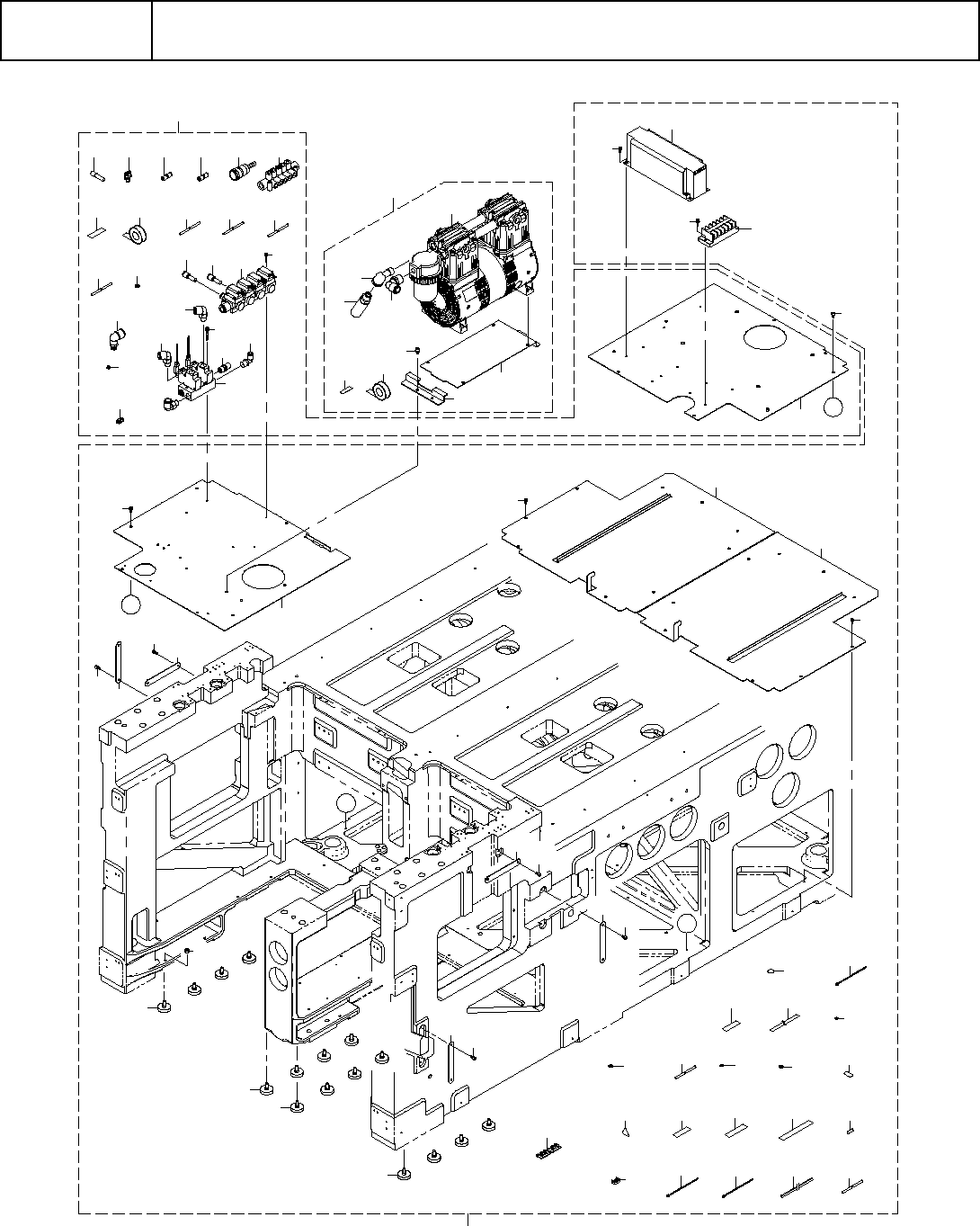

【RX-7R】架台 ASSY-6
【RX-7R】Base frame assy - 6
２
３
４
５
６
７
１０
１
１３
１２
１２
１４
１５
１６
１８１７ １９ ２０
２５
２４
２３
２６
２９
２８
３６
３５
３５
３９
４０
３４
３４
１１
４３
４４
４５ ４６
４７
４８
４９
５３
５３
５３
５５
５４
５７
５６
５８
５９
５２
６０
５３
６１
６２
６３
６３
６３
６３
６４
６５
７５
７５
６５
７５
６５
６５
７５
７５
６５
６６
６７
６８
６９
７０
７１
７２
７３
Ａ
Ａ
５３
Ｂ
Ｂ
４１
３７
３８
２１
２２
８
９
４２
７６
A-35
A9-2
【RX-7R】架台 ASSY-6
【RX-7R】Base frame assy - 6
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZA-192-114-4A POMP ASSY VACUUM ｼﾝｸｳ ﾎﾟﾝﾌﾟ ASSY 1
2 EZ1-492-203-11 VACUUM PUMP ASSY ｼﾝｸｳ ﾎﾟﾝﾌﾟ ASSY (1)
3 EZ4-453-767-31 SHEET RUBBER ｺﾞﾑ ｼ-ﾄ (D) (2)
4 EZ4-454-742-01 SILENCER (ANA1-03) ｻｲﾚﾝｻ (ANA1-03) (1)
5 EZ4-455-483-01 ELBOW (3/8) STREET ｽﾄﾘ- ﾄ ｴﾙﾎﾞ (3/8) (1)
6 EZ7-600-037-59 TAPE SEAL(TOMBO NO.9082)13X15M
ｼ-ﾙﾃ-ﾌﾟ(TOMBO NO.9082)13MMX15M
(0.39)
7 EZ7-683-435-04 BOLT HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 (2)
8 401-65448 VACUUM PUMP BASE ｼﾝｸｳﾎﾟﾝﾌﾟ ﾍﾞｰｽ (1)
9 401-65449 VACUUM PUMP SUPPORT ｼﾝｸｳﾎﾟﾝﾌﾟ ｻﾎﾟｰﾄ (1)
10 PJ-3041254-01 ELBOW UNION 12 ｴﾙﾎﾞ ﾕﾆｵﾝ 12 (1)
11 402-07138 AIR_SET_ASM 空圧機器組 1
12 EZ1-492-242-13 SOLENOID ASSY (AIR SUPPLY)
ｿﾚﾉｲﾄﾞ ASSY (AIR SUPPLY)
(1)
13 EZ2-672-089-31 PLUG (KQ2P-08) BLANKING ﾌﾞﾗﾝｷﾝｸﾞ ﾌﾟﾗｸﾞ (KQ2P-08) (6)
14 EZ4-436-830-11 SILENCER (AN15-02) ｻｲﾚﾝｻ (AN15-02) (1)
15 EZ4-447-063-31 UNION (KQ2L06-02AS) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L06-02AS) (1)
16 EZ4-447-186-11 WYE (KQ2U06-00A) UNION ﾕﾆｵﾝ ﾜｲ (KQ2U06-00A) (1)
17 EZ4-447-247-21 STRAIGHT (KQ2H08-00A) ｽﾄﾚ-ﾄ (KQ2H08-00A) (2)
18 EZ4-447-247-41 STRAIGHT (KQ2H12-00A)
ｽﾄﾚ-ﾄ (KQ2H12-00A)
(2)
19 EZ4-703-619-01 SOCKET ﾊｲ ｶﾌﾟﾗ- (20SH) (1)
20 EZ4-705-238-11 MANIFOLD (KM11-08-12-10) ﾏﾆﾎ-ﾙﾄﾞ (KM11-08-12-10) (1)
21 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) (8)
22 EZ7-600-037-59 TAPE SEAL(TOMBO NO.9082)13X15M ｼ-ﾙﾃ-ﾌﾟ(TOMBO NO.9082)13MMX15M (0.36)
23 EZ7-630-003-50 POLYURETHANETUBE(UC1280-100-CBL) ｿﾌﾄﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ(UC1280-100-CBL) (2.39)
24 EZ7-632-378-00 TUBE POLYURETHAN (TU0805B)
ﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ (TU0805B)5X8X20M
(12.61)
25 EZ7-632-385-50 TUBE POLYURETHAN (TU0604B) ﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ (TU0604B) 4X6X3M (26.23)
26 BT-1000651-EB URETHANE TUBE BLACK 10X6.5 ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ ｸﾛ 10X6.5 (0.425)
27 EZ7-683-000-10 BOLT HEXAGON SOCKET 3X30 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 3X30 (2)
28 EZ7-683-407-04 BOLT HEXAGON SOCKET 3X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(3X14) (2)
29 EZ7-683-429-04 BOLT HEXAGON SOCKET 4X30 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X30 (4)
30 EZ7-683-435-04 BOLT HEXAGON SOCKET 5X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10
(15)
31 EZ7-683-455-04 BOLT HEXAGON SOCKET 6X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X16 (2)
32 EZ7-684-026-04 N 6 TYPE 2 N 6 TYPE 2 (2)
33 EZ7-688-006-11 W 6 MIDDLE W 6 MIDDLE (4)
34 PJ-3010600-03 REDUCER ﾚﾃﾞｭｰｻ (5)
35 PJ-3040405-05 UNION ﾕﾆｵﾝ (2)
36 401-94317 BOTTOM_PLT_FRONT_R
底板_前側 R
(1)
37 EZ7-688-005-11 W 5 MIDDLE W 5 MIDDLE (2)
38 PJ-3041252-02 ELBOW UNION ｴﾙﾎﾞ ﾕﾆｵﾝ (3)
39 PJ-0205000-02 PLUG ﾌﾟﾗｸﾞ (1)
40 PJ-3010605-03 HALF UNION ﾊｰﾌ ﾕﾆｵﾝ (1)
41 402-07141 MAIN_BASE_ASM ﾒｲﾝﾍﾞｰｽ組 1
42 EZ1-854-030-11 BRIDGE TERMINAL
ﾜﾀﾘ ｶﾅｸﾞ (BNJ56BPN10)
(1)
43 EZ4-462-761-01 LABEL EARTH ｱ-ｽ ﾗﾍﾞﾙ (4)
44 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) (4)
45 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) (2)
46 EZ7-300-011-95 SHEET MARK(BNM7PN10)9.5X1M WHT ﾏ-ｸｼ-ﾄ (BNM7PN10) 9.5MMX1M WHT (0.11)
47 EZ7-623-423-07 LW 4 TYPE B LW 4 TYPE B (3)
48 EZ7-623-424-07 LW 5 TYPE B
LW 5 TYPE B
(1)
49 EZ7-630-003-18 TUBE MARK ﾏ-ｸ ﾁﾕ-ﾌﾞ(LM-TU332N2) 3.2MM (0.08)
50 EZ7-682-160-01 SCREW +P 4X6 SCREW +P 4X6 (3)
A-36
A9-2
【RX-7R】架台 ASSY-6
【RX-7R】Base frame assy - 6
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 EZ7-682-173-01 SCREW +P 5X6 ﾈｼﾞ +P 5X6 (1)
52 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) (2)
53 EZ7-683-435-04 BOLT HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 (34)
54 EZ7-688-004-11 W 4 MIDDLE W 4 MIDDLE (3)
55 EZ7-688-005-11 W 5 MIDDLE W 5 MIDDLE (1)
56 401-94319 BOTTOM_PLT_REAR_R
底板_後側 R
(1)
57 401-94320 BOTTOM_PLT_REAR_L 底板_後側 R (1)
58 401-94318 BOTTOM_PLT_FRONT_L 底板_前側 L (1)
59 401-59292 TERMINAL BLOCK TERMINAL BLOCK (1)
60 401-91282 NOISE FILTER NOISE FILTER (1)
61 CM-2001000-01 PE MARK LABEL PE ﾏｰｸ ｼｰﾙ (1)
62 CM-3001000-04 VOLTAGE WARNING LABEL (50)
危険電圧警告ｼｰﾙ (50)
(2)
63 EZ4-152-000-11 BEARING (DR-30-B3.6-12.4) ﾍﾞｱﾘﾝｸﾞ (DR-30-B3.6-12.4) (16)
64 EZ4-452-347-01 LABEL (PLAIN) SERIAL NO.(1446) ｼﾘｱﾙ NO. ﾗﾍﾞﾙ (ﾑｼﾞ) (1446) (1)
65 401-91802 CABLE_FIX_BRK ｹｰﾌﾞﾙ固定ﾌﾞﾗｹｯﾄ (5)
66 EZ4-457-931-21 TAPE (60) FIXED ｺﾃｲ ﾃ-ﾌﾟ (60) (4)
67 EZ4-457-931-31 TAPE (100) FIXED ｺﾃｲ ﾃ-ﾌﾟ (100) (4)
68 EZ4-705-546-11 PIN (DIA. 6) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (ﾌｱｲ 6)
(2)
69 EZ4-706-151-11 CLAMP (KR5G5) ﾊｲｾﾝﾄﾞﾒ (KR5G5) (6)
70 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) (1)
71 EZ4-716-434-21 TIE INSULOCK (AB150 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ (AB150 ｸﾛ) (7)
72 EZ7-300-011-93 BUSHING UNIVERSAL(THA-032)20M ｼﾞｻﾞｲ ﾌﾞﾂｼﾕ (THA-032) 20M WHT (0.145)
73 EZ7-632-378-00 TUBE POLYURETHAN (TU0805B) ﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ (TU0805B)5X8X20M (2)
74 EZ7-682-160-01 SCREW +P 4X6
SCREW +P 4X6
(6)
75 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 (14)
76 EZ7-684-223-01 NUT 6 HEXAGON CAP 6 ｶｸ ﾌｸﾛﾅﾂﾄ 6 (16)
