A-45 A14 【共通】ヘッド ASSY-5 【 COMMON 】 Head assy - 5 1 9 27 27 26 2 19 28 23 14 15 20 24 17 25 22 7 8 29 21 16 3 6 27 12 27 27 13 27 27 11 27 18 25 10 4 5
A-44
A13
【共通】ヘッド ASSY-4
【COMMON】Head assy - 4
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-843-626-11 CONNECTOR (DL2-96R) ｺﾈｸﾀ (DL2-96R) 1
2 401-63295 USB MEMORY (SP008GBUF3J06V1D) USB ﾒﾓﾘ- (SP008GBUF3J06V1D) 1
3 EZ7-682-247-04 SCREW +K 3X6 +K 3X6 2
4 EZ2-023-770-01 PLUG (M-5P) ﾌﾟﾗｸﾞ (M-5P) 2
5 EZ3-703-360-03 PIN PARALLEL (DIA. 3X10) ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X10) 2
6 EZ4-454-041-03 BRACKET, CONNECTOR ｺﾈｸﾀ ﾌﾞﾗｹﾂﾄ 1
7 EZ4-454-078-01 BOLT (SET-M3X6-NI) ﾃｲﾄｳﾎﾞﾙﾄ (SET-M3X6-NI) 22
8 EZ4-457-931-01 TAPE (80) FIXED ｺﾃｲ ﾃ-ﾌﾟ (80) 1
9 EZ1-458-773-11 USB EXTENSION (USB-EX50) USB EXTENSION (USB-EX50) 1
10 EZ4-465-278-01 O RING (SS3.5) O ﾘﾝｸﾞ (SS3.5) 1
11 EZ7-632-355-40 TUBE HEAT SHRINKING (25X0.4) ﾈﾂ ｼﾕｳｼﾕｸ ﾁﾕ-ﾌﾞ 0.052
12 EZ1-970-003-11 HARNESS (USB LAN) ﾊ-ﾈｽ (USB LAN) 1
13 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 7
14 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 33
15 401-61107 MOTOR ASSY(RT) ﾓｰﾀ ASSY(RT ｼﾞｸ) 1
16 EZ4-453-921-02 GEAR (RT) (DRIVING) ｷﾞｱ- (RT) (ｸﾄﾞｳ) 1
17 EZ4-453-928-01 BASE (RT), MOTOR ﾓ-ﾀ ﾍﾞ-ｽ (RT) 1
18 EZ4-453-930-01 HOLDER (RT), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (RT) 1
19 EZ4-453-944-02 COLLAR, SET ｾﾂﾄ ｶﾗ- 1
20 EZ4-454-027-01 HOLDER (TR-2), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (TR-2) 1
21 EZ4-454-054-01 BEARING (684AZZ) ﾍﾞｱﾘﾝｸﾞ (684AZZ) 1
22 EZ4-454-723-01 LOW HEAD SCREW (M3X8) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8) 1
23 EZ4-454-724-01 RING,SHAFT C TYPE RETAINING(4) ｼﾞｸﾖｳ C ｶﾞﾀ ﾄﾒﾜ (4) 1
24 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 6
25 EZ1-492-164-25 MOTOR ASSY ﾓ-ﾀ- ASSY (RN ｼﾞｸ) 1
26 EZ2-023-130-11 RING, SHAFT C TYPE RETAINING ｼﾞｸﾖｳ C ｶﾞﾀ ﾄﾒﾜ (STWN5) 1
27 EZ4-453-922-01 GEAR (RN) (DRIVING) ｷﾞｱ- (RN) (ｸﾄﾞｳ) 1
28 EZ4-453-929-01 BASE (RN), MOTOR ﾓ-ﾀ ﾍﾞ-ｽ (RN) 1
29 EZ4-453-931-01 HOLDER (RN), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (RN) 1
30 EZ4-453-943-02 SHAFT, GEAR ｷﾞｱ- ｼﾔﾌﾄ 1
31 EZ4-453-944-02 COLLAR, SET ｾﾂﾄ ｶﾗ- 1
32 EZ4-454-066-01 BEARING (MR115ZZ) ﾍﾞｱﾘﾝｸﾞ (MR115ZZ) 1
33 EZ4-454-723-01 LOW HEAD SCREW (M3X8) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8) 1
34 EZ4-718-766-01 SET-SCREW (M3X4 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X4 SUS) 4
35 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 4
36 EZ2-022-865-01 PIN, PARALLEL (DIA. 3M6X10) ﾍｲｺｳ ﾋﾟﾝ (ﾌｱｲ 3M6X10) 2
37 EZ4-453-925-01 RETAINER, BEARING ﾍﾞｱﾘﾝｸﾞ ｵｻｴ 1
38 EZ4-453-949-02 HEAD TOP PLATE ﾍﾂﾄﾞ ﾄﾂﾌﾟ ﾌﾟﾚ-ﾄ 1
39 EZ4-454-052-01 BEARING (AC8-18DF) ｱﾝｷﾞﾕﾗ ﾍﾞｱﾘﾝｸﾞ (AC8-18DF) 1
40 EZ4-454-723-01 LOW HEAD SCREW (M3X8) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8) 2
41 EZ4-457-779-01 MAIN SHAFT COVER ﾒｲﾝ ｼﾔﾌﾄ ｶﾊﾞ- 1
42 EZ4-701-529-01 TIE MOUNT (MB1) ﾀｲﾏｳﾝﾄ (MB1) 2

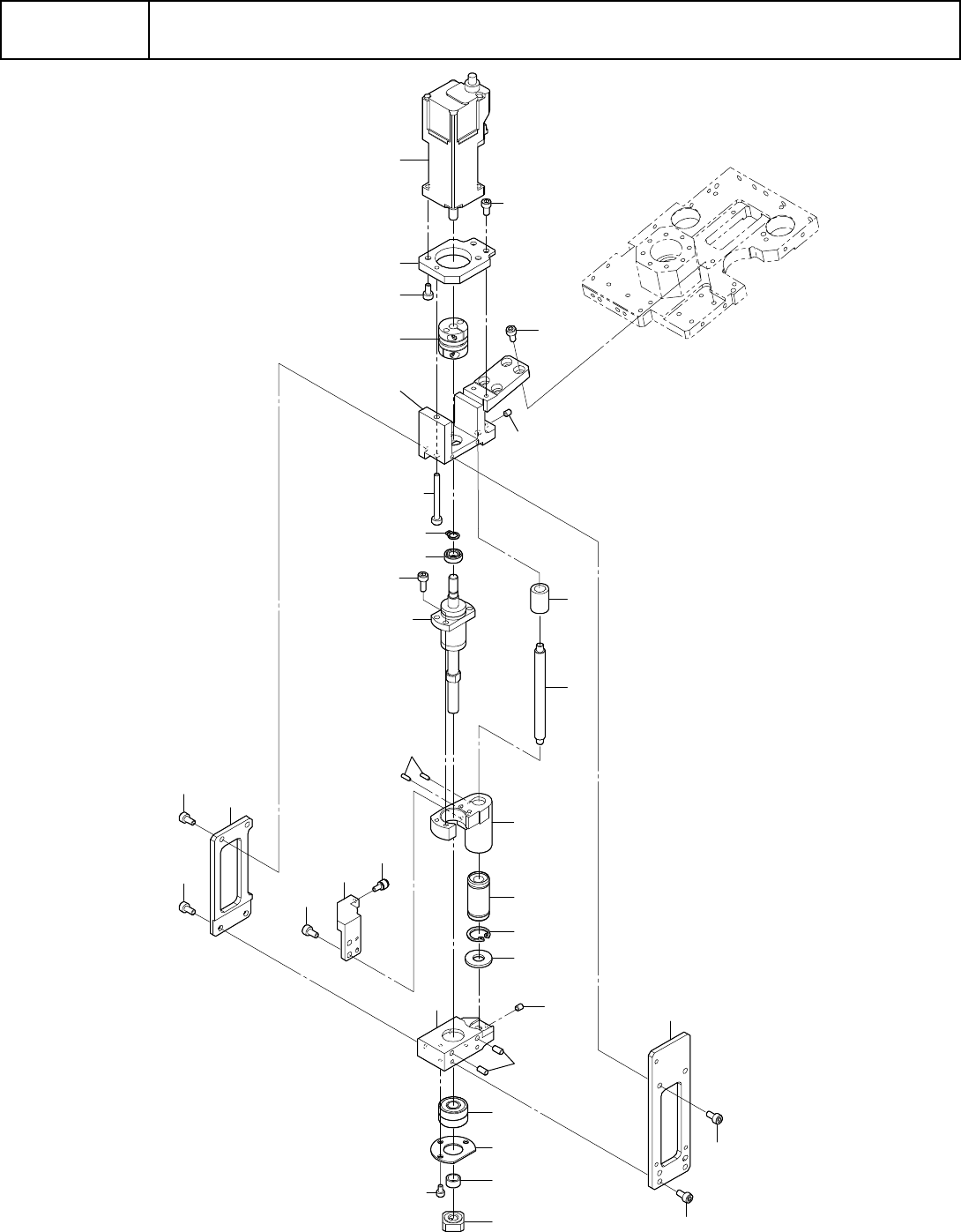

A-45
A14
【共通】ヘッド ASSY-5
【COMMON】Head assy - 5
1
9
27
27
26
2
19
28
23
14
15
20
24
17
25
22
7
8
29
21
16
3
6
27
12
27
27
13
27
27
11
27
18
25
10
4
5
A-46
A14
【共通】ヘッド ASSY-5
【COMMON】Head assy - 5
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-547-14 MOTOR ASSY (H) MOTOR ASSY (H) 1
2 401-78054 BEARING COLLAR ﾍﾞｱﾘﾝｸﾞｶﾗｰ 1
3 EZ2-148-082-01 FOLLOWER, MINIATURE CAM (CFS2.5) ﾐﾆﾁﾕｱ ｶﾑ ﾌｵﾛｱ (CFS2.5) 1
4 EZ3-657-877-01 PIN, PARALLEL ﾍｲｺｳ ﾋﾟﾝ (ﾅﾝｼﾂ) 2
5 EZ3-703-358-52 PIN PARALLEL (DIA. 2X6) ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 2X6) 2
6 EZ4-453-913-01 LEVER, HOLDER ﾚﾊﾞ- ﾎﾙﾀﾞ 1
7 EZ4-453-947-01 RETAINER (2), BEARING ﾍﾞｱﾘﾝｸﾞ ｵｻｴ (2) 1
8 EZ4-453-948-01 COLLAR, H AXIS H ｼﾞｸ ｶﾗ- 1
9 EZ4-453-955-01 BRACKET, MOTOR ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ 1
10 EZ4-453-956-01 HOLDER (1), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 1) 1
11 EZ4-453-957-01 HOLDER (H 2), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 2) 1
12 EZ4-453-958-01 PLATE (1), SUPPORT ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (1) 1
13 EZ4-453-959-01 PLATE (2), SUPPORT ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (2) 1
14 EZ4-453-961-01 SHAFT, LINEAR ﾘﾆｱ ｼﾔﾌﾄ 1
15 EZ4-453-962-01 H AXIS NUT HOLDER H ｼﾞｸ ﾅﾂﾄ ﾎﾙﾀﾞ 1
16 EZ4-454-012-01 STOPPER (H), UPPER H ｼﾞｸ ｱﾂﾊﾟ- ｽﾄﾂﾊﾟ- 1
17 EZ4-454-013-01 STOPPER (H), UNDER H ｼﾞｸ ｱﾝﾀﾞ- ｽﾄﾂﾊﾟ- 1
18 EZ4-454-044-01 COUPLING (SFC-005SA2-5B-5B) ｶﾂﾌﾟﾘﾝｸﾞ (SFC-005SA2-5B-5B) 1
19 EZ4-454-047-01 BEARING (MR105) ﾍﾞｱﾘﾝｸﾞ (MR105) 2
20 EZ4-454-048-01 LINEAR BUSH ﾘﾆｱ ﾌﾞﾂｼﾕ (SM6G-LUU) 1
21 EZ4-454-050-01 LOCK NUT (LNM6X0.75) ﾛﾂｸ ﾅﾂﾄ (LNM6X0.75) 1
22 EZ4-454-051-01 BEARING (AC6-16DF) ｱﾝｷﾞﾕﾗ ﾍﾞｱﾘﾝｸﾞ (AC6-16DF) 1
23 EZ4-454-055-01 BALL SCREW (WHF0612S-3.4GT+) ﾎﾞ-ﾙ ﾈｼﾞ (WHF0612S-3.4GT+) 1
24 EZ4-454-725-01 RING (12) ｱﾅﾖｳ C ｶﾞﾀ ﾄﾒ ﾜ (12) 1
25 EZ4-718-766-01 SET-SCREW (M3X4 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X4 SUS) 2
26 EZ7-683-000-10 BOLT, HEXAGON SOCKET 3X30 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 3X30 1
27 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 33
28 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 4
29 EZ7-683-481-04 BOLT, HEXAGON SOCKET 2.5X4 6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4 3
