A-53 A17 【 RX-7 】 P8 ヘ ッ ド ASSY-2 【 RX-7 】 P8 Head assy - 2 27 45 20 48 35 34 17 18 16 14 15 13 19 19 77 76 74 75 78 72 70 71 32 31 42 26 5 1 7 11 65 67 69 68 25 32 52 53 54 55 56 57 82 79 81 23 41 39 37 36 22 41 28 9 8 …
A-53
A17

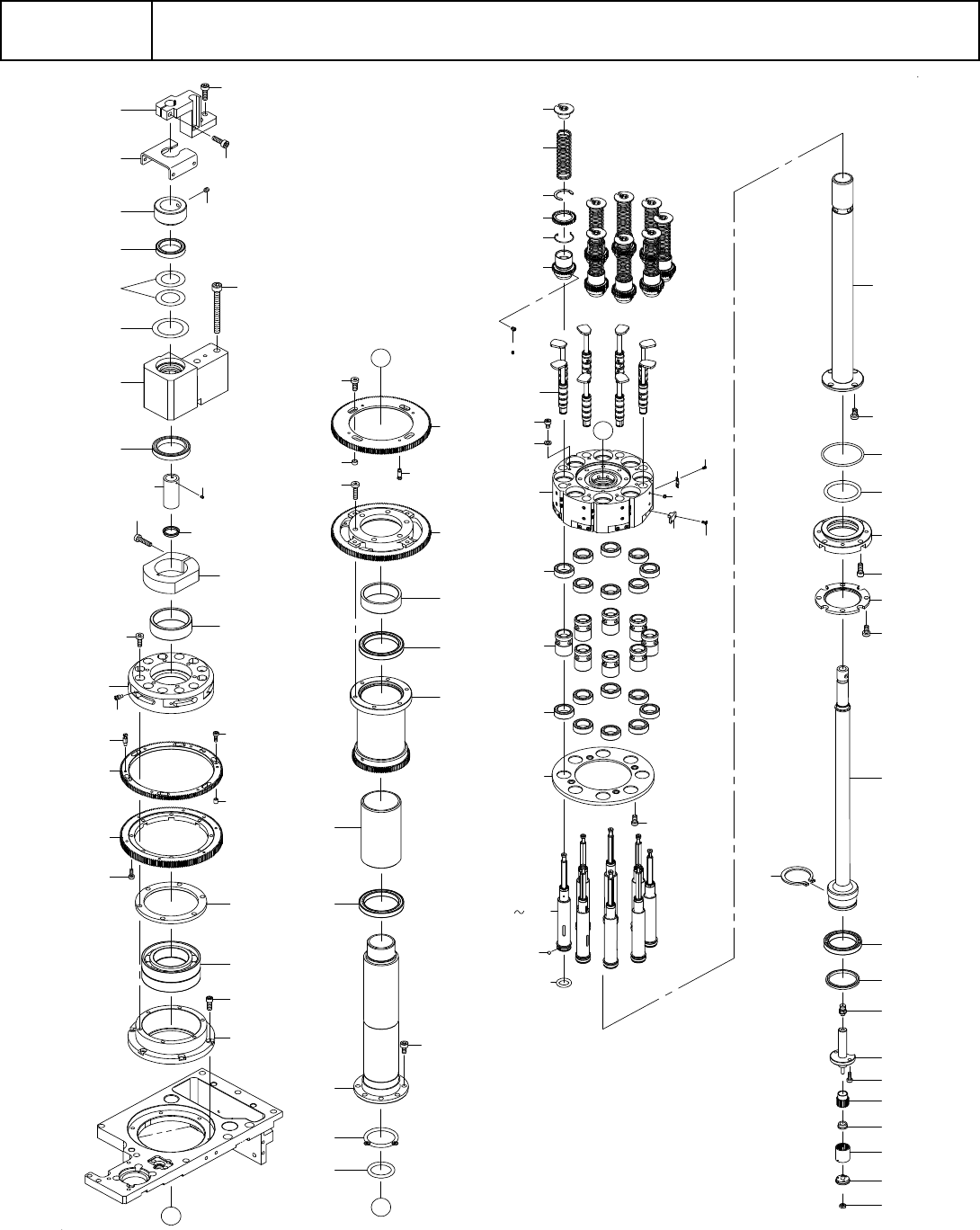

【RX-7】P8 ヘッド ASSY-2
【RX-7】P8 Head assy - 2
27
45
20
48
35
34
17
18
16
14
15
13
19
19
77
76
74
75
78
72
70
71
32
31
42
26
5
1
7
11
65 67
69
68
25
32
52
53
54
55
56 57
82
79
81
23
41
39
37
36
22
41
28
9
8
6
39
49
50
21
43
33
29
40
30
46
59
58
61
60
62
63
64
51
24
38
44
83
47
2
3
12
12
4
84
85
86
87
88
73
10
A
A
B
B
80
A-54
A17
【RX-7】P8 ヘッド ASSY-2
【RX-7】P8 Head assy - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-55912 HOLDER(2)_BEARING ﾍﾞｱﾘﾝｸﾞﾎﾙﾀﾞ(2) 1
2 401-56141 COLLAR(3)_BEARING ﾍﾞｱﾘﾝｸﾞｶﾗｰ(3) 1
3 401-56142 HOLDER_SHAFT ｼｬﾌﾄﾎﾙﾀﾞｰ 1
4 401-56400 MAIN SHAFT COVER ﾒｲﾝｼｬﾌﾄｶﾊﾞｰ 1
5 401-56410 BEARING(7905UCDB) ﾍﾞｱﾘﾝｸﾞ(7905UCDB) 1
6 401-56458
LOW HEAD CAP SCREW(M3X12)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x12) 1
7 401-56624 RETAINER(2)_BEARING ﾍﾞｱﾘﾝｸﾞｵｻｴ(2) 1
8 401-60283 NUT_BEARING ﾍﾞｱﾘﾝｸﾞﾅｯﾄ 1
9 401-60284 COLLAR_BEARING NUT ﾍﾞｱﾘﾝｸﾞﾅｯﾄｶﾗｰ 1
10 EZ3-170-255-01 SCREW (M3X3) ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X3) 2
11 EZ4-454-723-01 LOW HEAD SCREW (M3X8) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8) 6
12 EZ7-683-405-04 BOLT HEXAGON SOCKET 3X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10 3
13 401-55921 SPACER_RT GEAR RT ｷﾞｱｰｽﾍﾟｰｻｰ 6
14 401-56134 POST(1)_RT SPRING RT ｽﾌﾟﾘﾝｸﾞﾎﾟｽﾄ(1) 6
15 401-56135 POST(2)_RT SPRING RT ｽﾌﾟﾘﾝｸﾞﾎﾟｽﾄ(2) 6
16 401-56163 HOLDER_GEAR RT RT ｷﾞｱｰﾎﾙﾀﾞｰ 1
17 401-56293 GEAR_RT(1) ｷﾞｱｰ RT(1) 1
18 401-56294 GEAR_RT(2) ｷﾞｱｰ RT(2) 1
19 EZ3-681-308-02 BOLT (M2X6) HOLE HEXAGON ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6 14
20 401-55891 SHAFT_MAIN ﾒｲﾝｼｬﾌﾄ 1
21 401-55892 PLATE_MASK ﾏｽｸﾌﾟﾚｰﾄ 1
22 401-55893 HOLDER_BEARING ﾍﾞｱﾘﾝｸﾞﾎﾙﾀﾞ 1
23 401-55895 RETAINER_BEARING ﾍﾞｱﾘﾝｸﾞｵｻｴ 1
24 401-55909 RETAINER(1)_SEAL ｼｰﾙｵｻｴ(1) 1
25 401-55915 COLLAR_INNER SPLINE ｲﾝﾅｰｽﾌﾟﾗｲﾝｶﾗｰ 8
26 401-55916 COLLAR_BEARING ﾍﾞｱﾘﾝｸﾞｶﾗｰ 1
27 401-56130 HEAD_P8 P8 ﾍｯﾄ 1
28 401-56137 SHAFT_SECOND ｾｶﾝﾄﾞｼｬﾌﾄ 1
29 401-56138 GUIDE_SPOOL ｽﾌﾟｰﾙｶﾞｲﾄﾞ 8
30 401-56181 RETAINER_FILTER ﾌｨﾙﾀｰｵｻｴ 8
31 401-56412 BEARING(6705HW2RUC0) ﾍﾞｱﾘﾝｸﾞ(6705HW2RUC0) 1
32 401-56415 BEARING(S679HWZZSMC3) ﾍﾞｱﾘﾝｸﾞ(S679HWZZSMC3) 16
33 401-56424 MECHANICAL VALVE(MDV23-Z12-0304) ﾒｶﾊﾞﾙﾌﾞ(MDV23-Z12-0304) 8
34 401-56437 O_RING(P20) O ｰﾘﾝｸﾞ(P20) 1
35 401-56438 O_RING(P15) O-ﾘﾝｸﾞ(P15) 1
36 401-56439 O_RING(S28) O-ﾘﾝｸﾞ(S28) 1
37 401-56444 O RING(SOP22)_CAP ｷｬｯﾌﾟ O-ﾘﾝｸﾞ(SOP22) 1
38 401-56445 MINI Y PACKING(MYN-9) ﾐﾆ Y ﾊﾟｯｷﾝ(MYN-9) 1
39 401-56456
SMALL HEAD CAP SCREW(M3X8)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷｼｮｳｱﾀﾏﾎﾞﾙﾄ(M3X8) 10
40 401-56457 LOW HEAD SCREW(M1.4X3)_PRECISION INST ﾃｲﾄｳｾｲﾐﾂｺﾈｼﾞ(M1.4x3) 16
41 401-56459 LOW HEAD CAP SCREW(M3X6)_HEX SOCKET ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x6) 8
42 401-56540 COLLAR_INNER ｲﾝﾅｰｶﾗｰ 1
43 401-56627
LOW_SMALL HEAD CAP SCREW(M3X6)_HEAXGON S
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳｼｮｳｱﾀﾏﾎﾞﾙﾄ(M3x6) 4
44 401-56639
HEXAGON SOCKET SCREW(M1.6X2)_FLAT TYPE
ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ(M1.6x2)ﾋﾗｻｷ 2
45 401-56641 -SET SCREW(M2.3X1.6)_FLAT TYPE ｽﾘﾜﾘﾂｷﾄﾒﾈｼﾞ(M2.3x16)ﾋﾗｻｷ 16
46 401-56647 PAN HEAD SCREW(M1.4X2)_PRECISION INST ｾｲﾐﾂｷｷﾖｳﾅﾍﾞｺﾈｼﾞ(M1.4x2) 16
47 EZ7-683-481-04 BOLT HEXAGON SOCKET 2.5X4 6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4 8
48 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 8
49 EZ3-278-109-01 SPRING INNER SPLIN ｲﾝﾅ- ｽﾌﾟﾗｲﾝ ﾊﾞﾈ 8
50 EZ3-278-945-01 RETAINER (B) NOZZLE SPRING ﾉｽﾞﾙ ﾊﾞﾈ ｵｻｴ (B) 8
51 EZ3-681-308-02 BOLT (M2X6) HOLE HEXAGON ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6 2
52 401-55919 SPRINNG(1)_TORSION ﾄｰｼｮﾝﾊﾞﾈ(1) 8
53 401-56290 GEAR_RN(4) ｷﾞｱｰ RN(4) 8
54 401-56291 GEAR_RN(5) ｷﾞｱｰ RN(5) 8
