A-69 A20-3 【 RX-7R 】シングル搬送部ユニット - 幅調整 1 【 RX-7R 】 Single Conveyor unit - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 51 402-01640 SEP ARA TE COLLAR(SCSS1215C) ｾﾊﾟﾚｰﾄｶﾗｰ(SCSS1215C) 2 52 402-0833…

100%1 / 296
A-68
A20-3
【RX-7R】シングル搬送部ユニット-幅調整 1
【RX-7R】Single Conveyor unit - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 402-00904 PLATE(1)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(1) 2
2 402-00905 PLATE(2)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(2) 2
3 402-00907 BASE(1)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾍﾞｰｽ(1) 2
4 402-00908 BASE(2)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾍﾞｰｽ(2) 2
5 PH-0400105-S0 PARALLEL PIN TYPE B 4X10 平行ﾋﾟﾝ B 種 4X10 4
6 SB-1080002-00 BEARING
ころがり軸受
4
7 EZ1-492-208-11 AMPLIFIER SENSOR (FX-501) ｾﾝｻ ｱﾝﾌﾟ (FX-501) 2
8 EZ1-492-213-11 AMPLIFIER SENSOR (FX-502) ｾﾝｻ ｱﾝﾌﾟ (FX-502) 1
9 EZ-2177403-01 BELT TIMING (234-3GT-9) ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (234-3GT-9) 2
10 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) 2
11 EZ4-431-981-31 PIN (DIA. 4) PARALLEL ﾍｲｺｳ ﾋﾟﾝ ﾌｱｲ 4 ｼﾘ-ｽﾞ 4
12 EZ4-447-063-41 UNION (KQ2L08-01AS) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L08-01AS)
1
13 EZ4-452-347-01 LABEL (PLAIN) SERIAL NO.(1446) ｼﾘｱﾙ NO. ﾗﾍﾞﾙ (ﾑｼﾞ) (1446) 1
14 EZ4-453-826-01 PULLEY (P1110-015) (E) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-015) E 1
15 EZ4-453-828-21 BELT (1947-3GT-9) TIMING ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (1947-3GT-9) 1
16 EZ4-453-835-01 PLATE (MS-DIN-E) END ｴﾝﾄﾞ ﾌﾟﾚ-ﾄ (MS-DIN-E) 1
17 402-01116 CABLEVEYOR BRACKET(4R) ｹｰﾌﾞﾙﾍﾞｱﾌﾞﾗｹｯﾄ(4R) 1
18 402-00993 BEAM SENSOR BRACKET
ﾋﾞｰﾑｾﾝｻｰﾌﾞﾗｹｯﾄ
2
19 402-01117 CABLEVEYOR BRACKET(4L) ｹｰﾌﾞﾙﾍﾞｱﾌﾞﾗｹｯﾄ(4L) 1
20 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 8
21 EZ4-454-371-01 BRACKET (L) DUCT ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ L 2
22 EZ4-454-517-01 PIN (B4X16 SUS) PARALLEL ﾍｲｺｳ ﾋﾟﾝ (B4X16 SUS) 4
23 EZ4-455-708-01 BRACKET (C) DUCT ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ (C) 1
24 EZ4-455-733-01 WYE (KJU02-00) UNION
ﾕﾆｵﾝ ﾜｲ (KJU02-00)
12
25 EZ4-457-146-31 CONTROLLER (AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A) 12
26 EZ4-488-445-01 RAIL DIN (60) DIN ﾚ-ﾙ (60) 1
27 EZ4-701-529-01 TIE MOUNT (MB1) ﾀｲﾏｳﾝﾄ (MB1) 39
28 EZ4-702-261-02 BOLT HEXAGON SOCKET (M3X6) ﾛﾂｶｸ ｱﾅﾂｷ ｻﾗ ﾎﾞﾙﾄ (M3X6) 39
29 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) 167
30 EZ4-722-956-01 LABEL(SILVER) BLANK
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10)
28
31 EZ7-630-003-47 TUBE(TU0425B-100-X3) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0425B-100-X3) 0.12
32 EZ7-630-003-55 TUBE (TU0212B-20) 2MMX20M BLK ﾁﾕ-ﾌﾞ(TU0212B-20) 2MMX20M BLK 17.31
33 EZ7-682-247-09 SCREW +K 3X6 SCREW +K 3X6 9
34 EZ7-682-249-09 SCREW +K 3X10 ﾈｼﾞ +K 3X10 30
35 EZ7-683-401-04 BOLT HEXAGON SOCKET 3X4 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4 26
36 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
65
37 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 14
38 EZ7-683-405-04 BOLT HEXAGON SOCKET 3X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10 2
39 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 14
40 EZ7-683-420-04 BOLT HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 40
41 EZ7-683-422-04 BOLT HEXAGON SOCKET 4X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X14 48
42 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ
33
43 EZ7-683-427-04 BOLT HEXAGON SOCKET 4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25 4
44 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 3
45 EZ7-683-435-04 BOLT HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 68
46 BT-0200121-EB URETHANE TUBE BLACK 2X1.2 ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 黒 2X1.2 12
47 401-61137 STRAIGHT(KQ2H02-00A) ｽﾄﾚｰﾄ (KQ2H02-00A) 8
48 PJ-3040851-01 ELBOW UNION 8XPT1/8
ｴﾙﾎﾞ ﾕﾆｵﾝ 8XPT1/8
1
49 401-90503 DRIVE_SHAFT ｸﾄﾞｳｼﾞｸ 2
50 401-90407 SCREW_SHAFT ｽｸﾘｭｰｼｬﾌﾄ 2
A-69
A20-3
【RX-7R】シングル搬送部ユニット-幅調整 1
【RX-7R】Single Conveyor unit - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 402-01640 SEPARATE COLLAR(SCSS1215C) ｾﾊﾟﾚｰﾄｶﾗｰ(SCSS1215C) 2
52 402-08330 CABLEVEYOR_SINGLE C/V ｼﾝｸﾞﾙ C/V ﾖｳｹｰﾌﾞﾙﾍﾞﾔ 2
53 402-01175 RAIL SUPPORT HOLDER(2) ﾚｰﾙｻﾎﾟｰﾄﾎﾙﾀﾞｰ(2) 2
54 EZ4-454-502-01 GUIDE (MHS15C3R640S2ET213) ｶﾞｲﾄﾞ (MHS15C3R640S2ET213) 3
55 402-09683 CONVEYOR BASE(2) ｺﾝﾍﾞｱｰﾍﾞｰｽ(2) 1
56 402-08612 RAIL SUPPORT RIB(1)
ﾚｰﾙｻﾎﾟｰﾄﾘﾌﾞ(1)
4
57 402-08613 RAIL SUPPORT RIB(2) ﾚｰﾙｻﾎﾟｰﾄﾘﾌﾞ(2) 4
58 SM-6031602-TN SCREW M3 L=16 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=16 24
59 SM-6032002-TN SCREW M3X0.5 L=20 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X0.5 L=20 8
60 SM-6051602-TN SCREW ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ 28
61 PC-0122010-00 SPEED CONTROLLER ｽﾋﾟｰﾄﾞ ｺﾝﾄﾛｰﾗ 4
62 402-07022 SOLENOID VALVE ASSY_SINGLE
ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY(ｼﾝｸﾞﾙ)
1

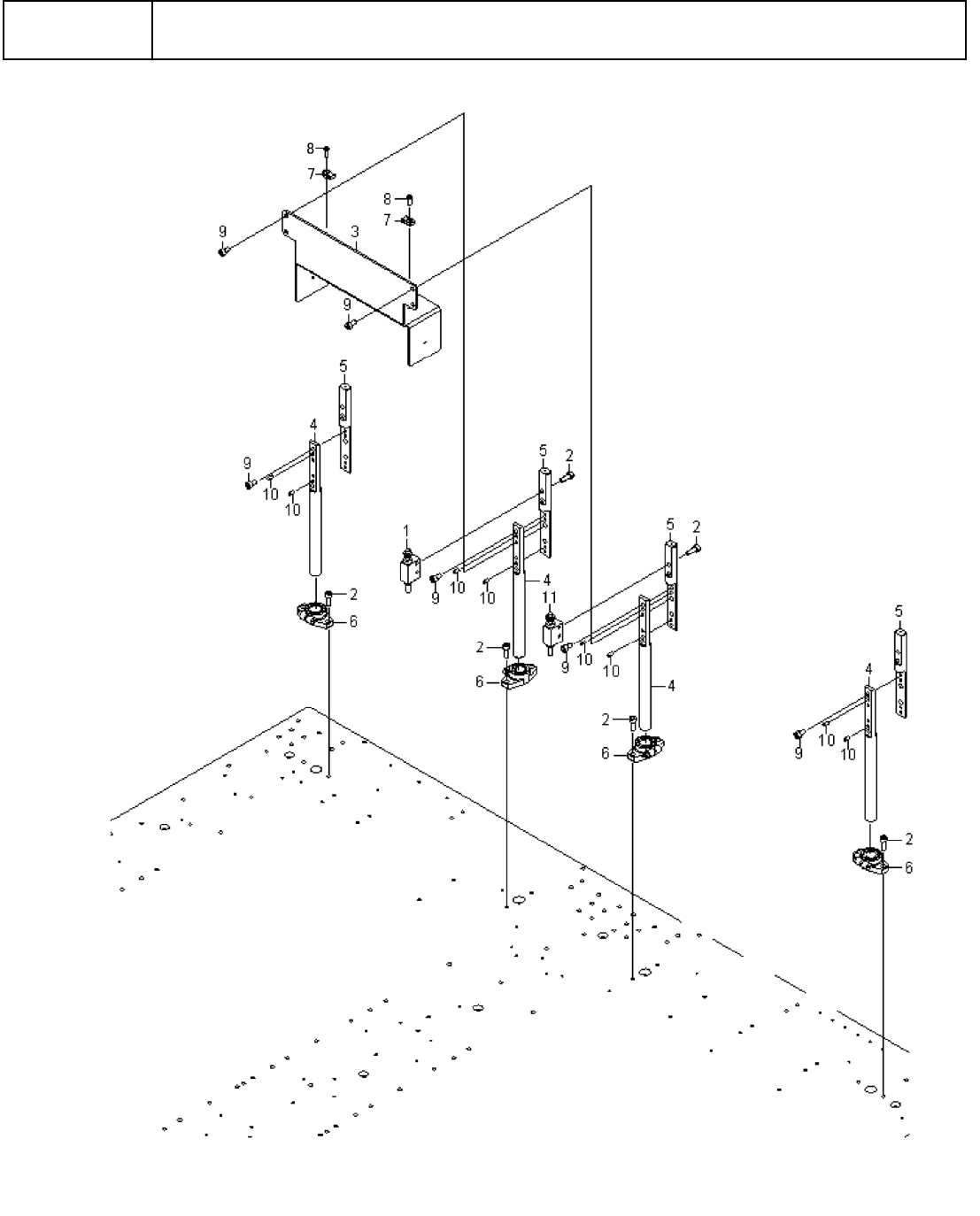

A-70
A21
【RX-7】搬送部ユニット-幅調整 2
【RX-7】Conveyor unit - 2
