A-3
A1

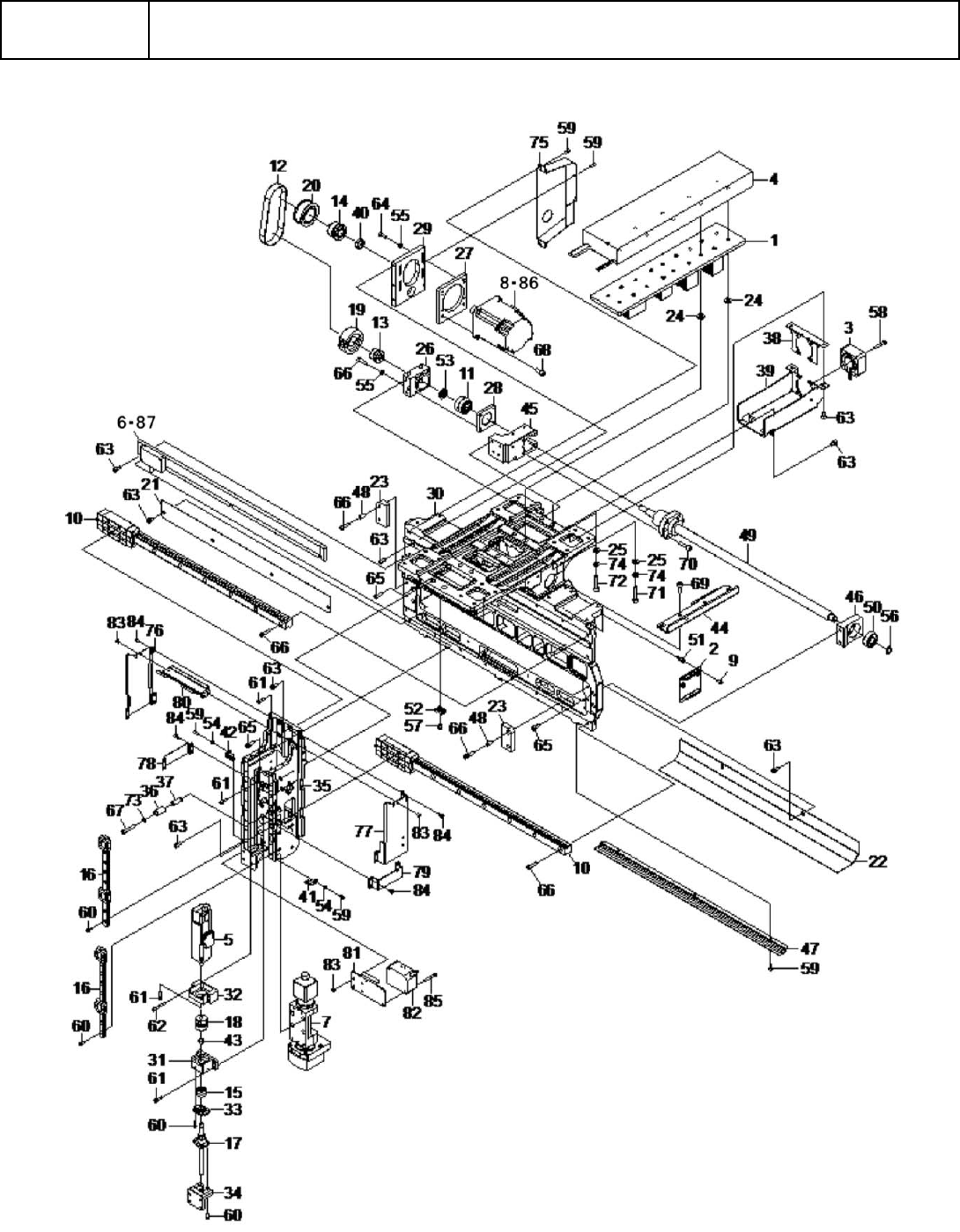

【共通】X フレーム ASSY 左
【COMMON】X frame assy - Left
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
55 EZ7-623-210-22 SW 4,TYPE 2 SW 4,TYPE 2 8
56 EZ7-624-198-21 STOP RING 10, TYPE C C ｶﾞﾀ ﾄﾒﾜ 10 (ｼﾞｸ ﾖｳ) 1
57 EZ7-682-160-01 SCREW +P 4X6 +P 4X6 1
58 EZ7-682-954-01 SCREW +PSW 3X25 +PSW 3X25 4
59 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 9
60 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 26
61 EZ7-683-406-04 BOLT,HEXAGON SOCKET 3X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12 12
62 EZ7-683-411-04 BOLT,HEXAGON SOCKET 3X25 6 ｶｸ ｱﾅ ﾂｷ ﾎﾞﾙﾄ 3X25 4
63 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
24
64 EZ7-683-420-04 BOLT,HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 4
65 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 8
66 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16 24
67 EZ7-683-427-04 BOLT,HEXAGON SOCKET 4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25 4
68 EZ7-683-436-04 BOLT,HEXAGON SOCKET 5X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12 4
69 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14
3
70 EZ7-683-440-04 BOLT,HEXAGON SOCKET 5X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X20 4
71 EZ7-683-442-04 BOLT,HEXAGON SOCKET 5X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X25 6
72 EZ7-683-444-04 BOLT,HEXAGON SOCKET 5X30 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X30 4
73 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 4
74 EZ7-688-005-11 W 5, MIDDLE W 5, MIDDLE 10
75 EZ4-455-213-01 PULLEY COVER X AXIS (L)
ﾌﾟ-ﾘ- ｶﾊﾞ- X ｼﾞｸ (L)
1
76 EZ4-471-955-01 CABLE CLAMP UPPER (LZ-R) ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (LZ-R) 1
77 EZ4-471-954-01 CABLE CLAMP UPPER (LZ-L) ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (LZ-L) 1
78 EZ4-455-282-01 CLAMP S Z, CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ S Z 1
79 EZ4-455-281-01 CLAMP L Z, CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ L Z 1
80 EZ4-471-956-01 CABLE CLAMP BRACKET (LZ) ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ ﾌﾞﾗｹﾂﾄ (LZ) 1
81 EZ4-455-280-01 PLATE Z, SENSOR (L)
ｾﾝｻ- ﾌﾟﾚ-ﾄ Z (L)
1
82 EZ1-492-214-11 SENSOR, LASER (ZX2-LD50 0.5M) ﾚ-ｻﾞ- ｾﾝｻ (ZX2-LD50 0.5M) 1
83 EZ4-453-818-01 BOLT (CBSTSR3-5) ﾁﾖｳ ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTSR3-5) 8
84 EZ7-683-402-04 BOLT,HEXAGON SOCKET 3X5 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5 18
85 EZ7-682-154-01 SCREW +P 3X25 +P 3X25 2
86 401-55362 MOTOR_ASSY_X_L ﾓｰﾀｱｯｼｰ X_L 1
87 401-59983 SCALE ASSY (XL)
ｽｹ-ﾙ ASSY (XL)
1 RX-7R
A-4
A2
【共通】X フレーム ASSY 右
【COMMON】X frame assy - Right
