ASYMTEK Quantum Q-6800 Series
Automated Fluid Dispensing System with Advanced Process Controls
Flexibility. The Quantum
®
Q-6800 Series offers
uncompromising quality, speed, flexibility and value
for batch and inline dispensing applications with mid-
to higher-level complexity.
Advanced Process Control. The Quantum Series
includes advanced process management features such
as a fluid weight scale, patented Mass Flow Control
(MFC)/Calibrated Process
Jetting
™
(CPJ) closed-loop process control, range-
finding laser height sensor, digital vision system with
enhanced fiducial image processing, and
programmable substrate heat capability.
Expert Value and Support. Our worldwide
engineering, applications development and
technical service network provide expert support
from initial process development through full-scale
production.
Features and Benefits
Large dispense area (423 x 458 mm)
ideal for dual-valve dispensing and a
wide-range of substrate sizes
Range-finding laser height sensor
enables fast, non-contact dispense
height measurement
Digital vision system with enhanced
vision software for superior imaging
detection
Patented CPJ process control
automatically compensates for
changes in fluid viscosity and higher
yield.

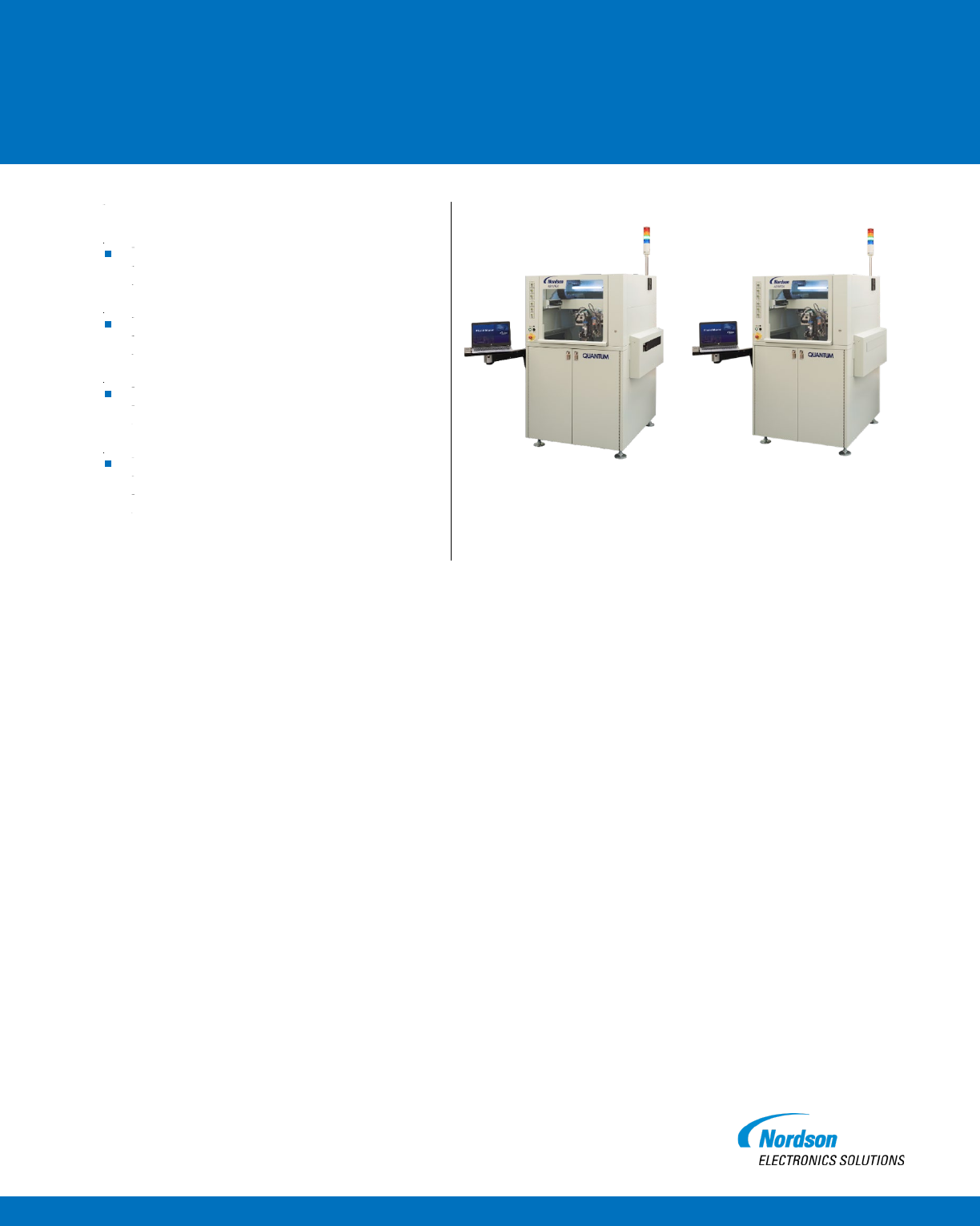

Quantum Q-6800
Series Batch
Quantum Q-6800
Series Inline
Page 2 of 4
Quantum Q-6800 Series Features
ASYMTEK applicator technology and Quantum Series platform capabilities combine to deliver a reliable
and cost-effective solution for PCBA, SMT and other demanding electronic assembly applications.
Recommended Applications
•
CSP, BGA and board-level underfill
• Surface mount adhesives
• Corner and edge bonding
•
Dam and fill
•
Potting and encapsulation
• Conductive epoxy
• Case assembly
•
Larger board or substrate sizes
Delivering Technology + Process Capability + Global Support
With an established reputation for quality, ASYMTEK
Applicators offer flexibility and lower cost of
ownership.
Patented Mass Flow Control
(MFC)/Calibrated Process Jetting
(CPJ) ensure the right amount of
material is dispensed for each part from
the beginning to the end of the
production run.
Digital Vision System incorporates an easy-to-use
powerful vision algorithm to enable quick finding
and teaching of fiducials even when targets vary in
size, contrast or rotation.
Dynamic Dispense Control (DDC)
provides precise control of the valve for
more accurate placement of dots and
lines.
NexJet
®
8
Jetting System
DispenseJet
®
Heli-Flow
®
Pump
With DDC
Without DDC
Page 3 of 4
Quantum Q-6800 Series Specification Highlights
Standard
Available
•
Range-finding Laser Height sensor
• Calibration Station
• Digital Vision system
• Weight Scale with CPJ/MFC
• Single applicator support
•
Dual applicator support
• Dual-lane configuration
• Fids-on-the-Fly
™
software
• Pre- and post-queue stations
• SECS/GEM interface
Dispense Area (X-Y)
1
423 x 458 mm (16.7 x 18.0 in.), single applicator with offsets for vision and height sense;
tooling size dependent
System Dimensions and Weight
System footprint: 1100 x 1241 mm (43.3 x 48.8 in.)
System weight
2
: 435-490 kg (960-1080 lbs.)
Standards Compliance
SEMI-S2; SEMI-S8; SMEMA; CE
Board Handling
1
(not applicable for Batch configuration)
Max. board/carrier length:
• One station: 600 mm (23.6 in.)
• Three stations: 320 mm (12.6 in.)
Min. board/carrier length: 25 mm (0.98 in.)
Max. board/carrier width:
• Single lane: 520 mm (20.4 in.)
• Dual lane: up to 220 mm (8.6 in.)
Min. board/carrier width: 25 mm (0.98 in.)
Max. board/carrier thickness: 12 mm (0.5 in.)
(1) Contact factory regarding other travel distance, board/carrier size compatibility
(2) System weight varies depending on configuration
