5 Gantries SIPLACE 80 S/F/G Service Manual
Edition 04/97
5 - 4

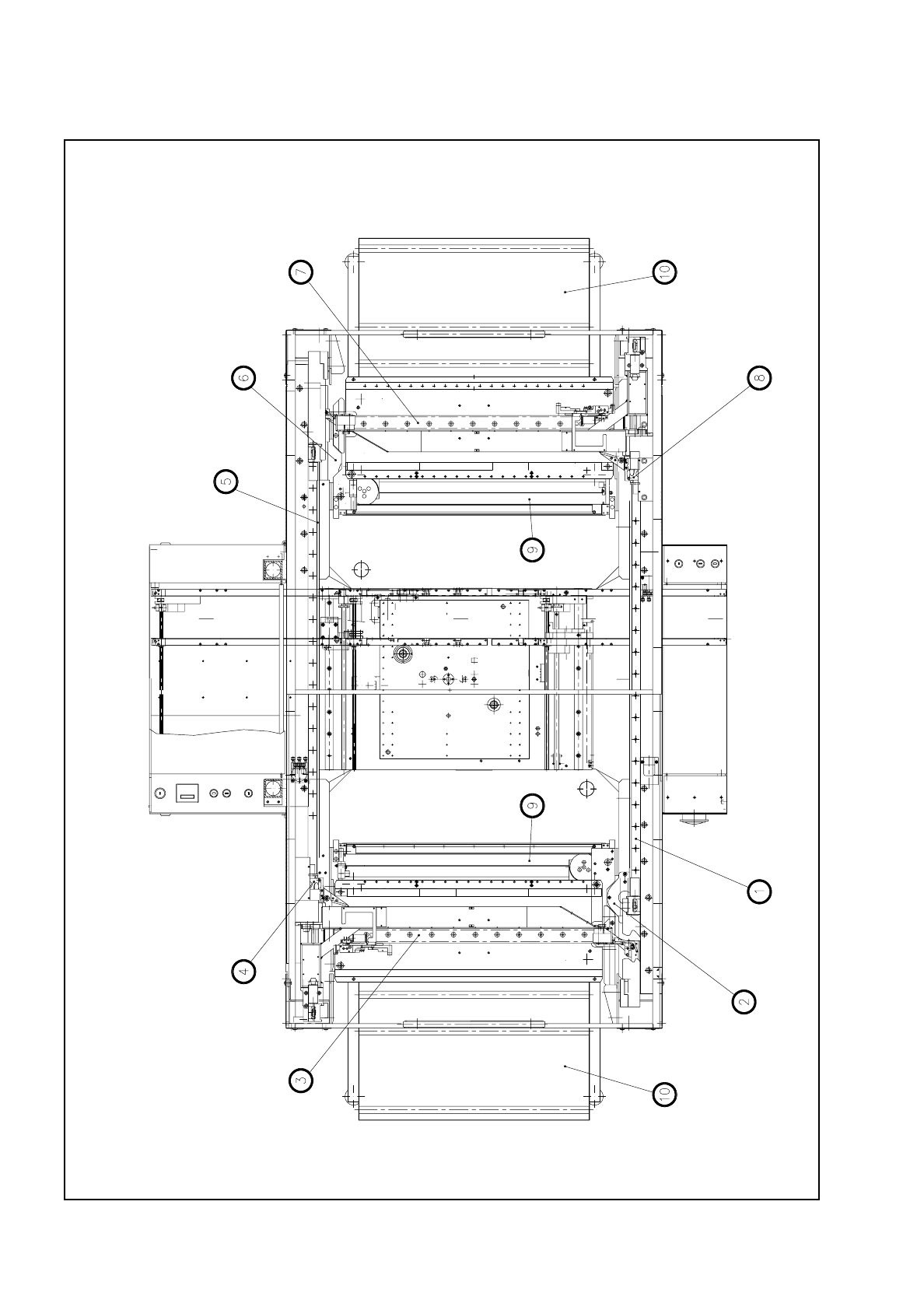

Fig. 5.1.1 General view of gantries from above
SIPLACE 80 S/F/G Service Manual 5 Gantries
Edition 04/97
5 - 5
5.1.4 Preparatory Work
We recommend that you always remove the components table before working on the gantry (see Section
12.1 “Removing and Installing the Component Change-over Table“). This will make your servicing work much
easier to perform.
5.1.4.1 Removing and Installing the Changeover Table
●
Disconnect the changeover table’s electrical and pneumatic connections.
●
Open the locking lever.
●
With a lift truck lift the components table over the taper pins and move the changeover table out of the
machine.
●
To re-install the changeover table proceed in the reverse sequence of operations.
Key to Fig. 5.1.1.
1 Y axis, gantry 2 2 Y-axis drive motor, gantry 2
3 X axis, gantry 1 4 X-axis drive motor, gantry 1
5 Y axis, gantry 1 6 Y-axis drive motor, gantry 1
7 X axis, gantry 2 8 X-axis drive motor, gantry 2
9 Used tape cutters 10 Components tables
