8 IC Head SIPLACE 80S/F/G Service M anual Edition 01/97 8 - 16 8.4 Servicing Work o n the Dr Axis 8.4.1 Too ls, Eq uipment an d Consum ables 8.4.2 Spare Parts 8.4.3 Replace Motor with Tacho for the D r Axis See item 4 in…
SIPLACE 80S/F/G Service Manual 8 IC Head
Edition 01/97
8 - 15

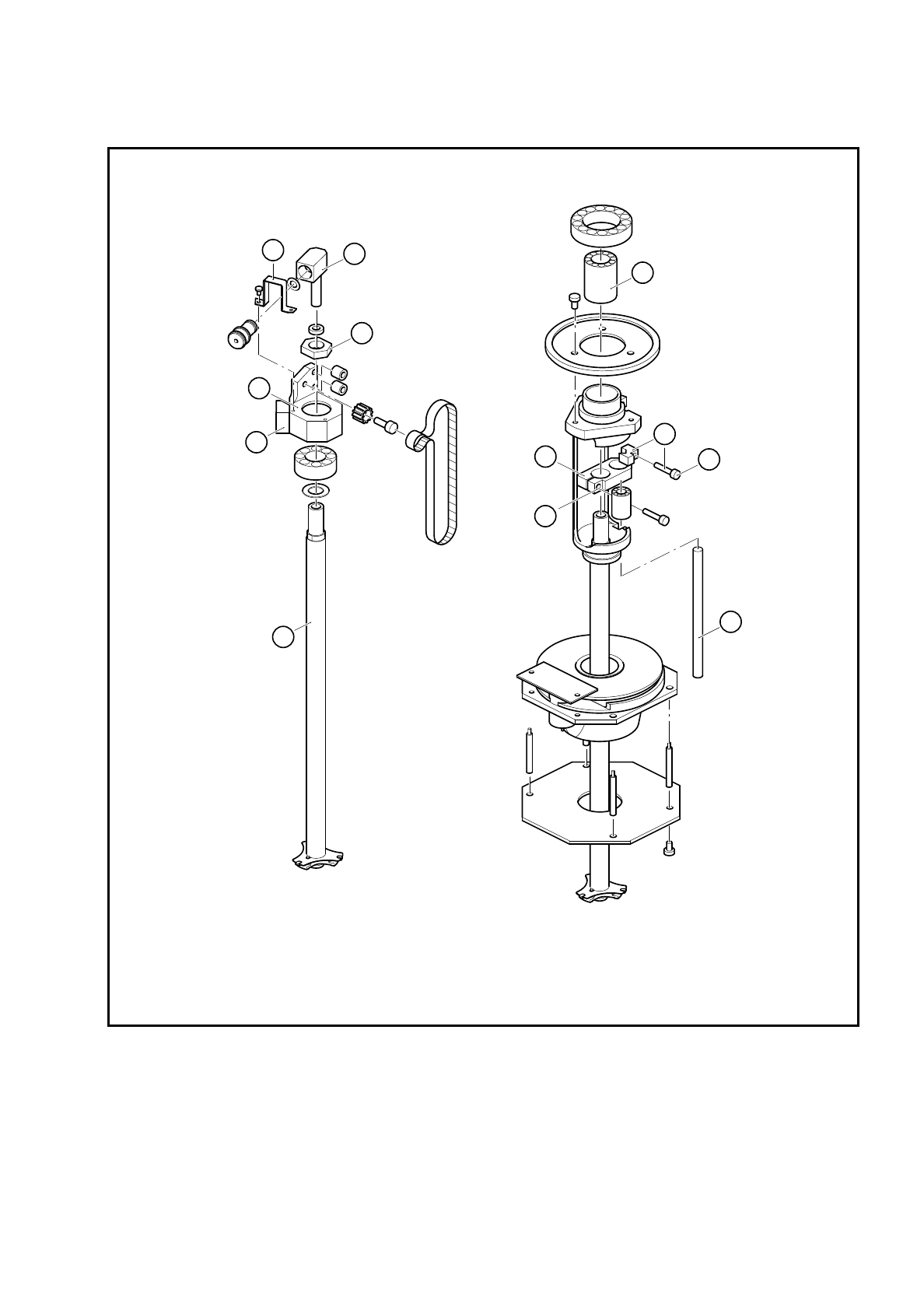

Fig. 8.3.2 Servicing work on the IC head
Key to Fig. 8.3.2
1 Linear ball bearing 2 Clamping piece
3 Hexagon socket head screw 4 Precision shaft 5 x 76.5
5 Hexagon socket head screw (2 mm) 6 Clamping piece
7 Clip 8 Vacuum connector
9 Hexagon nut 10 Anti-rotation lock
11 Bearing housing 12 IC head sleeve
5
4
3
2
1
6
9
8
7
10
11
12
8 IC Head SIPLACE 80S/F/G Service Manual
Edition 01/97
8 - 16
8.4 Servicing Work on the Dr Axis
8.4.1 Tools, Equipment and Consumables
8.4.2 Spare Parts
8.4.3 Replace Motor with Tacho for the Dr Axis
See item 4 in Fig. 8.3.1 page 8 - 12
To disassemble the motor
–
Detach all electrical cables to and from the motor.
–
Loosen the two M3 hexagon socket head screws fixing the motor in place.
–
Remove the motor from the top.
To reassemble the motor
–
Clean the rubber lining of the friction wheel (item 3) and the ring (Ø 12 mm) on the motor shaft with isopro-
pyl alcohol.
–
Replace the motor and fix in place.
Ensure that there is good contact between the motor drive shaft and the friction wheel.
–
Check that the axis is moving correctly with reference to the Adjusting Instructions.
From item number
Hexagon socket head screw key, set
SITEST program
Adjusting Instructions
Nozzle, type 416 00322545-01
Isopropyl alcohol
From item number
Motor/tacho (dr axis) 00306383-02
SIPLACE 80S/F/G Service Manual 8 IC Head
Edition 01/97
8 - 17
8.4.4 Calculate the Zero Point Correction for the D Axis
PLEASE NOTE
The starting value on the axis display should be approximately 0 if the pin of the nozzle support is pointing
towards component table no. 3.

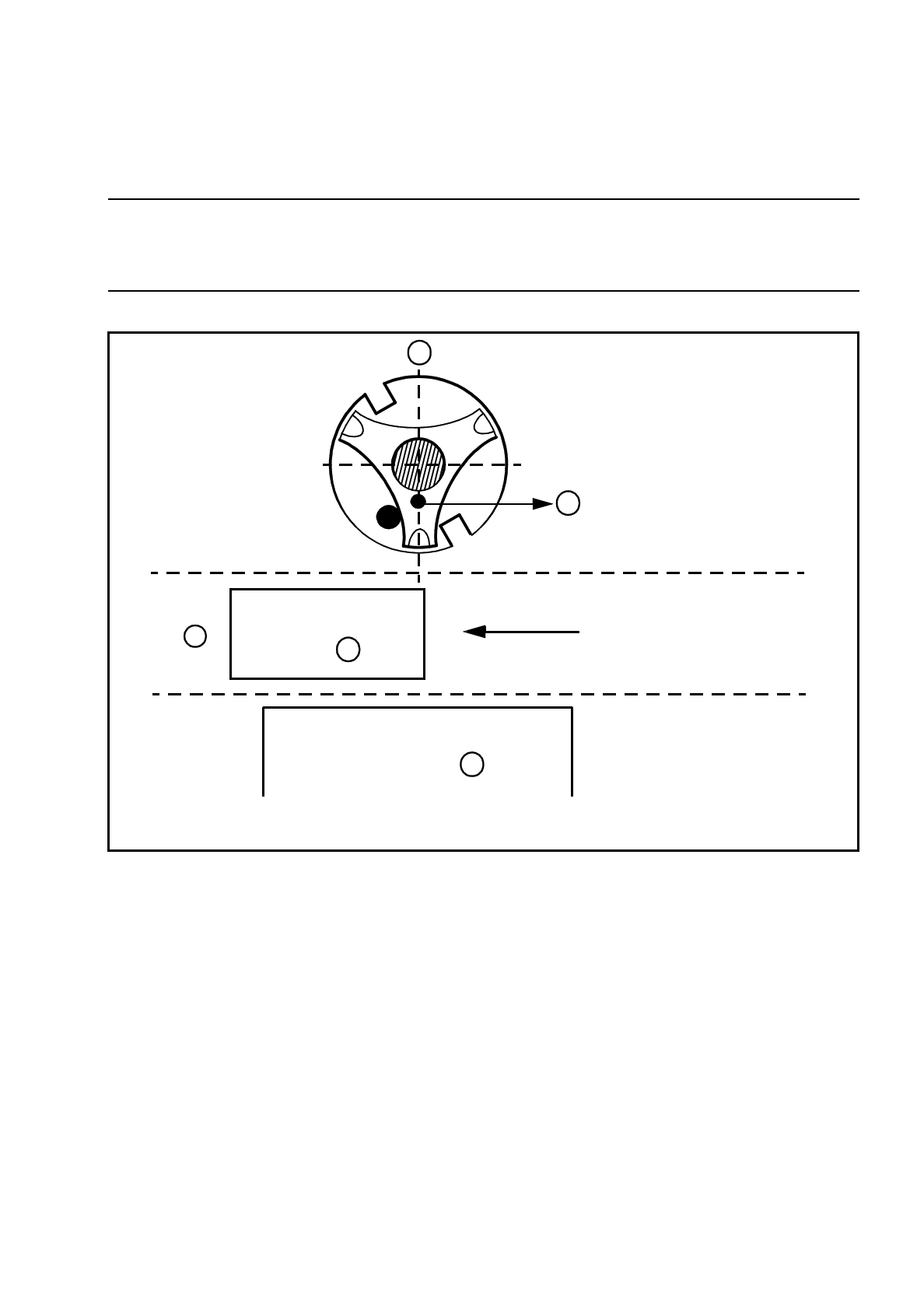

Fig. 8.4.1 0° position of the dr axis
Key to Fig. 8.4.1
To accurately calculate the zero point correction value, you require the IC head camera and a type 416 noz-
zle.
●
Place the nozzle in the correct position, as shown in Fig. 8.4.2.
●
To ensure that the nozzle is clearly visible to the IC camera, mark the tip of the nozzle with washable white
paint.
A 0° position of the dr axis
B The pin of the star should point towards component table 3
C PCB transport direction
D Component table 3
PCB
A
B
C
D
Table 3
