SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 7

9.2 Structure of the Revolver Head

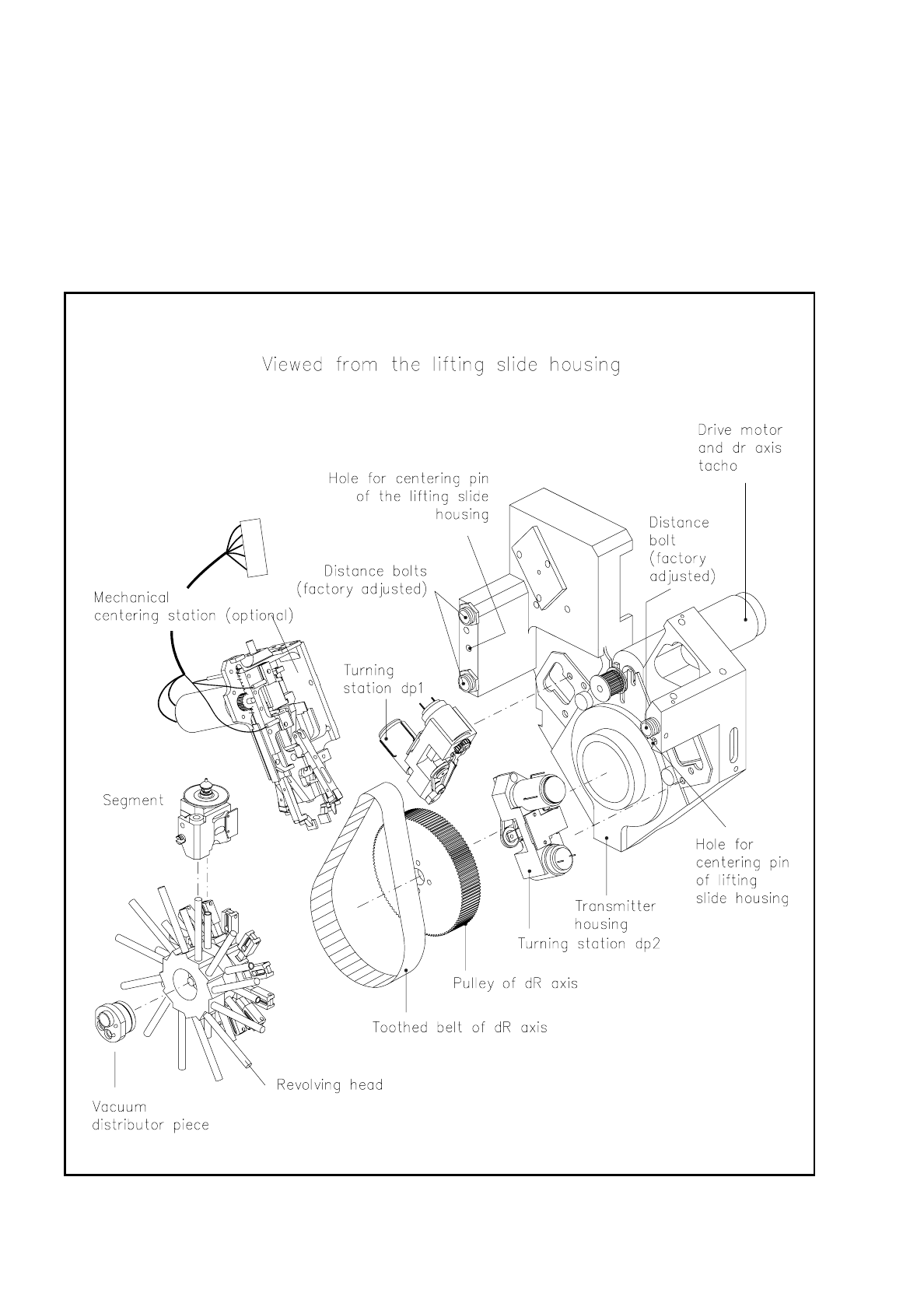

Fig. 9.2.1 Assemblies of the revolver head, part 1

9 Revolver Head SIPLACE 80S/F/G Service Manual

Edition 04/97

9 - 8

The revolver head consists of the following main assemblies (see Fig. 9.2.1 to Fig. 9.2.3):

–

Lifting slide housing (Fig. 9.2.1)

–

Encoder housing with revolver head (see Fig. 9.2.1 to Fig. 9.2.3) and optical components and board cen-

tering camera, lens and lighting

–

Segments (Fig. 9.2.2)

–

As an option, a mechanical centering station and CRDL testing station can be fitted as an upgrade.

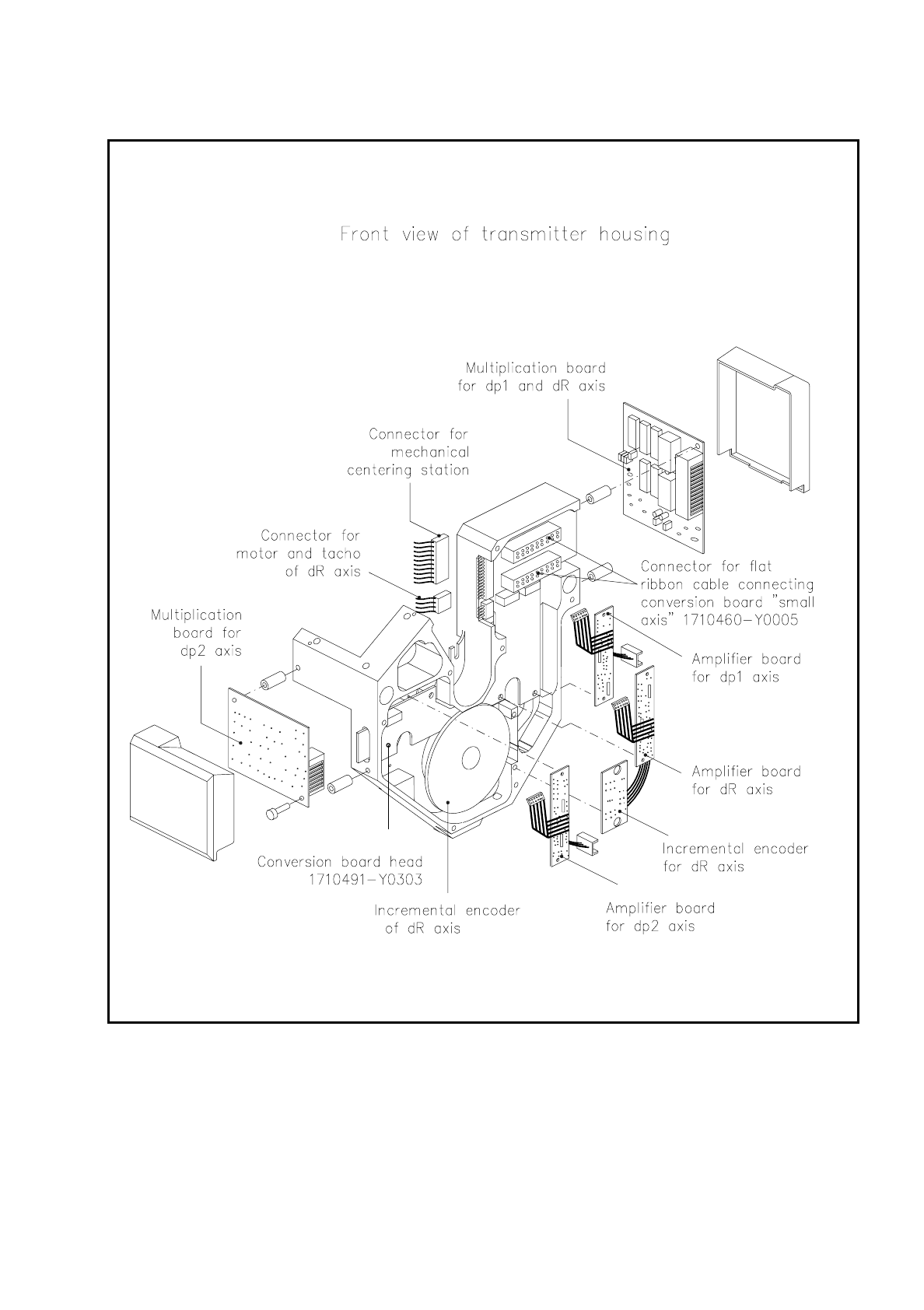

Fig. 9.2.2 Assemblies of the revolver head, part 2

SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 9

Fig. 9.2.3 Assemblies of the revolver head, part 3
