9 Revolver Head SIPLACE 80S/F/G Service Manual Edition 04/97 9 - 46 9.6.1 Module Overview of Encoder Housing "Complete" with Revolver Head Fig. 9.6. 3 and Fi g. 9.6.4 show the mo dules of the enc oder hou sing …

SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 45

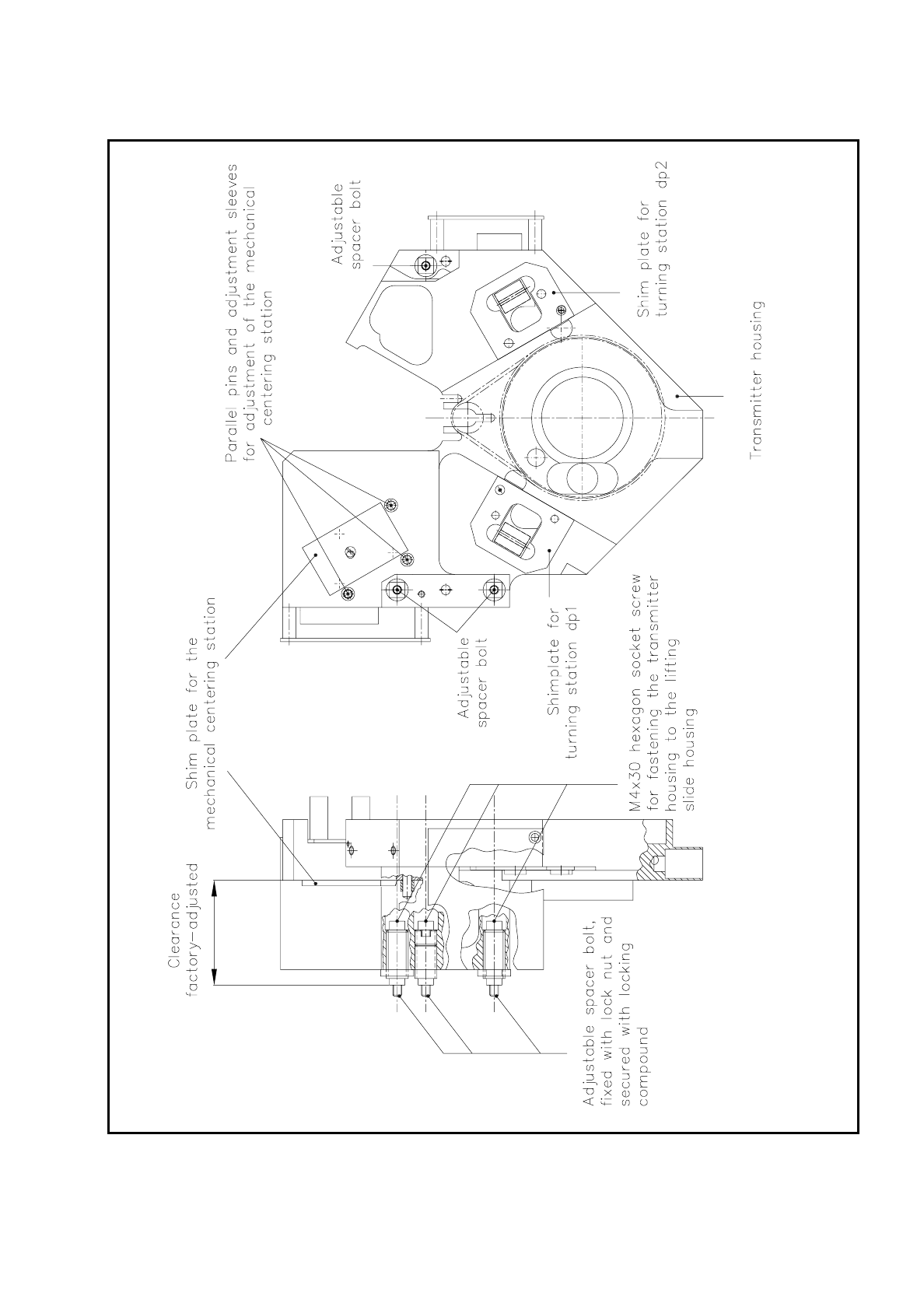

Fig. 9.6.2 Adjustment of the encoder housing at the lifting slide housing

9 Revolver Head SIPLACE 80S/F/G Service Manual

Edition 04/97

9 - 46

9.6.1 Module Overview of Encoder Housing "Complete" with Revolver

Head

Fig. 9.6.3 and Fig. 9.6.4 show the modules of the encoder housing "complete" with revolver head.

Fig. 9.6.3 Assemblies of the encoder housing “complete“ - rear view

SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 47

The following modules form the main parts of the encoder housing "complete" (see Fig. 9.6.3):

See Fig. 9.6.3: Rear view

–

Encoder housing with three spacer bolts for the precise adjustment of the clearances encoder

housing and the lifting slide housing

–

Rotational drive of the revolver head with

●

drive motor with tacho

●

toothed belt pulley, 21 teeth

●

toothed belt

●

toothed belt pulley, 112 teeth

–

Turning stations dp1 and dp2

–

Revolver headRevolver head

–

Vacuum distributor piece for the revolver head

See Fig. 9.6.4: Front view

–

Conversion board "Head" 1710491-Y0303

–

Three amplifier boards for the scanning units of dp1, dp2 and revolver head

–

Quintuple board dp2 1710491-Y0305

–

Quintuple board dp1 and revolver head 1710491-Y0304

–

Encoder for the revolver head (dR axis) with

●

Incremental disk and

●

Scanner unit for the revolver head

–

Housing cover with camera mount for the PCB camera

–

Cover with flap
