9 Revolver Head SIPLACE 80S/F/G Service M anual Edition 04/97 9 - 116 Fig. 9.15.3 Checking the s egment before insertion 9.15.12 Inserting the segment ● Clean the v acuum tube of th e star us ing th e segment clean ing c…
SIPLACE 80S/F/G Service Manual 9 Revolver Head
Edition 04/97
9 - 115
9.15.8 Replacing the spacer ring, spring washer and upper deep-groove
ball bearing
●
Dismantle and install the sleeve as described in sections 9.15.6 and 9.15.7 and replace the spacer ring,
spring washer or the upper deep-groove ball bearing beneath it.
9.15.9 Installing the sealing piston
●
Clean the sealing piston and O-ring using the segment cleaning cloth.
●
Replace the O-ring, if necessary.
●
Wipe the sealing piston with a lint-free cloth.
●
Carefully insert the sealing piston into the hole in the sleeve as far as the stop.
●
Wipe the cam shaft with the segment cleaning cloth.
●
Push in the cam shaft. Ensure that the pin of the cam shaft engages in the ring groove of the sleeve.
●
Turn the cam shaft and check that the sealing piston moves freely.
9.15.10 Inserting the nozzle
●
Insert the nozzle.
9.15.11 Checking the segment before insertion
Check the following points before inserting the segment in the star (see Fig. 9.15.3):
–
Is the sealing piston fully retracted? (A)
–
Is the slot in the cam shaft horizontal? (B)
–
Is the cam shaft engaged in the spring plunger? (B)
–
Is the scale disk free from oil and grease? (C)
Wipe away any dust with a clean, dry cloth. (D)
–
Is the scale disk undamaged? (C)
–
Is the circumference of the friction wheel free from oil and grease residues? (D)
Clean the surface with ethyl alcohol, if necessary.
–
Is the sealing slide bush free from contamination? (E)
If necessary, clean it with a pipe-cleaner. To do this, moisten the pipe-cleaner with the cleaning agent on
the segment cleaning cloth and afterwards wipe the sealing slide bush with a dry cloth.
9 Revolver Head SIPLACE 80S/F/G Service Manual
Edition 04/97
9 - 116

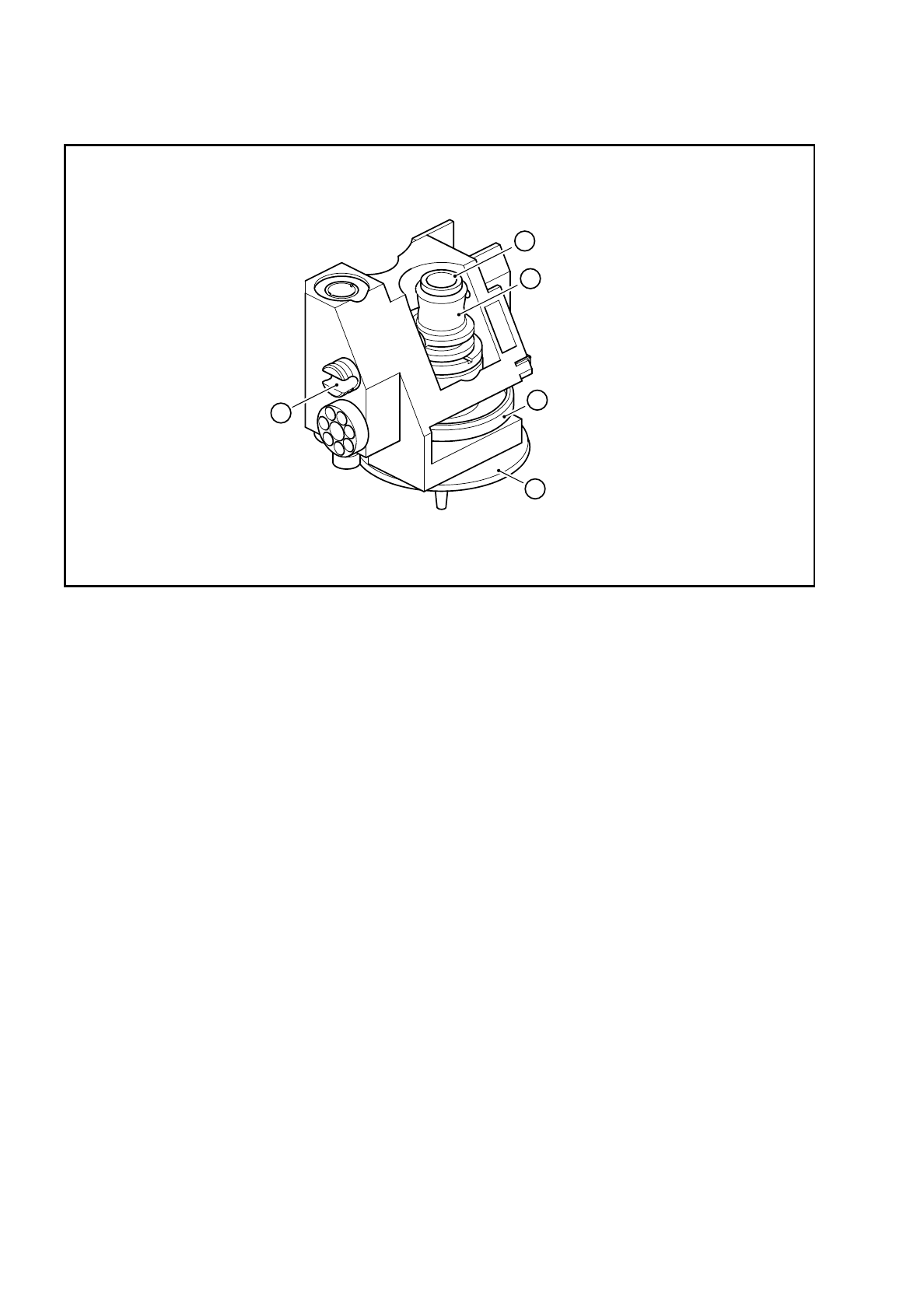

Fig. 9.15.3 Checking the segment before insertion
9.15.12 Inserting the segment
●
Clean the vacuum tube of the star using the segment cleaning cloth.
●
Use the segment changing device to insert the segment.
9.15.13 Adjustments
●
Use the SITEST program to measure the segment.
E6.1
D
C
B
A
E
SIPLACE 80S/F/G Service Manual 9 Revolver Head
Edition 04/97
9 - 117
9.16 Service work on turning station dp1 and dp2
9.16.1 Tools, equipment and consumables
9.16.2 Spare parts
From item number
Set of screwdrivers
Hot air gun
Diagonal cutter
Soldering iron
0.15 mm feeler gauge
Ethyl alcohol
Unimoly GL82 lubricating grease
00313490-01
Cable ties
Number in
Fig. 9.16.1.
From item number
Rotary drive
1 00303925-04
Combined DC motor / tacho with driving wheel
2 00327482-01
DC motor, complete
3 00323190S01
Toothed wheel as shown in drawing
4 00300128-03
BERO 3RG 4603 2A B00/ 3.0 mm/SN=0.6mm/1S
5 00303945-01
BERO clamping disc
6 00315945-01
Toothed lever
7 00300127-04
Toothed lever and toothed wheel for rotary drive
7 + 4 00321472-01
O-ring 19 x 1.5 E70 B243E
8 00327165-01
Conversion board - ’Turn nozzle I’
9 00300015-01
Scanning unit for the dp axis / amplifier
10 00201455-01
