本说明书的构成
1
本说明书的构成
主目录
本说明书的构成 .................................................................................................. 1
主目录 .................................................................................................. 1
第 14 章. Board .................................................................................................. 3
14.1. PC Rack .................................................................................................. 3
14.1.1. 所需工具 .................................................................................................... 3
14.1.2. PC Rack 位置 ............................................................................................ 3
14.1.3. PC Rack Board 的更换步骤 ....................................................................... 3
14.1.4. HDD 的更换步骤 ........................................................................................ 6
14.2. Head .................................................................................................. 7
14.2.1. 所需工具 .................................................................................................... 7
14.2.2. Head IF Board / Head Motor IF Board 位置 ............................................... 7
14.2.3. Head IF Board 的更换步骤 ......................................................................... 7
14.2.4. Head Motor IF Board 的更换步骤 ............................................................... 9
14.3. Y Frame ................................................................................................ 10
14.3.1. 所需工具 .................................................................................................. 10
14.3.2. Head Z Motor Driver / Step Driver / Axis IO Board 位置 ........................... 10
14.3.3. Head Z Motor Driver 的更换步骤 .............................................................. 10
14.3.4. Axis IO Board 的更换步骤 ........................................................................ 13
14.3.5. Step Driver 的更换步骤 ............................................................................ 15
14.4. Feeder IF Board / Feeder Input EXT Board ............................................ 17
14.4.1. 所需工具 .................................................................................................. 17
14.4.2. Feeder IO Board / Feeder Input EXT Board 位置 ..................................... 17
14.4.3. Feeder IO Board / Feeder Input EXT Board 的更换步骤 .......................... 17
14.5. Vision IF Board ....................................................................................... 20
14.5.1. 所需工具 .................................................................................................. 20
14.5.2. Vision IF Board 位置 ................................................................................ 20
14.5.3. Vision IF Board 的更换步骤 ..................................................................... 20
14.6. Axis Sensor Board .................................................................................. 23
14.6.1. 所需工具 .................................................................................................. 23
14.6.2. Axis Sensor Board 位置 ........................................................................... 23
14.6.3. Axis Sensor Board 的更换步骤 ................................................................ 23
14.7. CAN Conveyor Board / Conveyor Sub IF Board ..................................... 26
Advanced High Speed Flexible Mounter
2
14.7.1. 所需工具 .................................................................................................. 26
14.7.2. CAN Conveyor Board / Conveyor Sub IF Board 位置............................... 26
14.7.3. CAN Conveyor Board 的更换步骤 ............................................................ 26
14.7.4. Conveyor Sub IF Board 的更换步骤 ......................................................... 29
14.8. Conveyor Power Board ........................................................................... 31
14.8.1. 所需工具 .................................................................................................. 31
14.8.2. Conveyor Power Board 位置 .................................................................... 31
14.8.3. Conveyor Power Board 的更换步骤 ......................................................... 31
14.9. Axis IO Board .......................................................................................... 33
14.9.1. 所需工具 .................................................................................................. 33
14.9.2. Axis IO Board 位置 .................................................................................. 33
14.9.3. Axis IO Board 的更换步骤 ........................................................................ 33
14.10. Safety Control Board ............................................................................... 36
14.10.1. 所需工具 .................................................................................................. 36
14.10.2. Safety Control Board 位置 ....................................................................... 36
14.10.3. Safety Control Board 的更换步骤 ............................................................. 36
Board
3
第 14 章. Board
14.1. PC Rack
14.1.1. 所需工具
十字型(+)螺丝刀、一字型(-)螺丝刀
T型扳手或六角扳手
14.1.2. PC Rack位置
14.1.3. PC Rack Board的更换步骤
1. 正常结束 PC 后，关闭设备正面的主开关(Main Switch)。
2. 必须关闭(OFF)设备的主电源开关。
警告
维修
(Service)
前，关闭
(OFF)
设备正面下端的电源开关、关闭
(OFF)
设备
背面下端的主电源开关。否则，可能会受到严重伤害。必须在切断了设
备电源的状态下进行维修。
警告
维修(Service)前必须戴上防静电手套。

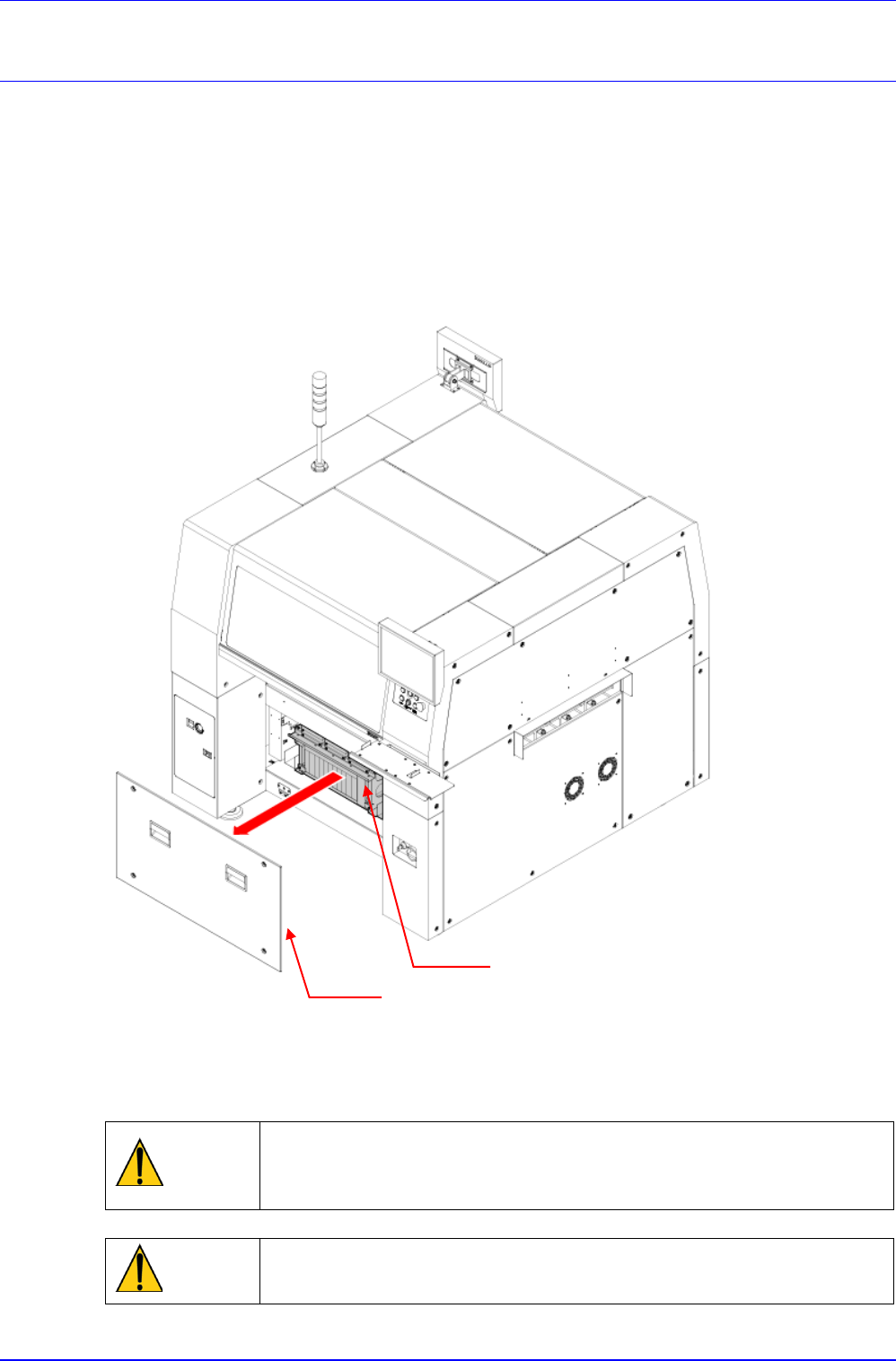

3. 打开设备正面盖(Cover)。
PC Rack
Cover
