Control unit F5 Page 7 / 11 19.11.2021
Control unit F5
Page 6 / 11 19.11.2021
Control unit F5
Page 7 / 11 19.11.2021
Control unit F5
Page 8 / 11 19.11.2021

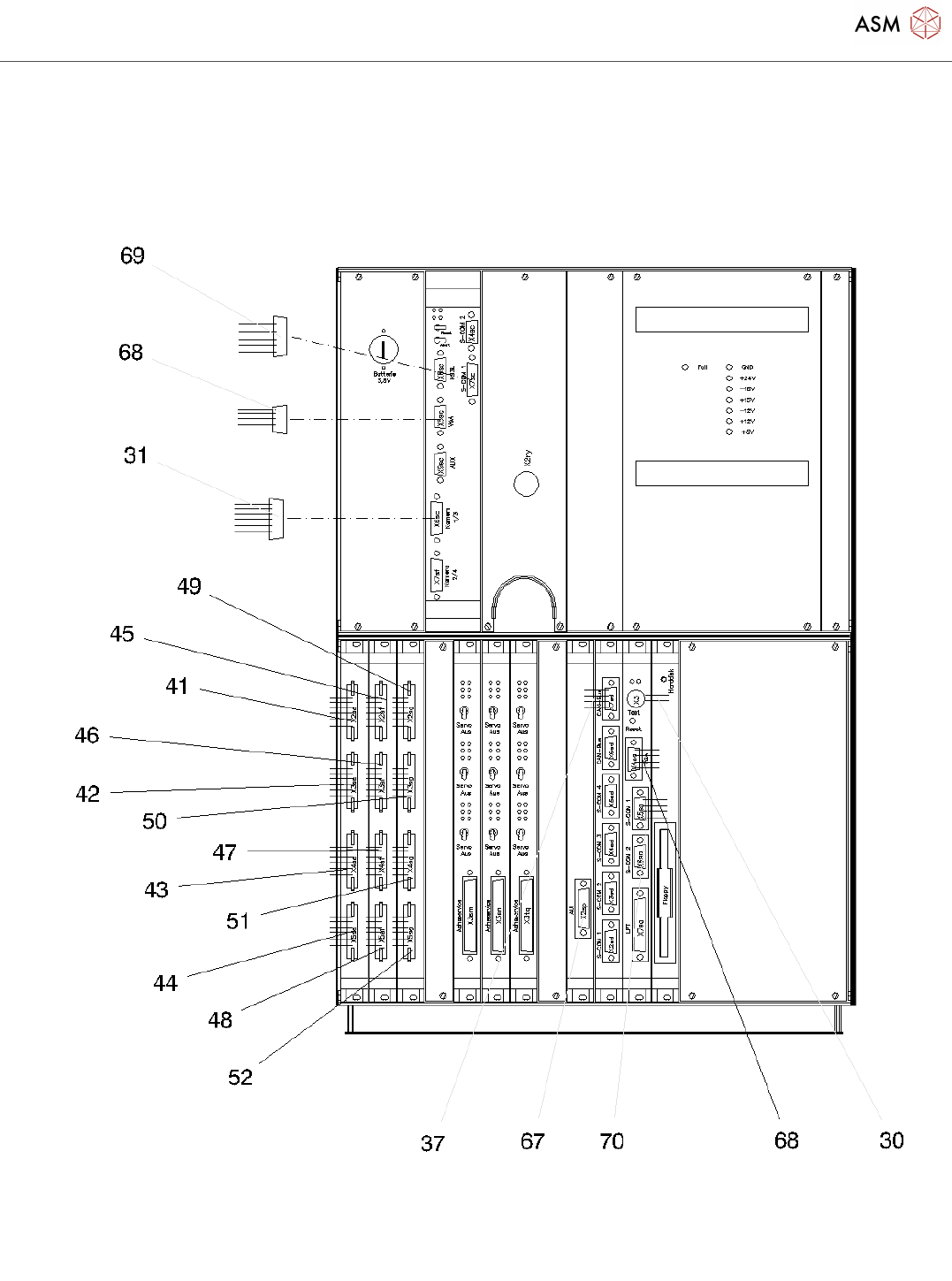

Pos. Item no. Description Part marking
1 00341851-04 CONTROL UNIT F5
2 00366803S03 MVS340-6 VME V2321M CALIBR. SPARE PART
3 00324341S07 CONTROL UNIT F4B Spare Part
00347286S01 CONTROL UNIT S20B/F4B BASIC SPARE
5 00352477-01 CONTROL UNIT S20B/F4B RACK
6 00342582-01 BACKPLANE POWER SUPPLY S23
7 00324117-01 BACKPLANE SMP16-SYS402 SPARE
8 00324118-01 REAR PANEL ASSEMBLY
SMP16-SYS40 2
9 00305443-01 REAR PANEL ASSEMBLY
10 00335540-01 MVS-BACKPLANE Spare Part
11 00329179-01 EMV-BACKPLANE AXIS
12 00335535-01 EMV-BACKPLANE COM
13 00345028-01 FAN UNIT S23
13-1 00310847-02 FAN 4414F / 24VDC / 240MA SPARE PART
14 00336392-01 BATTERY LITHIUM 3.6V MIGNON
15 00320927S10 MACHINE CONTROLLER SPARE PART
16 00320312-01 INPUT-OUTPUT-BOARD (MIXED) Spare Part
17 00321617S05 AXIS TURRET Spare
18 00314849S06 AXIS KSP-A361 V001.81 SPARE
19 00321036-01 AXIS REAR PANEL Spare Part
20 00321037-01 AXIS REAR PANEL SPARE PART
21 00321336-01 AXIS REAR PANEL Spare Part
22 00335526S06 MASS STORAGE KSP-M351 SPARE PART
23 00326142-07 COMMUNICATION UNIT KSP-
COM351
24 00320924-03 TCP/IP-SWITCHING KSP-COM223 Spare Part
25 00344771S04 POWER SUPPLY S23 SPARE PART
26 00322551-03 TRANSCEIVER 10 MBPS AUI TO BNC
00324196-02 TRANSCEIVER CABLE SPARE
00373666-01 NRS TP-TRANSCEIVER CONTROL
UNIT
Retrofit Kit
00325062-01 CABLE TREE CONTROL UNIT F4GEM
00300170-02 CABLE: TERMINAL BOARD -
CONTROL UNIT
29 00321426-02 CABLE: TERMINAL BOARD -
