9|备件和易损件 项号 名称 产品编号 A B 1 Chain with wire brackets and lugs, bulk stock, full charged, standard 156046 x 2 Chain with wire brackets and lugs, bulk stock, half charged, standard 174538 x 3 Chain with wire brackets and l…

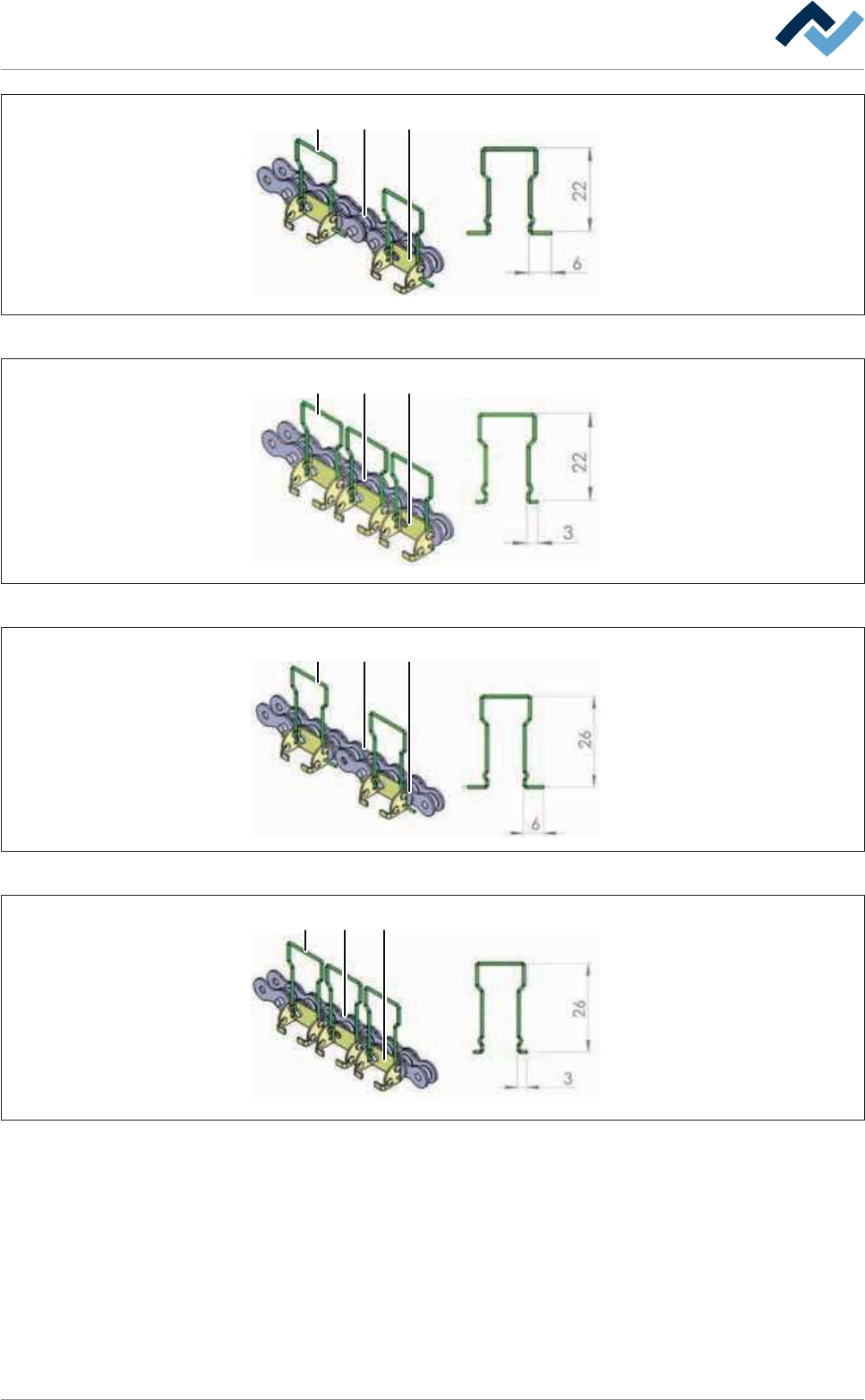

9|备件和易损件
6 2 10
图242:
链条，装备一半，标准
7 1 10
图243:
链条，完整装备，标准
8 3 10
图244:
链条，装备一半，在有 PARK 选装件的中央支撑上
9 4 1 0
图245:
链条，完整装备，在有 PARK 选装件的中央支撑上
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 488/600
9|备件和易损件
项号 名称 产品编号 A B
1 Chain with wire brackets and lugs, bulk stock, full
charged, standard
156046 x
2 Chain with wire brackets and lugs, bulk stock, half
charged, standard
174538 x
3 Chain with wire brackets and lugs, bulk stock, half
charged, center support with PARK option
233059 x
4 Chain with wire brackets and lugs, bulk stock, full
charged, center support with PARK option
233055 x
5 Chain joint，无图 139672 x
6 Wire bracket, single part, for half charged chain,
standard
208597 x
7 Wire bracket, single part, for full charged chain,
standard
102330 x
8 Wire bracket, single part, for half charged chain,
center support with PARK option
228251 x
9 Wire bracket, single part, for full charged chain,
center support with PARK option
230575 x
10 Lug, single part 148030 x
11 Deflection roller Ø 43 mm，无图 170470 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 489/600
9|备件和易损件
9.15.3 高度可调节的中央支撑装置（选装件）
3
7
1
1 6 65 5
2 2 224
图246:
EM9999-0008-99-00_a
项号 名称 产品编号 A B
1 Deflection roller Ø 21 mm 107607 x
2 Deflection roller with bearing 277977 x
3 Lubricant applicator vleece 108962 x
4 Spring 134005 x
5 Spur gear 17337 x
6 Positioning drive with external electronic module 292883 x
7 Spur gear 20490 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 490/600
