9|备件和易损件
项号 名称 产品编号 A B
1 Chain with wire brackets and lugs, bulk stock, full
charged, standard
156046 x
2 Chain with wire brackets and lugs, bulk stock, half
charged, standard
174538 x
3 Chain with wire brackets and lugs, bulk stock, half
charged, center support with PARK option
233059 x
4 Chain with wire brackets and lugs, bulk stock, full
charged, center support with PARK option
233055 x
5 Chain joint，无图 139672 x
6 Wire bracket, single part, for half charged chain,
standard
208597 x
7 Wire bracket, single part, for full charged chain,
standard
102330 x
8 Wire bracket, single part, for half charged chain,
center support with PARK option
228251 x
9 Wire bracket, single part, for full charged chain,
center support with PARK option
230575 x
10 Lug, single part 148030 x
11 Deflection roller Ø 43 mm，无图 170470 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 489/600
9|备件和易损件

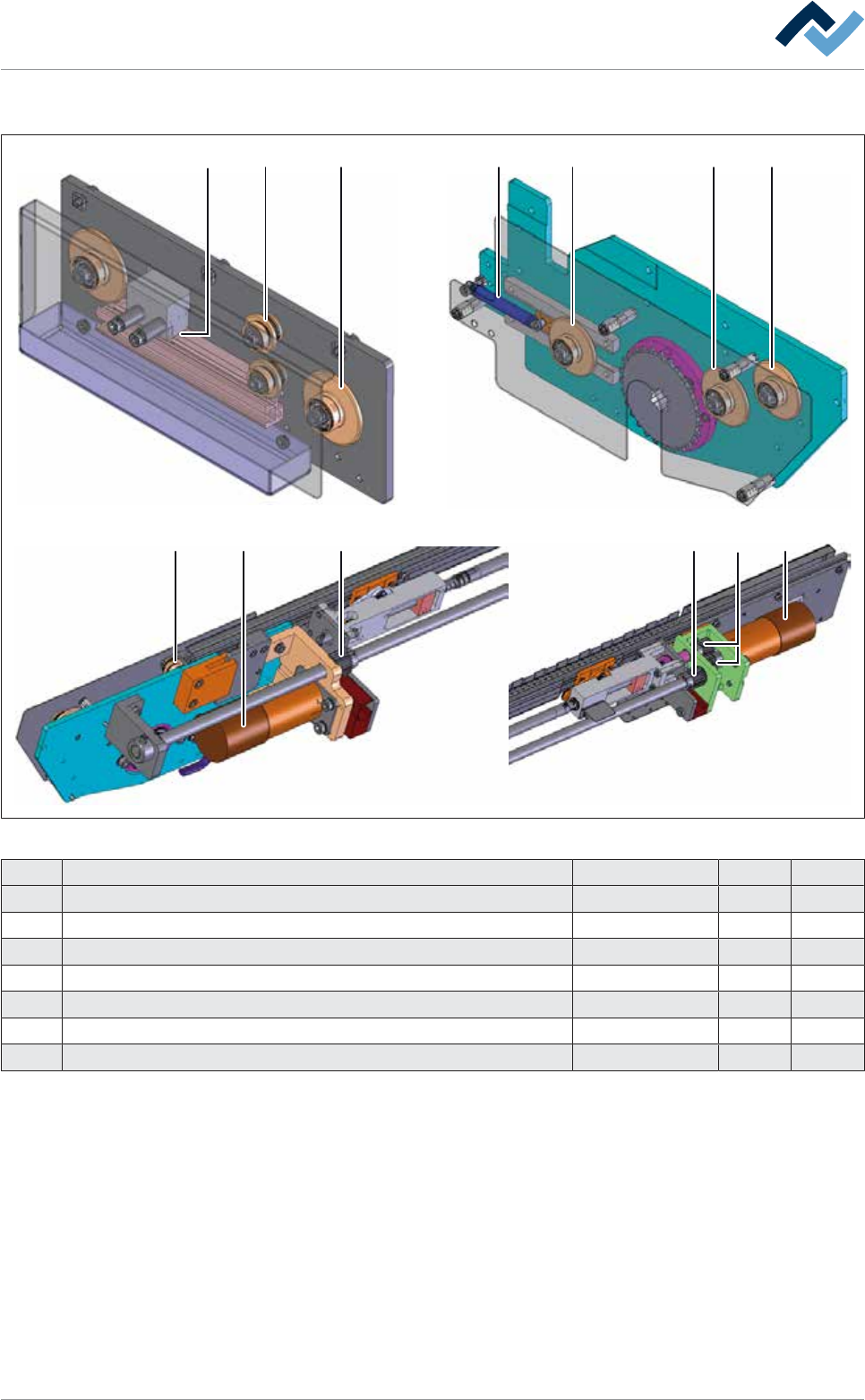

9.15.3 高度可调节的中央支撑装置（选装件）
3
7
1
1 6 65 5
2 2 224
图246:
EM9999-0008-99-00_a
项号 名称 产品编号 A B
1 Deflection roller Ø 21 mm 107607 x
2 Deflection roller with bearing 277977 x
3 Lubricant applicator vleece 108962 x
4 Spring 134005 x
5 Spur gear 17337 x
6 Positioning drive with external electronic module 292883 x
7 Spur gear 20490 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 490/600
9|备件和易损件

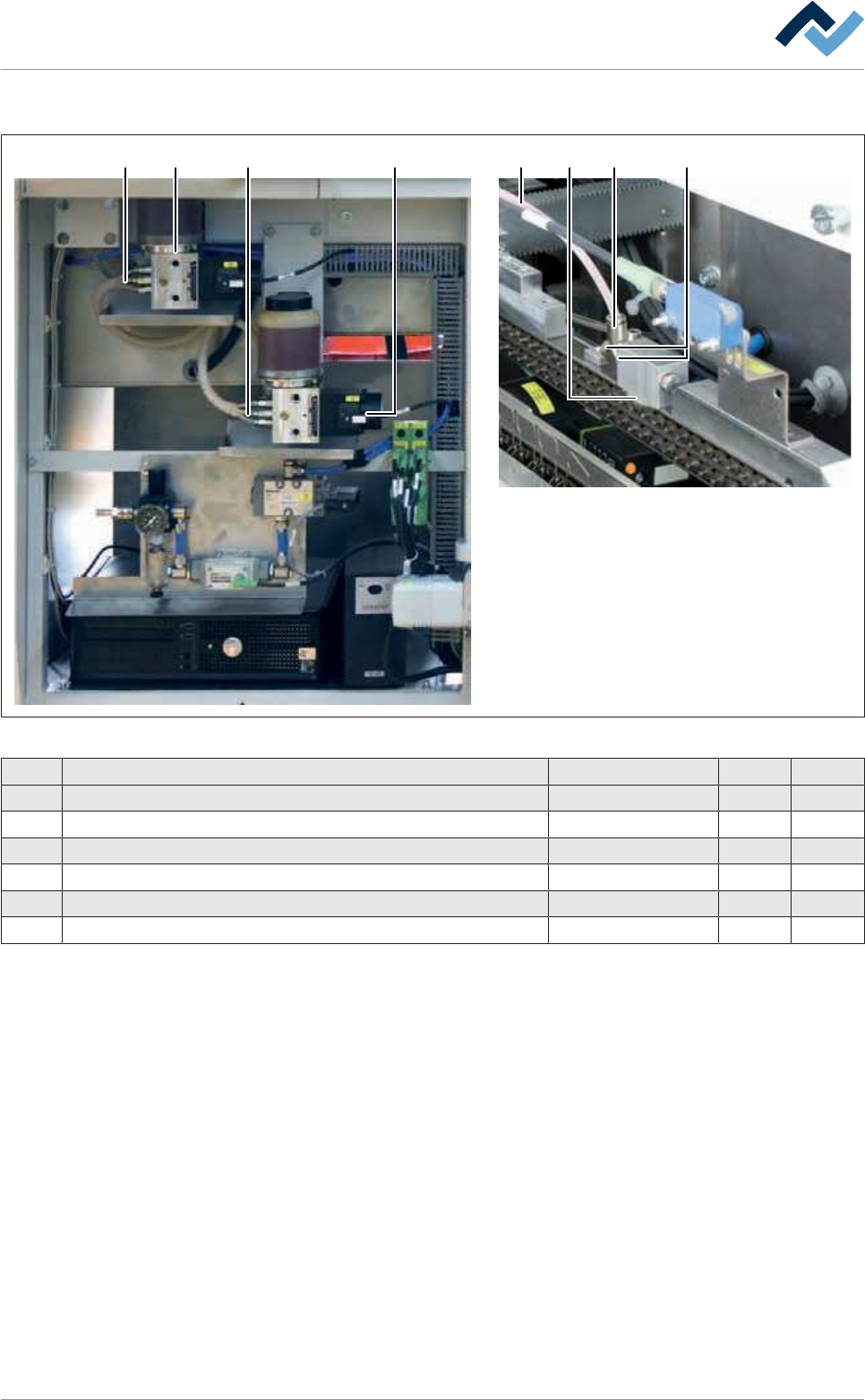

9.16 自动链条润滑器
1 13 3 3 46 5
图247:
自动链条润滑器
位置 描述 项目编号 A B
1 Oil pump, 6 outlets 74626 x
2 Oil pump, 3 outlets，（没有图示） 74625 x
3 Hose, PTFE, bulk stock 6SPTFE04.0X0.8 x
4 Angular swivel screw connection 6BO375 x
5 Sealing ring, copper 153612 x
6 Lubricant applicator vleece 108962
