9|备件和易损件 9.21 焊接区域的快速冷却 1 3 2 5 4 4 4 图254: 快速冷却 位置 描述 项目编号 A B 1 Thermocouple 6IN774_6 x 2 Hose D-152, bulk stock 121175 x 3 Drive 6KLS-MO-LF24-S x 4 Hose D-60, bulk stock 166556 x 5 Sealing, inside 181505 x Ersa Gmb…
9|备件和易损件
1 2 3 4 2 5
7 8 89 7
1 0
22 6
1 1

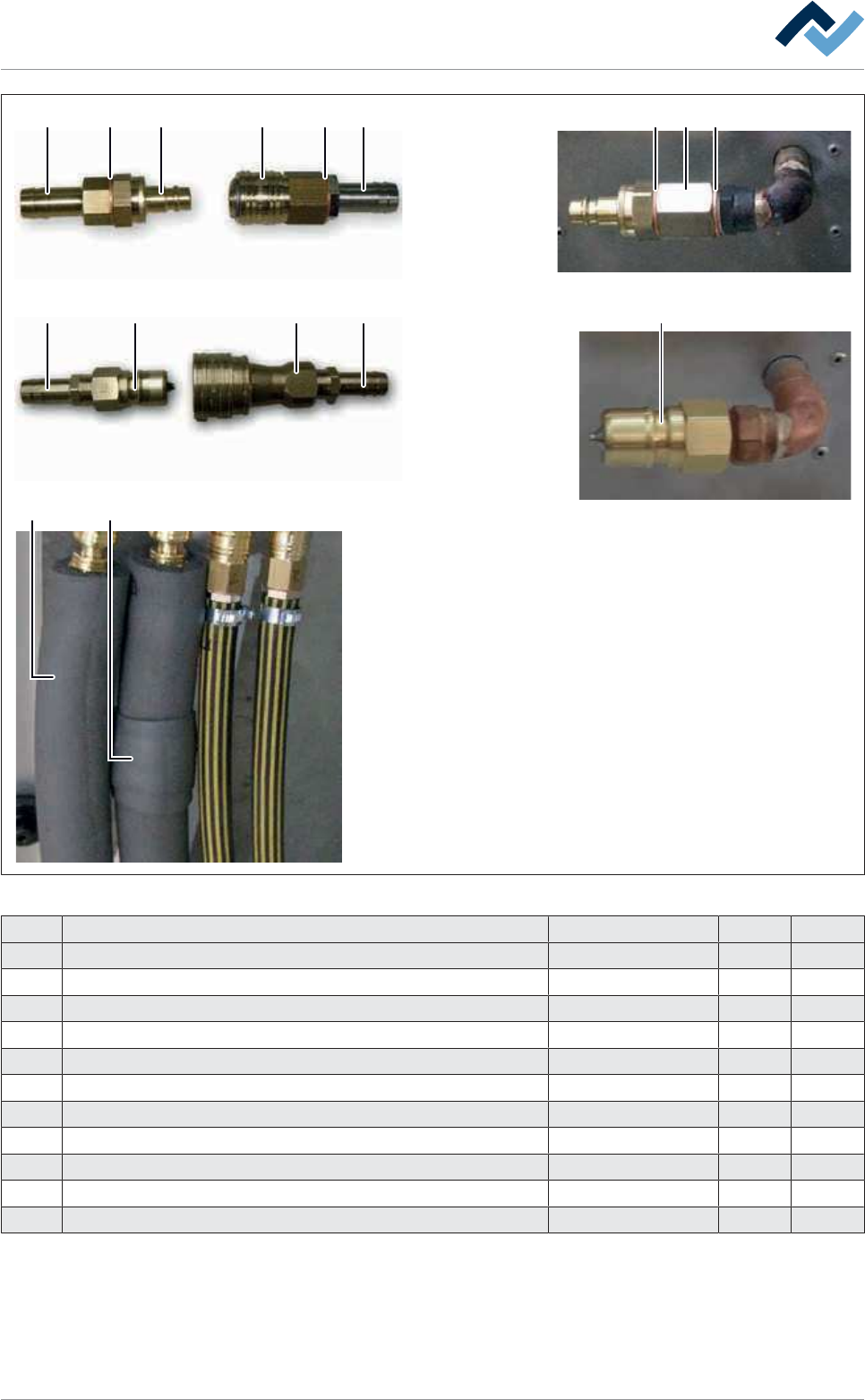

图253:
管道
位置 描述 项目编号 A B
1 Hose connector with internal screw thread 120558 x
2 Sealing ring, copper 153648 x
3 Coupling, male, cold water 6VSNIP-3/8 x
4 Coupling, female, cold water 6KPVS-3/8 x
5 Hose connector with external screw thread 6BO213 x
6 Long nut G3/8 120557 x
7 Hose connector with tapered external screw thread 161312 x
8 Coupling, male, hot water, less leaking 161363 x
9 Coupling, female, hot water, less leaking 161361 x
10 Tube , insulating foam, bulk stock 175128 x
11 Insulating tape, bulk stock 175129 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 497/600
9|备件和易损件
9.21 焊接区域的快速冷却
13 2 5 4 44
图254:
快速冷却
位置 描述 项目编号 A B
1 Thermocouple 6IN774_6 x
2 Hose D-152, bulk stock 121175 x
3 Drive 6KLS-MO-LF24-S x
4 Hose D-60, bulk stock 166556 x
5 Sealing, inside 181505 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 498/600
9|备件和易损件
9.22 用作干燥炉
9.22.1 输送链条
1 /2 3 4
位置 描述 项目编号 A B
1 Conveyor chain, 3 mm pins, bulk stock 192345 x
2 Chain joint 3 mm 192344 x
3 Deflection roller Ø 21 mm 195199 x
4 Lubricant applicator vleece 108962 x
Ersa GmbH
操作说明_HF3_20_zh|Rev. 7|2017/10/25 499/600
