Siplace productivity lift, version 02 Page 6 / 9 18.11.2021
Siplace productivity lift, version 02
Page 5 / 9 18.11.2021
Siplace productivity lift, version 02
Page 6 / 9 18.11.2021
Siplace productivity lift, version 02
Page 7 / 9 18.11.2021

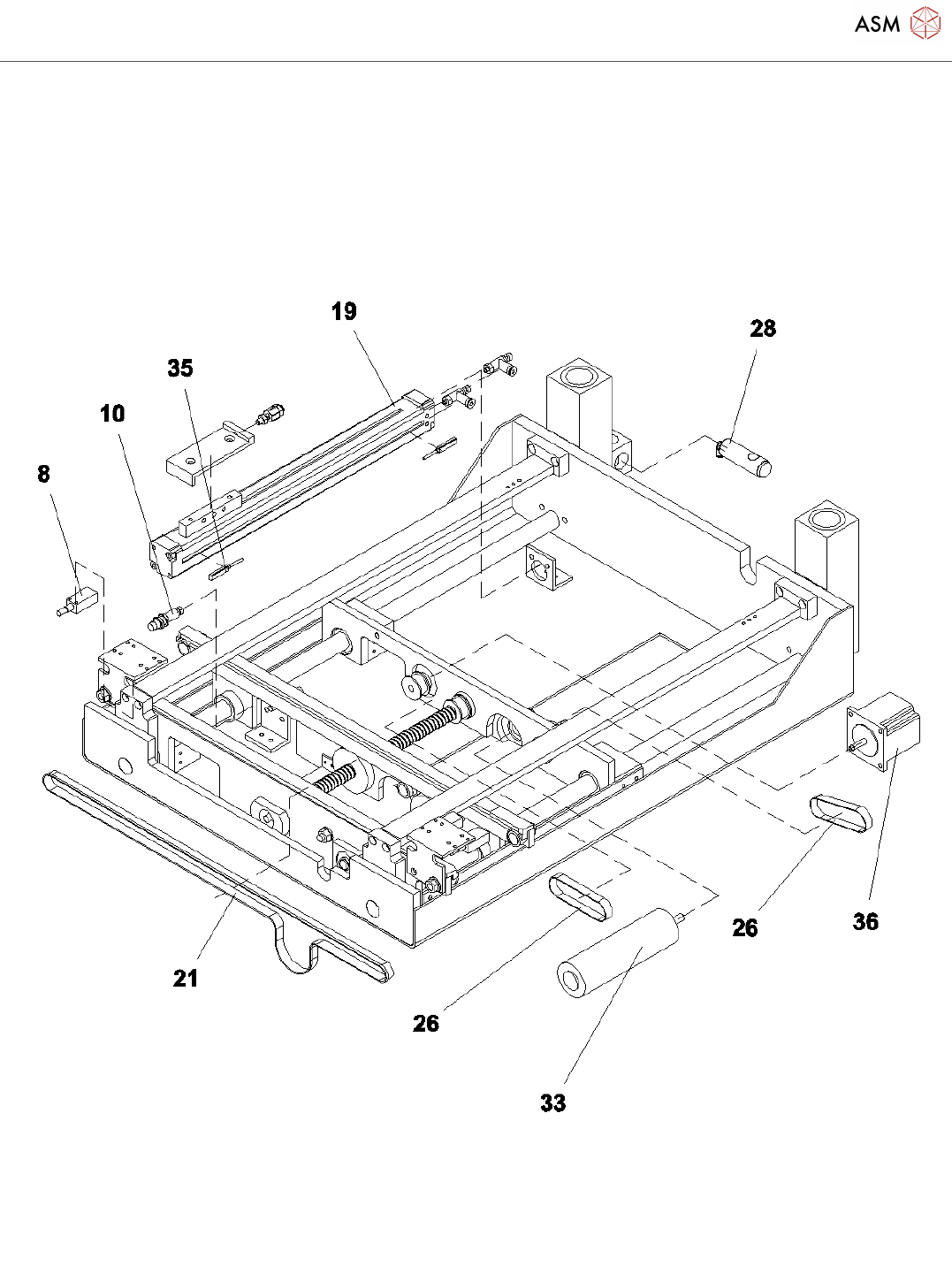

Pos. Item no. Description Part marking
00116310-03 SIPLACE PRODUCTIVITY LIFT,
VERSION 03
1 00347448-04 INTERFACE MODULE AMI 3.0 SPARE PART
2 00347449-01 RELAIS, PLUG-/PRINT- 5A SPARE
3 00347450-01 RELAIS, PLUG-/PRINT- 16A SPARE
4 00347461-01 POWER PACK 15A 24V DC, PSU
500L24
Spare Part
5 00347462-01 RELAIS, EMERGENCY STOP, PNOZ
X1 24V
Spare Part
6 00347475-02 OPTO-ELECTRONIC FOR STEP
MOTOR DKO, 24V
7 00347478-01 PROXIMITY SWITCH IQ10-03BPS-
KT1
Spare Part
8 00347478-01 PROXIMITY SWITCH IQ10-03BPS-
KT1
Spare Part
9 00347490-01 REFLECTION-LIGHT-SENSOR
WT4-2P330
Spare Part
10 00347493-01 SHOCK-ADSORBER SA10 SPARE PART
11 00348191-02 SPARE SWITCH CABINET DOOR SPL
12 00348192-02 SUPPLEMENT-CONTROL-MODUL,
CAN/MS1
Spare Part
13 00348193-02 CONTROL UNIT CAN/MM101 SPARE PART
14 00348194-02 MOTOR CONTROL BOARD SCA-
SS-70-10
Spare Part
15 00348195-02 CONTROL PANEL CAN/P50 SPARE
16 00348197-01 PNEUMATIC CYL. UNIT
DNC-40-125-PPV-A
17 00348198-01 SOLENOID VALVE UNIT MYH-5/3G-
M5-L-LED
18 00348199-01 SOLENOID VALVE UNIT MYH-5/3E-
M5-L-LED
19 00348200-01 TAPE CYLINDER UNIT
DPG-18-252-PPV-AB
20 00349121-02 MICRO STEP POWER OUTPUT
K480216A-24
SPARE PART
21 00349122-01 FLAT-TAPE 12/1143 TG20 WEAR PART
22 00349122-01 FLAT-TAPE 12/1143 TG20 WEAR PART
23 00349542-01 VALVE MYH-3-0,9 LED Spare Part
24 00350247-01 DC MOTOR GR63X55/ SG80 (24:1)
SCREENED
Spare Part
