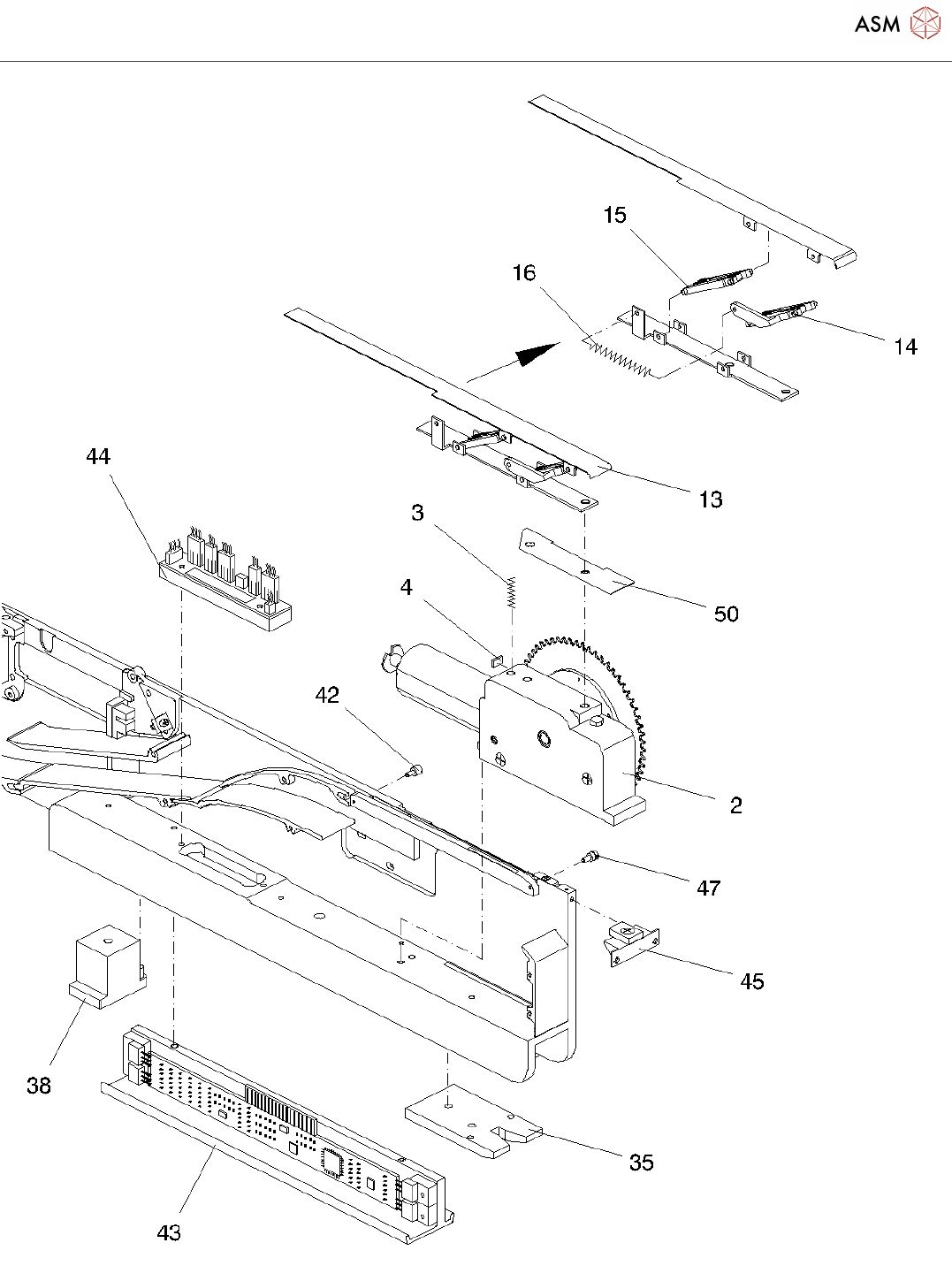

Pos. Item no. Description Part marking
1 00141092S05 TAPE FEEDER MODULE 12/16MM S
SIPLACE
Spare Part
2 00322513S03 DRIVE-UNIT SPARE PART
00324509-01 ADJUSTING WASHER
00322515-01 ADJUSTING SCREW
00325384-01 COMPRESSION SPRING 1.0*6.3*18
3 00325382S01 PRESSURE SPRING 0.5X3.5X20.7 SPARE PART
00322517-01 WORM WHEEL
4 00328214-02 RUBBER BUFFER WEAR PART
00322518-01 ADHESIVE TAPE, LARGE
00322519-01 TRANSPORT WHEEL
00322514-01 CASTING BASE UNIT, COMPLETE
00322526-01 PEDESTAL, COMPLETE
00322533-01 MOTOR UNIT
00322536-01 ADJUSTING SCREW
5 00324931S01 TRANSMITTER UNIT SPARE PART
00324932-01 TRANSMITTER BLOCK
00327134-01 STOP UNIT
00327135-01 GUIDE
00310857-01 STOP PIN
6 00308948S01 PRESSURE SPRING 0.16X1.36X6.7 SPARE PART
00309127-01 SLOT-TYPE LIGHT BARRIER
7 00322753S04 PICKUP WINDOW, 12/16 MM SPARE PART
8 00322745S01 FILLER BLOCK SPARE PART
9 00324482S01 REMOVAL EDGE SPARE PART
10 00323187S01 LIFTING MAGNET, CPL. SPARE PART
11 00323043S01 LIFTING MAGNET TYPE KGS WITH
AMP-CONNECT
12 00322748S01 DRIVER ASSY SPARE PART
13 00322180S04 SPRING BASE 12/16 MM FEEDER SPARE PART
00322121-02 SPRING PLATE BEARING PLATE
00331749-02 SUPPORT PART, COMPLETE
14 00322124S01 JOINT BEAM,FRONT SPARE PART
15 00322125S01 JOINT BEAM, REAR SPARE PART
16 03050937S01 EXT. SPRING 0,50X4,50X26,10-EN SPARE PART
