Page
+$1:+$
18
DECAN
S1
Feeder Base - Standard
5
6
4
9
15
11
1
14
16
10
2
7
12
17
17
13
8
13
12
3
Page
+$1:+$
19
DECAN
S1
Feeder Base - Standard
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-001200E BRACKET-TOP-PLATE-BACK-HOLE 1
2 FC09-000901E BRACKET-TOP_PLATE_S 1
3 FC15-003249A COVER-FB_COVER_FR 1
4 FC05-000122C BASE-FEEDER_BASE_BODY2 1
5 FC07-000033D BLOCK-VERTICAL LOCATOR 1
6 J70570262C CAP-TOP PLATE 5
7 AM03-004577B ASSY,FEEDER BASE-FEEDER_BASE_MODULE_S 1
8 PT03-900217A HANDLE_NUMBER_STICKER 1
9 HP06-900027 FITTING 6
10 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
11 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
12 FC15-003011A COVER-F-BASE_SIDE_CABLE 2
13 FC18-902851 SOCKET SET SCREW [M8*10 (SUS)] 14
14 FC14-002115 COUPLER-COUPLER_FEEDER BASE 60
15 AM03-000694B ASSY,BOARD-FBLN 1
16 AM03-000693B ASSY,BOARD-FBRN 1
17 FC15-001147B COVER-FB SIDE COVER;COVER 4
Page
+$1:+$
20
DECAN
S1

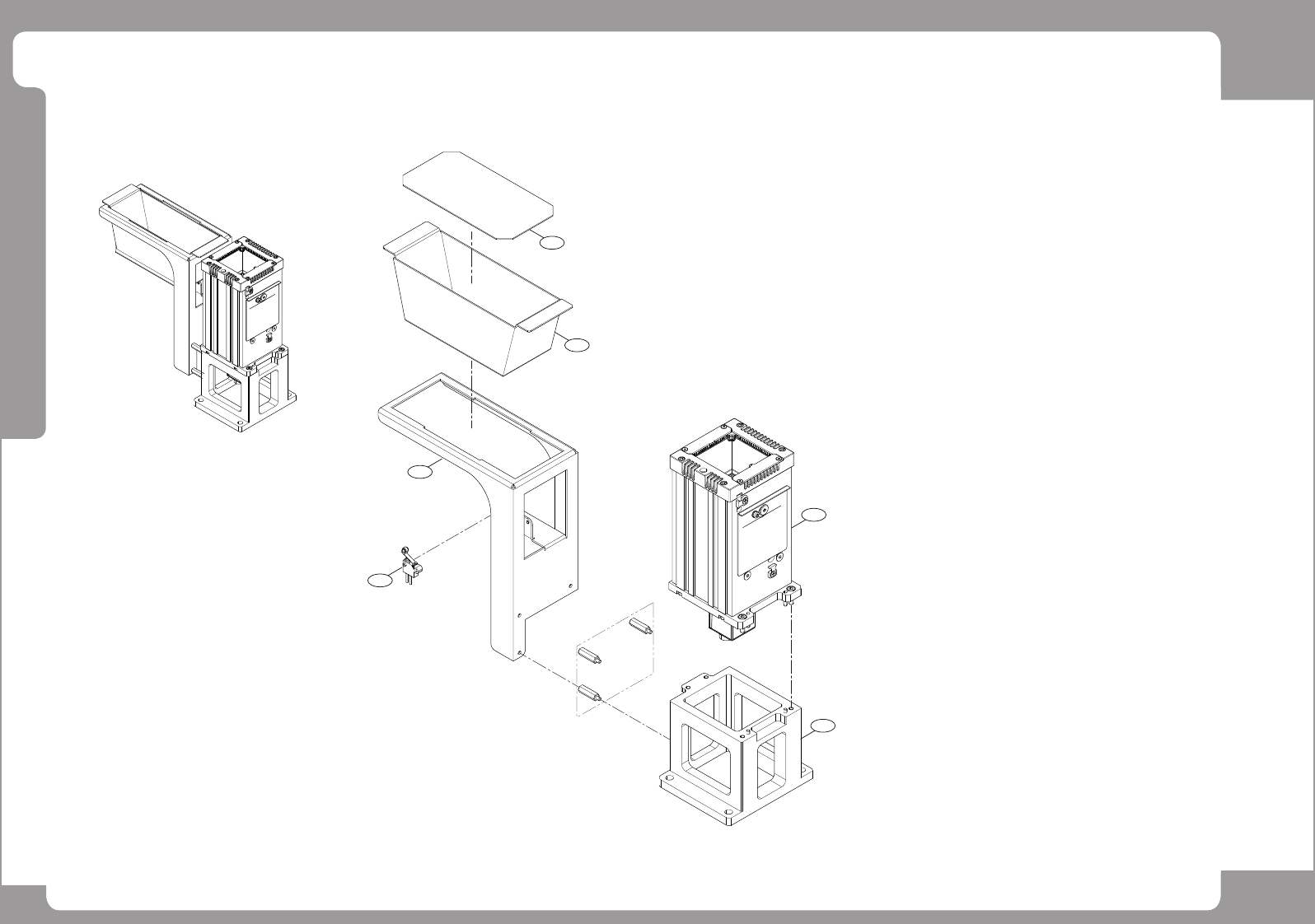

Stage CAM Ass’y
1
2
5
6
3
4
