Page +$1:+$ 23 DECAN S1 Docking Cart (1/6) - Option NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Refe rence A AM03-006344A ASSY ,FEEDER BASE-NEW_DOCKING_ CART 1 1 FC30-001080A PLA TE-T OP PLA TE B DCN 1 2…
Page
+$1:+$
22
DECAN
S1

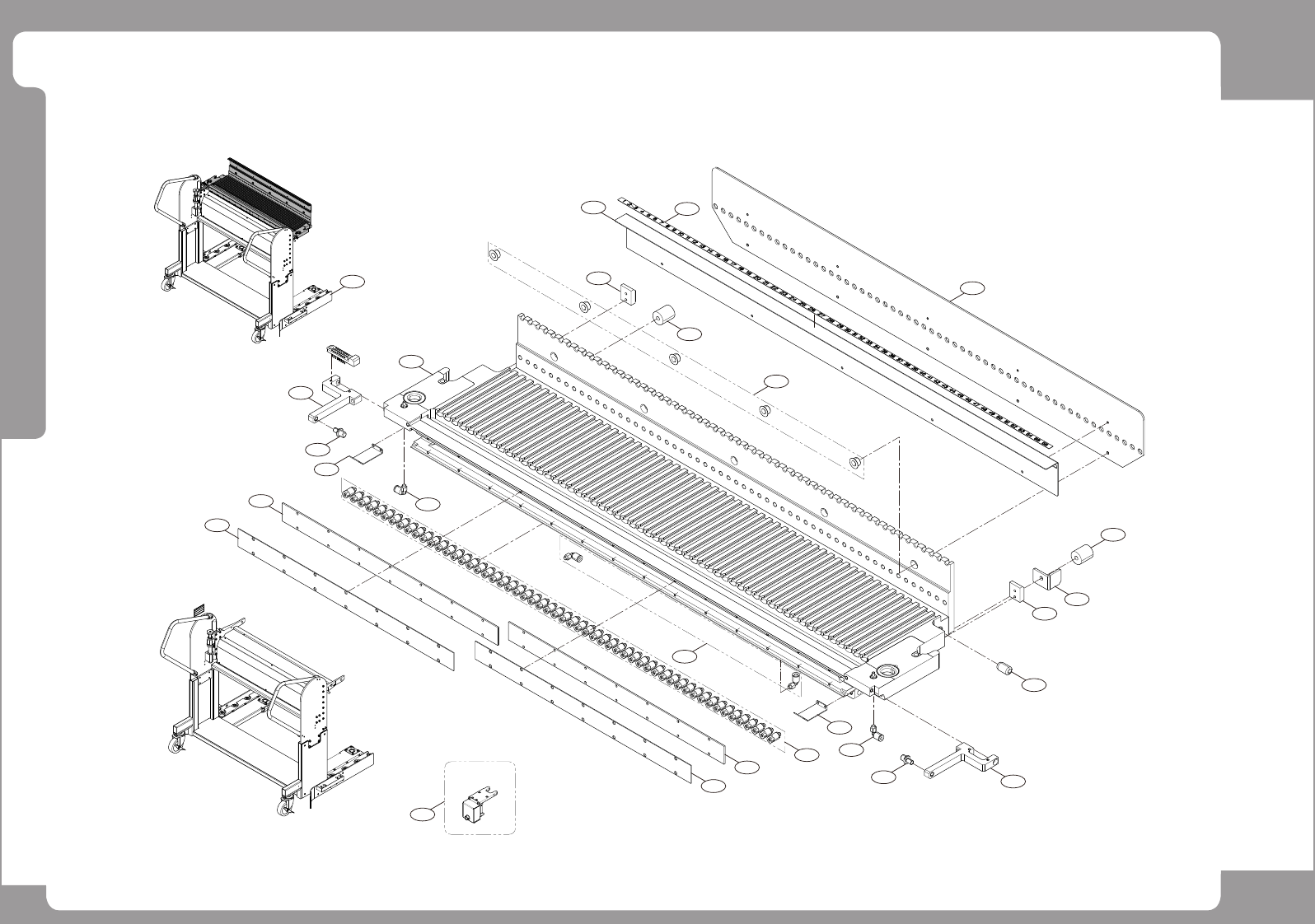

Docking Cart (1/6) - Option
3
4
6
5
1
2
7
4
8
12
15
16
17
9
5
11
10
11
13
18
9
14
A
11
10
12
19
Bowl Feeder Adaptor
Page
+$1:+$
23
DECAN
S1
Docking Cart (1/6) - Option
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-006344A ASSY,FEEDER BASE-NEW_DOCKING_CART 1
1 FC30-001080A PLATE-TOP PLATE B DCN 1
2 PT03-900217A HANDLE_NUMBER_STICKER 1
3 FC30-001081A PLATE-TOP PLATE S DCN 1
4 J7257009A CUSHION-Y 2
5 CM03-001014A POLYURETHANE-URETHAN 2
6 J70570262C CAP-TOP PLATE 5
7 FC09-002060A BRACKET-SME_DC_BKT 1
8 HP15-900008 BALL PLUNGERS 2
9 J7057237C ANTI-PITCH ARM 2
10 J7057238B ANTI-PITCH PIN 2
11 HP06-900027 FITTING 2
12 J7057239B CABLE HOLDER 2
13 J90600353B FEEDERBASE_LEFT_COVER_PCB 1
14 J90571009A FEEDER_BASE_MODULE 1
15 FC14-002115 COUPLER_FEEDER BASE 60
16 AM03-006346A ASSY,BOARD-FBRD 1
17 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1
18 AM03-006345A ASSY,BOARD-FBLD 1
Page
+$1:+$
24
DECAN
S1
Docking Cart (2/6) - Option
21
8
15
2
3
4
20
27
22
13
29
12
11
10
9
19
18
14
17
4
6
5
23
16
25
26
30
28
24
7
1
