DECAN_S1_TRM(Ver1.3_CS20.11) - 第30页

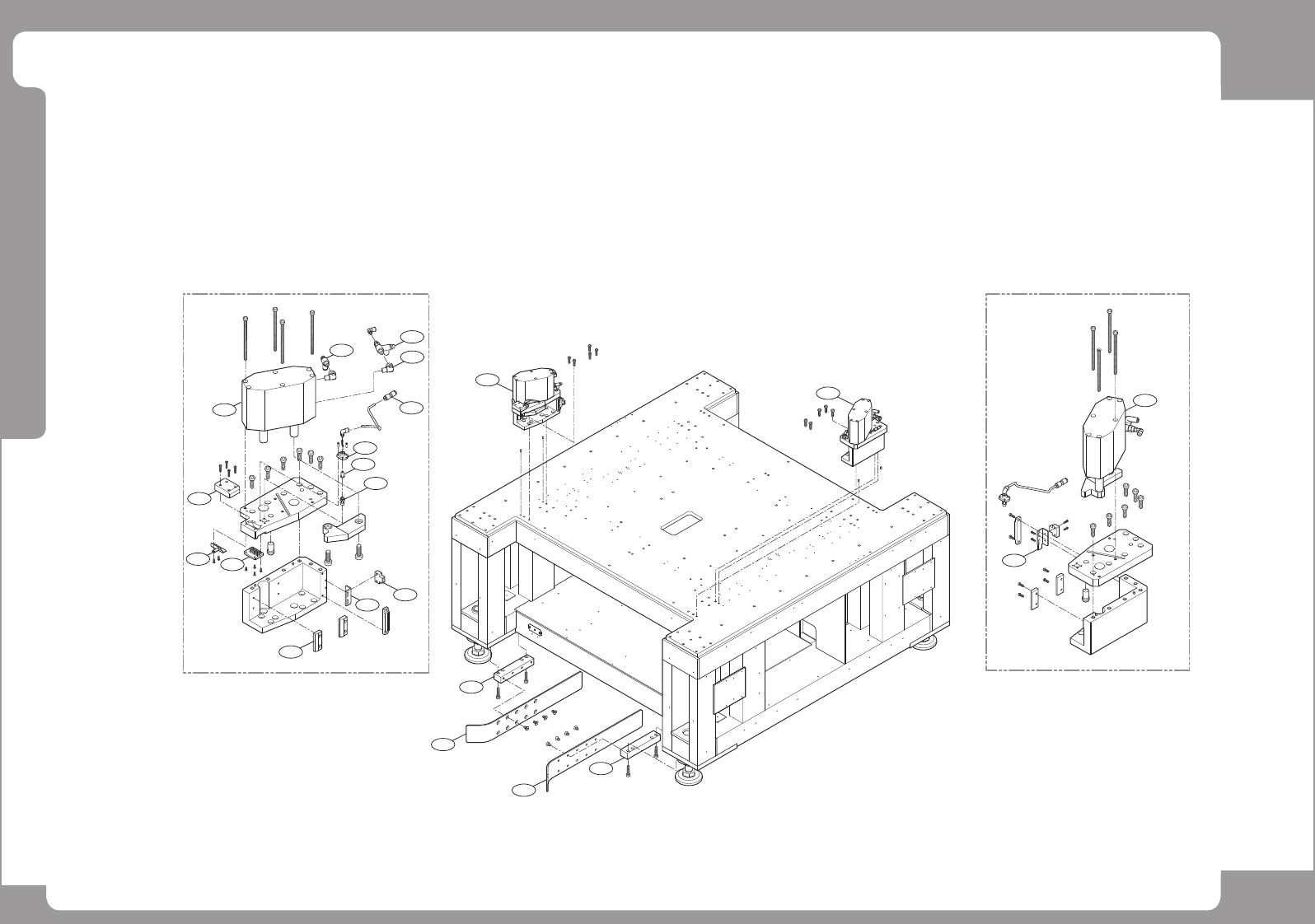

Page +$1:+$ 28 DECAN S1 Docking Cart (3/6) - Option 5 4 2 3 17 11 8 6 1 13 14 15 16 16 18 12 9 19 17 15 7 10
Page
+$1:+$
27
DECAN
S1
Page
+$1:+$
28
DECAN
S1
Docking Cart (3/6) - Option
5
4
2
3
17
11
8
6
1
13
14
15
16
16
18
12
9
19
17
15
7
10
Page
+$1:+$
29
DECAN
S1
Docking Cart (3/6) - Option
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
2 HP06-900049 STRAIGHT FITTING 1
3 HP06-900299 COUPLER 1
4 HP14-900089 SPEED CON 1
5 HP14-900090 SPEED CON 1
6 HP06-900293 ELBOW FITTING 2
7 EP19-900112 PHOTO SENSOR 1
8 J7066025A COUPLER BKT2[SM1-MF08-091] 1
9 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1
10 J7057244B SENSOR BRACKET 1
11 J7057246B COUPLER HOLDER MOUNT 1
12 J7057251A PIN CABLE RETAINER 1
13 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
14 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
15 J71570100C GUIDE BLOCK 2
16 J7057247A POSITIONNING GUIDE 2
17 HP03-900011 AIR CYLINDER 1
18 J7257010B CUSHION-X 2
19 J7257011A PIN CABLE CAP 1
