DECAN_S1_TRM(Ver1.3_CS20.11) - 第32页
Page +$1:+$ 30 DECAN S1 Docking Cart (4/6) - Option 3 6 5 10 8 6 3 7 9 4 4 7 CAN CONVEYO R BOARD 2 1 Front Front Rear Rear
Page
+$1:+$
29

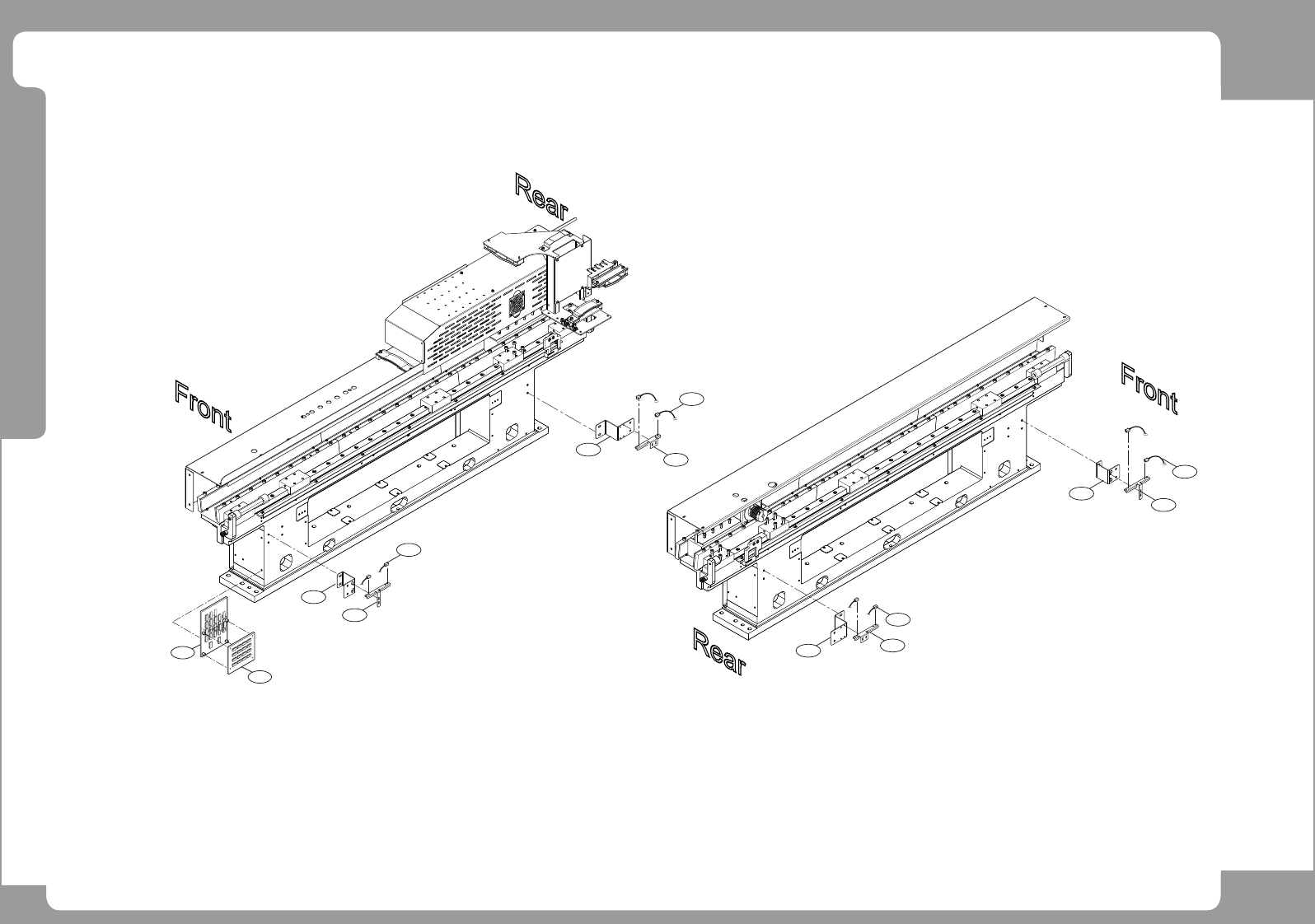

DECAN
S1
Docking Cart (3/6) - Option
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
2 HP06-900049 STRAIGHT FITTING 1
3 HP06-900299 COUPLER 1
4 HP14-900089 SPEED CON 1
5 HP14-900090 SPEED CON 1
6 HP06-900293 ELBOW FITTING 2
7 EP19-900112 PHOTO SENSOR 1
8 J7066025A COUPLER BKT2[SM1-MF08-091] 1
9 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1
10 J7057244B SENSOR BRACKET 1
11 J7057246B COUPLER HOLDER MOUNT 1
12 J7057251A PIN CABLE RETAINER 1
13 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
14 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
15 J71570100C GUIDE BLOCK 2
16 J7057247A POSITIONNING GUIDE 2
17 HP03-900011 AIR CYLINDER 1
18 J7257010B CUSHION-X 2
19 J7257011A PIN CABLE CAP 1
Page
+$1:+$
30
DECAN
S1
Docking Cart (4/6) - Option
3
6
5
10
8
6
3
7
9
4
4
7
CAN CONVEYO
R BOARD
2
1
Front
Front
Rear
Rear
Page
+$1:+$
31
DECAN
S1
Docking Cart (4/6) - Option
NO. PART NO. PART NAME Q'TY Old No. Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1
2 AM03-015857F ASSY,BOARD-FEEDER IO VER 2.0 1
3 AM03-027217A CABLE ASSY-FRONT FEEDER UNLOCK 1
4 FC09-009675A BRACKET-FDL_R_COVER INNER BKT 1
5 FC09-009665A BRACKET-REAR_R_SNS_BKT 1
6 AM03-027219A CABLE ASSY-REAR FEEDER UNLOCK 1
7 FC09-009674A BRACKET-FDL_F_COVER INNER BKT 1
8 FC09-009663A BRACKET-FRONT_R_SNS_BKT 1
9 FC09-009664A BRACKET-FRONT_L_SNS_BKT 1
10 FC09-009666A BRACKET-REAR_L_SNS_BKT 1
