Page +$1:+$ 46 DECAN S1 Base Frame (Front) 25 39 55 23 22 21 18 15 16 13 70 53 10 29 24 1 26 38 21 61 62 19 42 47 48 49 44 45 43 46 50 51 52 27 41 17 14 5 5 6 7 A A V accum Generator 69 3 2 40 8 4 63 74 31 33 35 64 36 30…
Page
+$1:+$
45
DECAN
S1
Backup Table
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-002622A BACK_UP_PLATE 1
2 J70531052C LOWER_PLATE 1
3 FC30-002622A PLATE-BACK_UP 1
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 SHOULDER SCREW 2
7 FC38-900013 SPRING 1
8 FC29-900536 URETHAN CUSHION 1
9 HP06-900056 ELBOW FITTING 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN 4
12 J7053793A LOWER LINK PIN 2
13 J7053796A LOWER LINK SHAFT 1
14 J90531008A LINK_END_ASSY 8
15 MC03-900022 BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER 3
20 FC14-900506 CYLINDER JOINT 1
21 HP03-900013 CYLINDER 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER 1
J9053333A BACKUPPIN
26 J7053802A UP SENSOR BRACKET 1
27 J70621009A BUT_HOLD_PLATE2 4
28 FC29-004259B DOG-BUT_SENSOR 1
29 J70531080A PLATE_EXTENSION 2
Page
+$1:+$
46
DECAN
S1

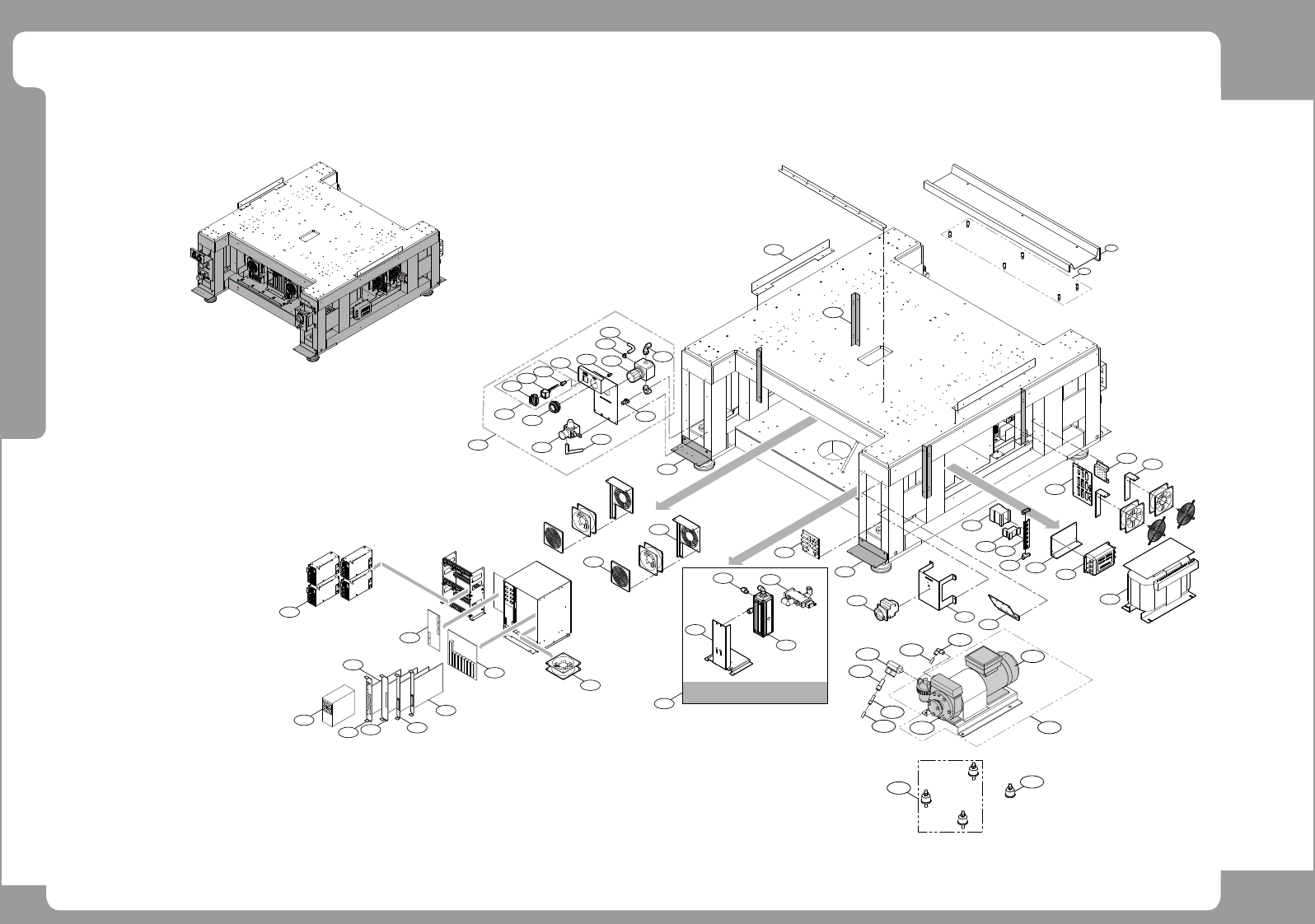

Base Frame (Front)
25
39
55
23
22
21
18
15
16
13
70
53
10
29
24
1
26
38
21
61
62
19
42
47
48
49
44
45
43
46
50
51
52
27
41
17
14
5
5
6
7
A
A
Vaccum Generator
69
3
2
40
8
4
63
74
31
33
35
64
36
30
34
32
37
72
71
73
Page
+$1:+$
47
DECAN
S1
Base Frame (Front)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 CD03-000060 HARD DRIVE 1
2 EP06-000384 SUPPLY,POWER 1
3 CD05-000059 MOTHERBOARD 1
4 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C
5 EP06-000338 PROCESSOR BOARD 2
6 EP10-001105A BOARD,ETC-BACK PLANE 1
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359C ASSY,PCB_VISION_IF BD 1
10 FC09-003434A INLET FAN BKT 2
A AM03-011162A ASSY,AIR-FRONT AIR PANEL 1
13 HP06-900043 JOINT 1
14 HP06-900026 ELBOW FITTING 2
15 HP06-900191 ELBOW_MIN I_FITTING 1
16 HP09-900108 REGULATOR 1
17 HP06-900195 UNION_Y_FITTING 1
18 FC09-003398A FRONT AIR PANEL 1
19 HP09-900123 REGULATOR 1
20 TE07-900096 GAUGE 1
A AM03-008872A ASSY,AIR-DIGITALGAUGE 1
21 HP06-000278 FITTING 1
22 HP09-000150 DIGITAL GAUGE 1
23 FC09-000043 BRACKET 1
24 FC09-001657D BRACKET-BKT VAC_GEN 1 FC09-001657B/ FC09-001657C
25 HP06-900204 FITTING 1
26 AM03-005245A ASSY,AIR-VACUUM ASSY 1
27 HP11-000058 VACUUM GENERATOR 1
29 HP14-000978 SOL-VALVE 1 HP14-900045
30 FC28-001349 PAD-RUBBER 3
31 FC28-001350 PAD-RUBBER 1
32 HP11-001019 VACUUM PUMP 1
33 HP06-900104 NIPPLE-STRAIGHT 1
