Page +$1:+$ 83 DECAN S1 Cover (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-01 1036A ASSY ,COVER- LOWER FL 1 1 FC29-900217 SLIDE _LA TCH 3 2 FC15-002083A DOOR FRONT 1 3 FC15-002082A …
Page
+$1:+$
82
DECAN
S1

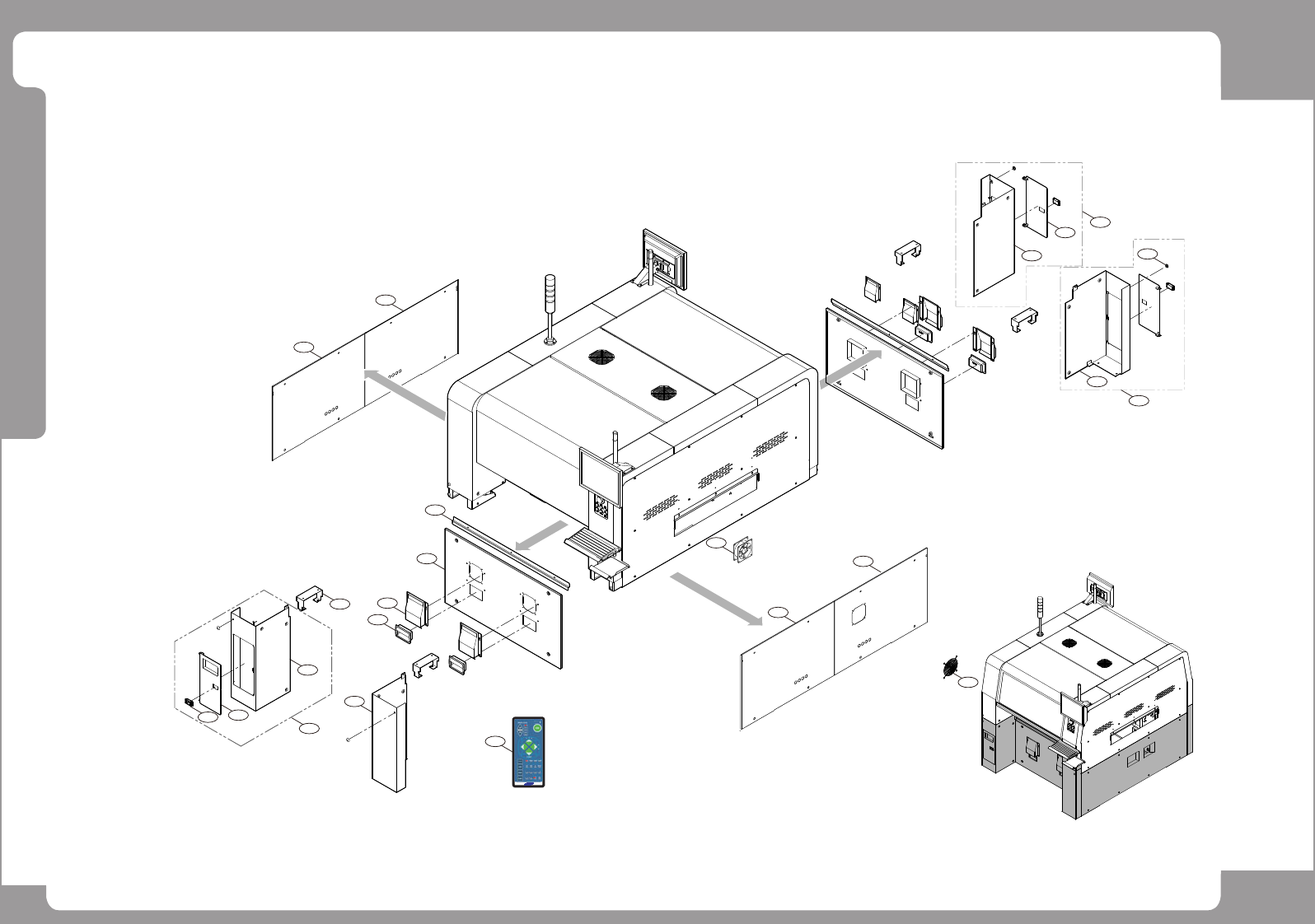

Cover (1/2)
15
4
16
6
7
8
9
21
10
17
18
19
14
20
13
B
C
12
2
1
3
A
5
SM321
1
2
3
1234
9101112
5678
Page
+$1:+$
83
DECAN
S1
Cover (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011036A ASSY,COVER-LOWER FL 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-006424A COVER-LOWER_FR 1
5 FC15-001147A FB SIDE COVER 4
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-004384B COVER-SIDE LOWER L S 1
11 FC15-002061A SIDE LOWER R 1
B AM03-018772A ASSY,COVER-LOWER RR 1
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
C AM03-018773A ASSY,COVER-LOWER RL 1
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP 4
16 AM03-022731A ASSY,CONTROLLER-TEACHING BOX ASSY 2
17 FC15-004434B COVER-SIDE LOWER L2 S;STANDARD 1
18 FC15-004383B COVER-SIDE LOWER R S;STANDARD 1
19 FC15-004435B COVER-SIDE LOWER R2 S;STANDARD 1
20 FC28-001115 FINGER,GUARD 1
21 J90833316A FAN_CABLE_ASSY SM-FAN00 1
Page
+$1:+$
84
DECAN
S1

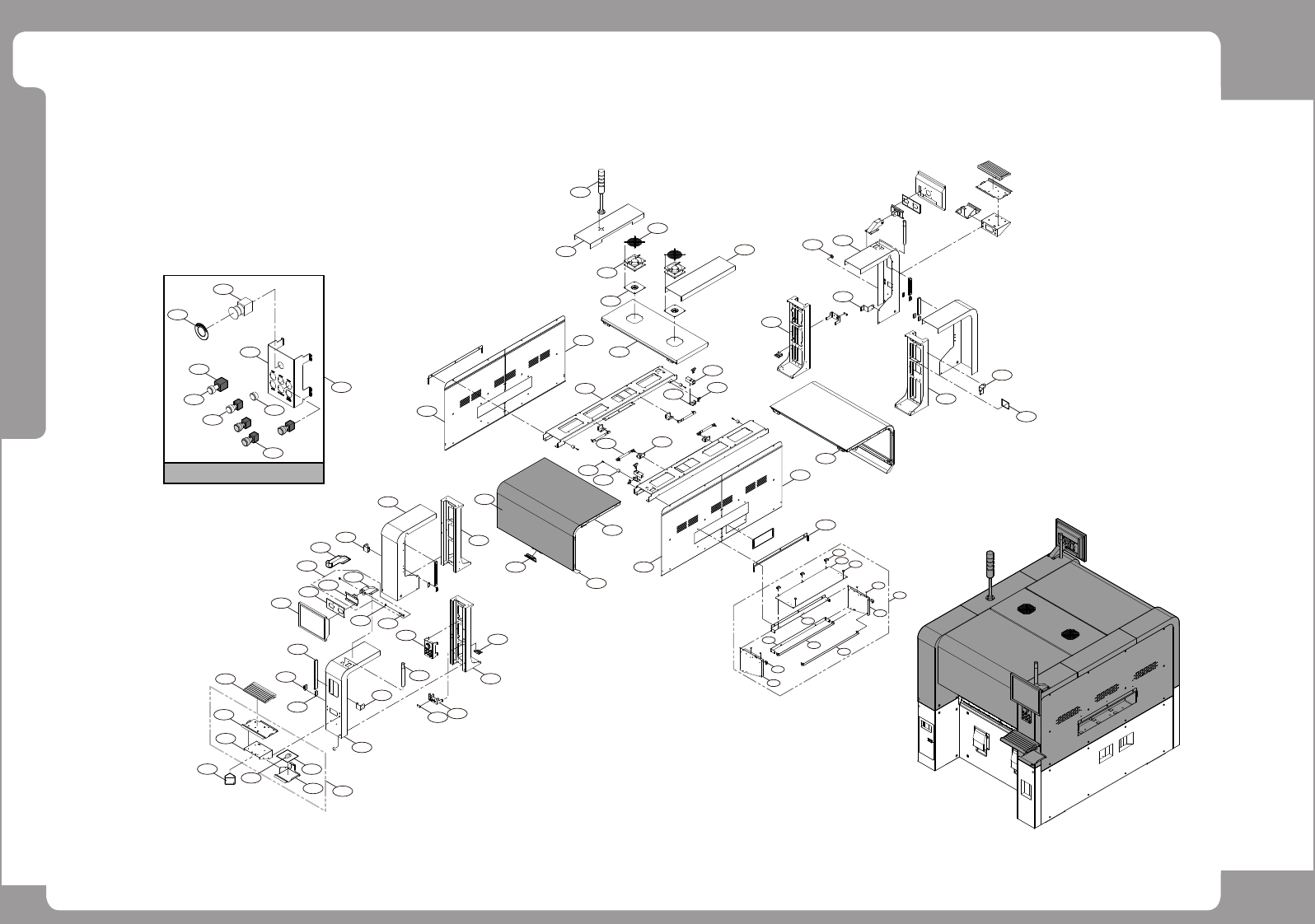

Cover (2/2)
51
77
52
33
38
48
50
35
10
22
23
60
21
28
56
8
9
15
14
13
12
63
20
4
64
B
3
2
47
52
75
76
32
44
34
40
39
19
45
46
42
43
41
36
58
59
54
53
37
26
25
31
7
17
27
24
29
30
55
16
49
6
18
20
5
11
1
61
A
OP PANEL
62
72
73
71
32
74
70
69
65
68
66
67
71
10
