4 - 2 4 . X スライド( D E S X ) 4 . X s l i d e ( D E S X ) 1 . 1 . ノズル一覧( D B P N ) 4 . X s l i d e ( D E S X ) 4 . X スライド( D E S X ) XP-141E P ARTS LIST x 9 A A L O C T I T E 2 6 2 L O C T I T E 2 6 2 T h r e e B o n d 1 3…
4 - 1

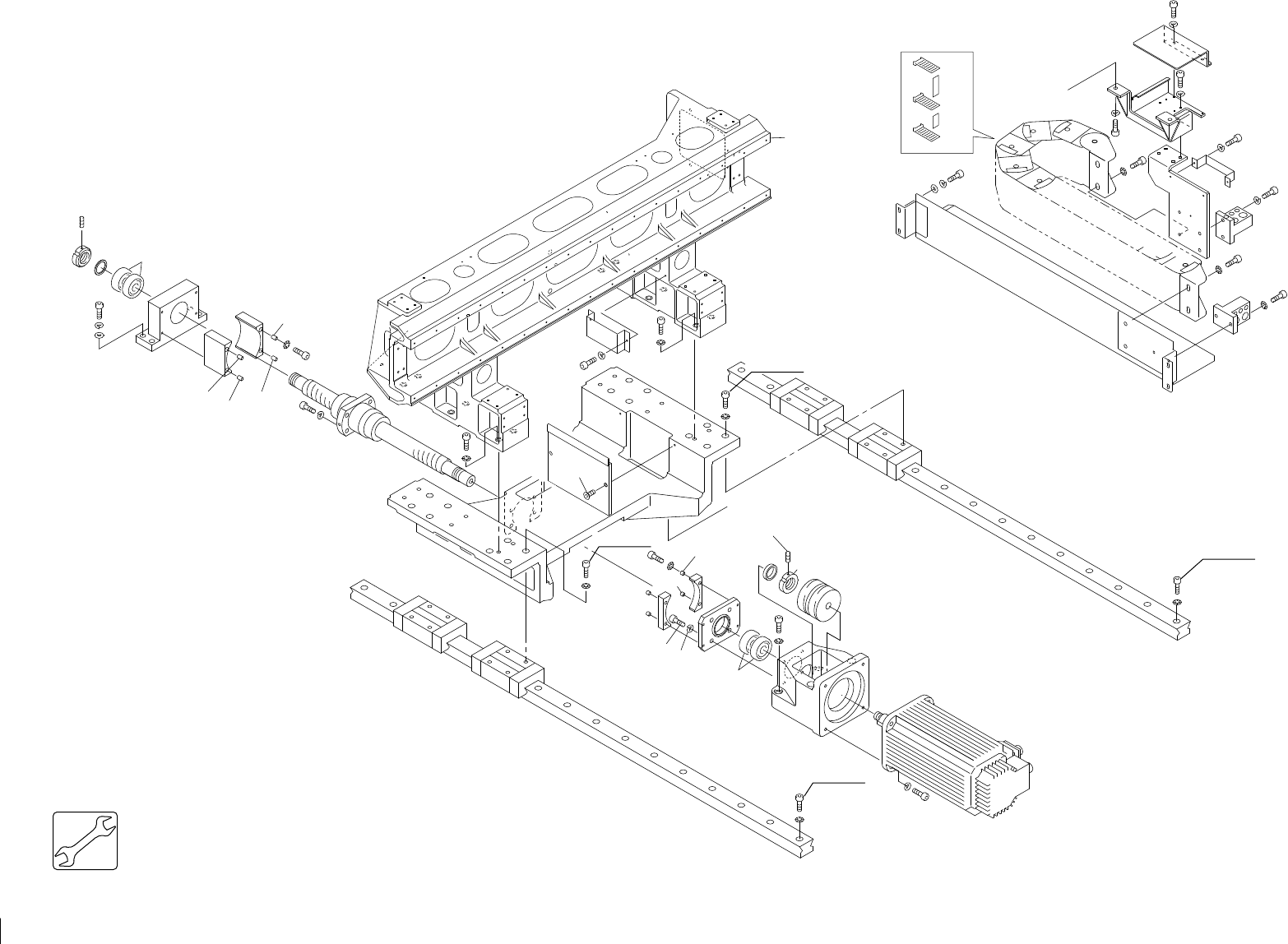

4.X スライド(DESX)
4.X slide(DESX)
1.1.ノズル一覧(DBPN)
4.X slide(DESX)
4.X スライド(DESX)
XP-141E PARTS LIST
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
ﾀﾃx173.205
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x9
15
15
15
13
45
39
55
23
34
25
49
55
39
22
44
30
40
31
33
41
21
34
45
35
45
33
59
45
33
45
35
45
41
34
28
43
42
62
56
48
41
35
14
15
15
15
34
41
43
28
46
57
48
40
30
45
54
61
60
28
32
32
45
A
A
19
20
24
6
7
8
17
11
14
15
10
13
15
18
17
4
9
5
5
4
3
1
2
50
52
51
53
50
55
39
63
4 - 2
4.X スライド(DESX)
4.X slide(DESX)
1.1.ノズル一覧(DBPN)
4.X slide(DESX)
4.X スライド(DESX)
XP-141E PARTS LIST
x9
A
A
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N･m
3.9N･m
33.0N･m
33.0N･m
33.0N･m
33.0N･m
4.X スライド(DESX)
4.X slide(DESX)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 DESX1113 1 SLIDE ｽﾗｲﾄﾞ AL
2 DESX1123 1 SLIDE, X-AXIS ｽﾗｲﾄﾞ X軸 AL
3 DESX1010 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
4 H4218C 2 BEARING ﾍﾞｱﾘﾝｸﾞ 7005CDBC7P5 FE
5 DESX1020 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
6 SAM6670 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGMSH-50A2A21 OT
7 DESX1220 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ SFC-060SA-T003 OT
8 DESX1032 1 HOUSING ﾊｳｼﾞﾝｸﾞ FE
9 DESX1041 1 BKT BKT FE
10 DESX1060 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
11 DESX1070 1 COLLAR ｶﾗｰ FE
13 DESX1260 2 STOPPER ｽﾄｯﾊﾟ PL
14 DESX1090 2 STOPPER ｽﾄｯﾊﾟ PL
15 DESX1100 8 COLLAR ｶﾗｰ FE
17 N1026A 2
NUT, LOCK
ﾅｯﾄ ﾛｯｸ ZM025 FE
18 DESX1200 1 COLLAR ｶﾗｰ FE
19 DESX1231 1 DUCT, WIRING ﾀﾞｸﾄ 配線 FE
20 DESX1250 1 BKT, DUCT BKT ﾀﾞｸﾄ FE
21 DESX1170 1 BKT BKT FE
22 DESX1130 1 BKT, WIPING BKT 配線 FE
23 DESX1210 1 BKT, WIPING BKT 配線 FE
24 DESX1180 1 BKT, WIPING BKT 配線 FE
25 DESX1140 1 BKT, TERMINAL BKT ﾀｰﾐﾅﾙ AL
28 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
30 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X10L FE
31 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X15L FE
32 H5338T
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X12L FE
33 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X20L FE
34 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X25L FE
35 H5343A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X30L FE
39 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
40 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
41 W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
42 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
43 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿 M-5-L FE
44 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H FE
45 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿 M-8-H FE
46 W1015A
WASHER, CONICAL
ﾜｯｼｬ 皿 M-10-H FE
48 N4045A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M6X5L FE
XP-141E PARTS LIST
4 - 3
4.X スライド(DESX)
4.X slide(DESX)
