Glue unit G2 Page 14 / 19 18.11.2021
Glue unit G2
Page 13 / 19 18.11.2021

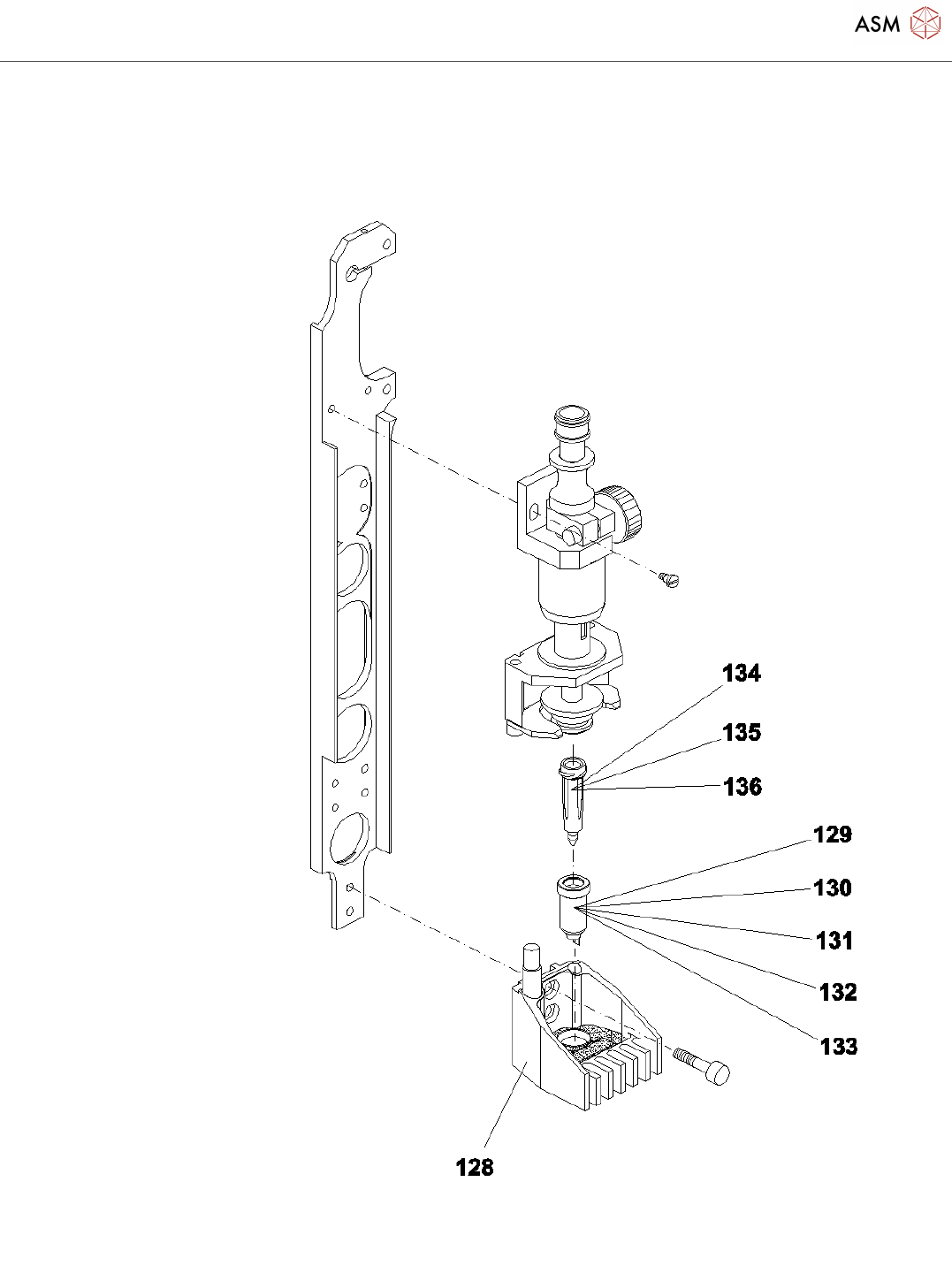

Glue unit G2
Page 14 / 19 18.11.2021

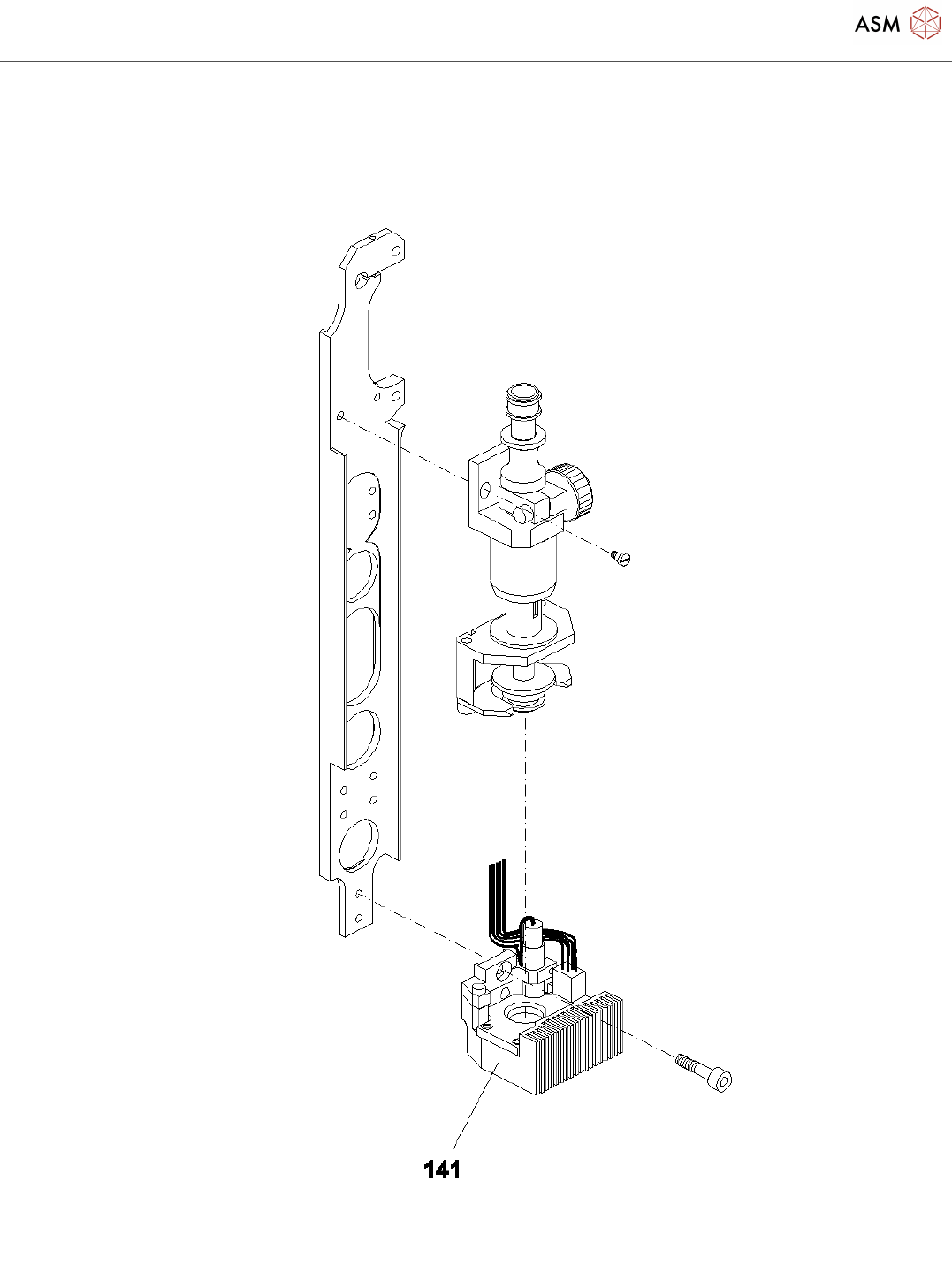

Glue unit G2
Page 15 / 19 18.11.2021
Pos. Item no. Description Part marking
1 00328716S01 GLUE HEAD Y-AXIS
2 00301954-02 HOLDER
3 00305903-01 PNEUMATIC CONTROLLER UNIT
SIPLACE 80K
4 00305310-07 PNEUMATIC SYSTEM
5 00306745-02 EVACUATION OF AIR VALVE
6 00306744-02 SOLENOID VALVE: DOSAGE
00319041-01 DUMMY PLUG
8 00305574-06 VALVE FIXING
9 00305456-01 SEALING RING PVC HARD
10 00305562-06 BANJO BOLT
00306398-01 SEALING SPECIAL ORDER
12 00306400-01 COVER
00306401-01 WASHER
00315630S01 O-RING 2X1 NBR 55
15 00318269-01 DISTANCE BOLT
16 00309916-01 NYLON SEALING WASHER
17 00305286-01 QUICK-RELEASE FASTENER
18 00306797-07 CONVERSION PCB ADHESIVE
APPLICATION HEAD
19 00328714-01 Z-AXIS G2-10ML
20 00301694-04 Z - SLIDER
21 00311394-01 RECIRCULATING BALL UNIT RSR7M
MINIATURE LM
22 00301696-03 MOTOR MOUNT
23 00310334-01 SIPLACE GLUE HEAD MOTOR
COMPLETE
24 00306741-02 MOTOR INCREMENTAL SHAFT
ENCODER Z-AXIS
25 00310335-01 SIPLACE GLUE HEAD CAM DISK
26 00309838-01 PROXIMITY SWITCH Z-AXIS
27 00301700-01 MOTOR FLANGE
28 00301697-01 SIPLACE GLUE HEAD BALL
BEARRING
29 00328488-02 HEAT EXCHANCER 10 ML
30 00303537S02 CARDIDGE GUIDE
31 00310341-05 TUBE GUIDE COMPLETE
