8 Control and Communication
8.6 Network Construction
124 Technical Training FSE SIPLACE TX-Series 01/2018
1. CAN connections 1-4
2. LAN connection
3. DIP switches - setting the terminator of
120 Ohm for CANx-
Note:
The DIP switch settings (see below) are
valid for both DIP switches.
4. Power Input
DIP switch settings
8.6 Network Construction
Network Construction
IP address Subnet mask Comment
SIPLACE Lan 172.22.xxx.xxx 255.255.0.0 LAN connection on the
computer
CIN 192.168.255.239 255.255.255.224 LAN connection on the
computer
Station computer 192.168.255.249 255.255.255.224
8 Control and Communication
8.7 Axis Control
Technical Training FSE SIPLACE TX-Series 01/2018 125

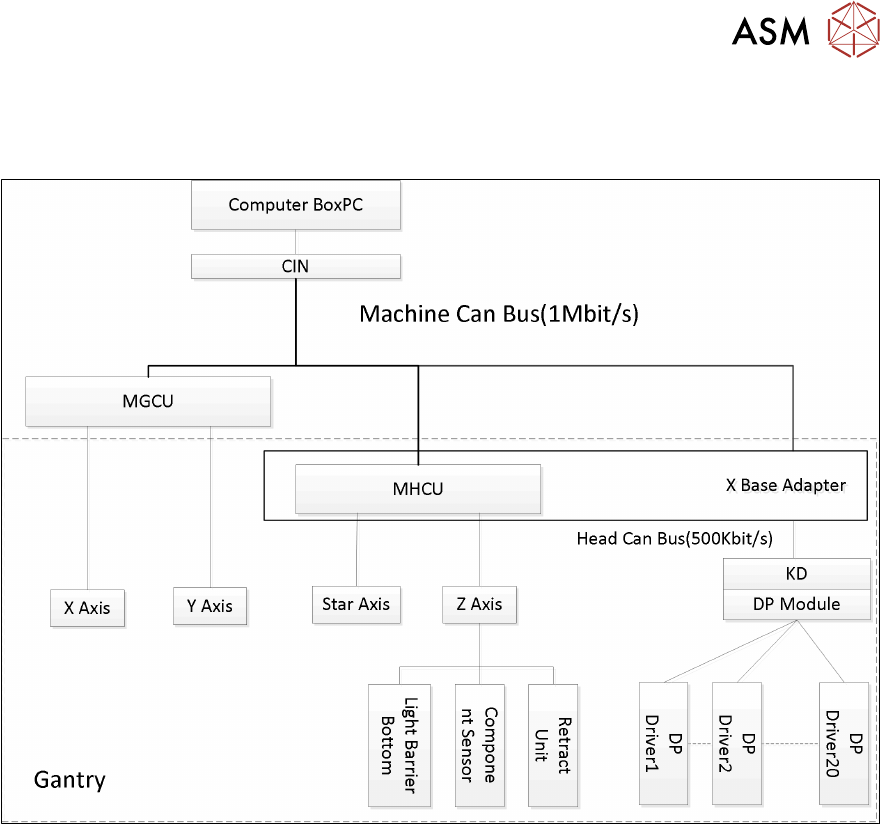

8.7 Axis Control
Axis Control
8.8 FCU
The FCUs (Feeder Control Unit) on TX machines has the basically functionality:
●
Communication with the feeders and docking of the COT.
●
Control of the tape cutter (moving the pneumatic cylinders in and out, status query of the
sensors).
●
Nozzle changers detection and the nozzle station (forced air valve for the C&P20 and CPP)
control.
●
Query of the sensors for the component/nozzle reject boxes.
During production with (SW1= OFF) the reject bin is recognized by the sensor and signalized by
the LED.

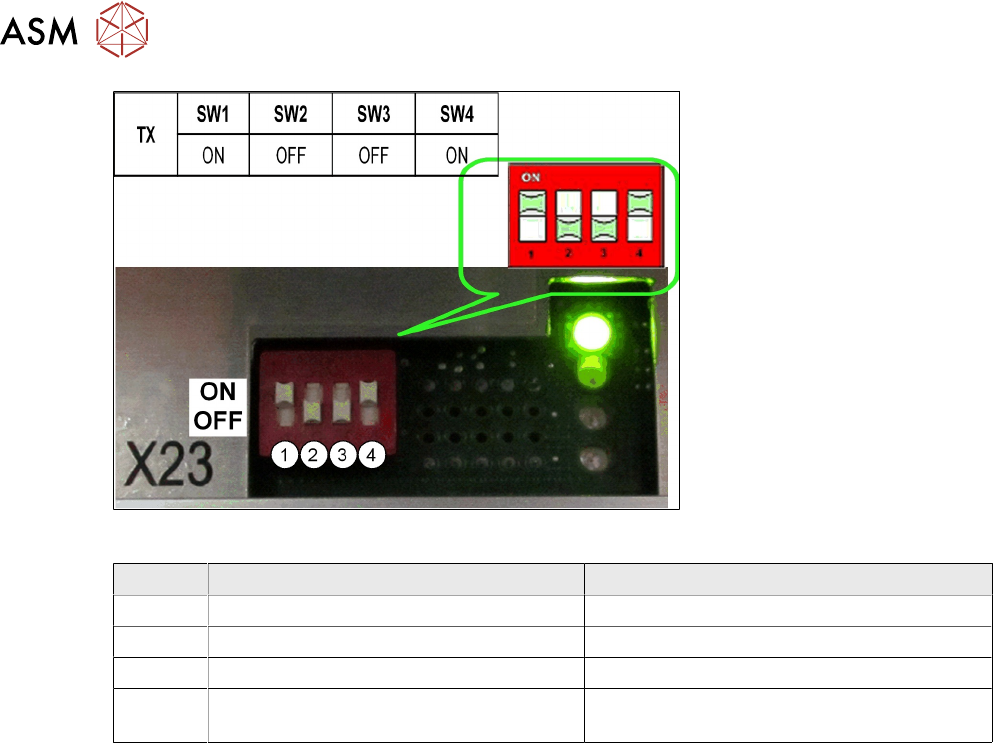

The FCU need to be addressed for the TX see diagram below:
8 Control and Communication
8.8 FCU
126 Technical Training FSE SIPLACE TX-Series 01/2018
Switch settings
ON OFF
SW1 Test mode for reject bins deactivated Test mode for reject bins activated
SW2 60 Fold FCU 40 Fold FCU
SW3 Without insert control with virtual button With insert control without virtual button
SW4 HW version 8 with tape cutter and nozzle
changer functions
HW version without tape cutter and nozzle
changer functions
