5 Component Supply

5.7 Nozzle Changer for C&P20 P/M2 / CPP and Twin Heads

Technical Training FSE SIPLACE TX-Series 01/2018 57

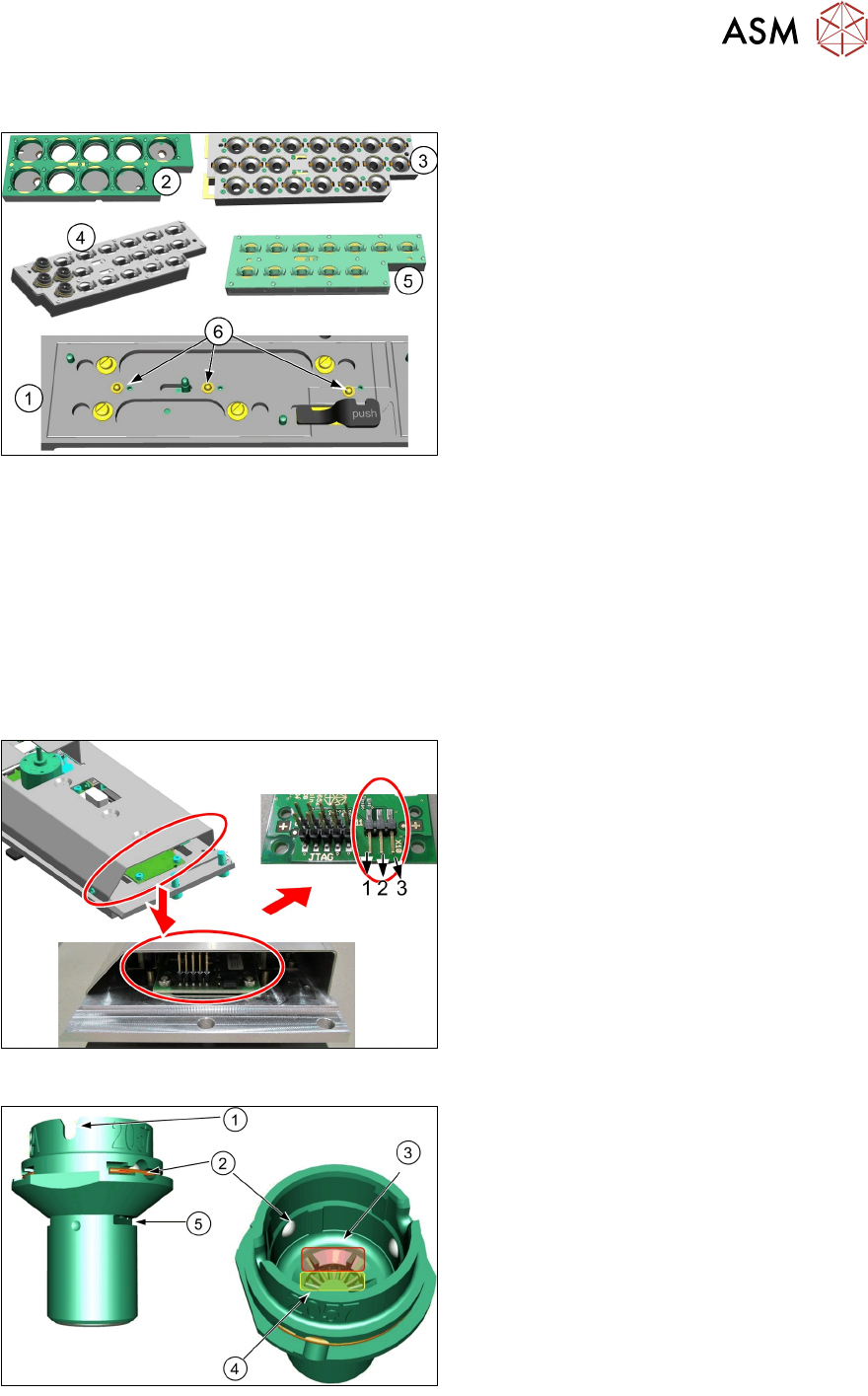

5.7 Nozzle Changer for C&P20 P/M2 / CPP and Twin Heads

1. Nozzle changer carrier module short

2. Magazine type 28xx for CPP

3. Magazine type 40xx for C&P20 P and M2

4. Magazine type 20xx with 20 Nozzles for

CPP

5. Magazine type 20xx for CPP

6. Micro switches for magazine detection

The nozzle changer consists of four magazines. The magazines are seated on a carrier module.

Each magazine is fixed with the help of a snap fastener and can be released with a lever.

Each garage can be configured with different nozzle types. It is allowed to mix all three magazine in

one nozzle changer (12*20xx, 20*20xx and 9*28xx magazine types).

The station software cannot detect if a magazine with 12 garages is inserted or one with 20 gar-

ages. The difference can only be determined when the fiducials are measured.

Each magazine is scanned by 3 micro switches. These are actuated differently for each magazine

type.

The station software automatically detects which magazine types are used and if all magazines are

inserted correctly.

●

Nozzle changer control board settings.

●

The jumper setting is required to make

the nozzle changer compatible to all soft-

ware versions.

●

Setting for CPP and C&P20P is 2-3.

Nozzle ID

1. Nozzle fixing groove with nozzle interface

2. Nozzle ball lock

3. Nozzle barcode to identify the nozzle

type via the PCB camera

4. Nozzle filter

5. Nozzle lock for return and reject

5 Component Supply

5.8 Analysis - Common Error List

58 Technical Training FSE SIPLACE TX-Series 01/2018

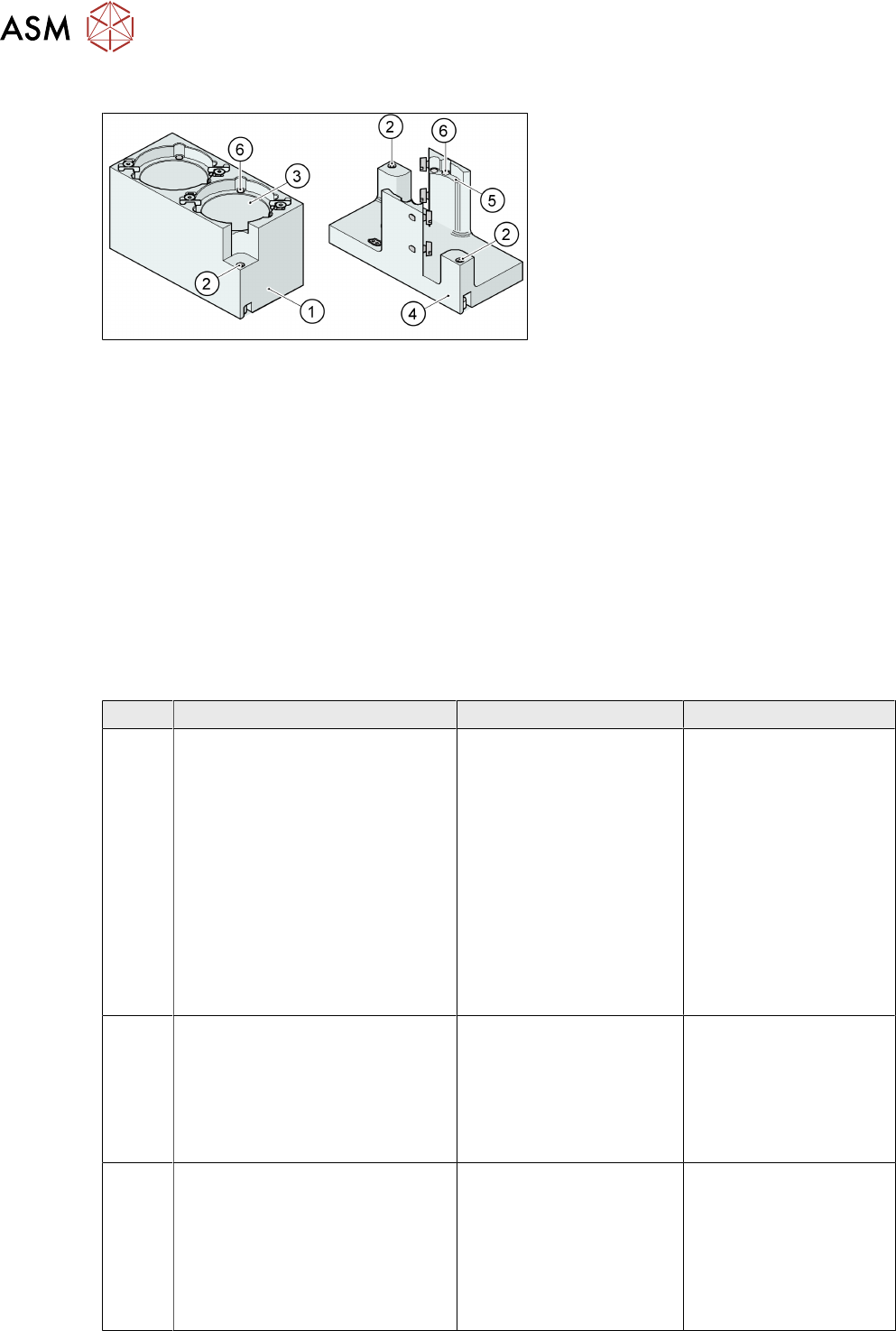

5.7.1 Nozzle Changer Twin Head

1. Standard magazine

2. Positioning fiducials

3. Nozzle garage

4. Magazine for special nozzles

5. Nozzle garage for special nozzles

6. Balls for lifting the nozzles

This nozzle changer can accommodate up to 8 nozzle magazines. There are two different

magazine

types available: standard magazines and magazines for special nozzles or grippers.

The magazine for standard nozzles has 1 positioning fiducial for position detection, while the

magazine for special nozzles/grippers has two positioning fiducials. The nozzles are fixed in the

holder. They are then either locked for return or released for pickup, depending on the direction of

rotation of the D Axis.

Standard configuration:

●

3 magazines with two nozzle garages each.

●

1 magazine with one nozzle garage.

5.8 Analysis - Common Error List

Code Error Description Possible Cause Action

35410

35411

35412

35413

●

Left cutter not retracted

●

Left cutter not extended

●

Right cutter not retracted

●

Right cutter not extended

●

Incorrect proximity

switch position

●

Defective proximity

switch

●

Defective valve

●

Short of compressed

air

●

Defective cylinder

●

Check & adjust the

position of proximity

switch

●

Replace the switch

if necessary

●

Check power &

functionality of the

valve

●

Check compressed

air supply

●

Replace defective

cylinder

34946

34874

31820

35005

●

Stepping of feeder is not

possible

●

Feeder: tape drive error

●

Component was not trans-

ported into the specified

position

●

Tape is jammed or

twisted

●

Tape drive is faulty

●

Toothed wheel is

jammed

●

Check tape feeder

●

Replace the tape

drive or the feeder

●

Check the toothed

wheel and remove

any components

35401 Tape obstructed in tape duct or

couldn’t be cut

●

Stick tape material

used

●

Incorrect position of

cutter blade

●

Worn cutter blade

●

Check tape sticki-

ness

●

Test different

component tape for

cutting

●

Replace cutter

blade if necessary

5 Component Supply

5.9 Excercise: Component Supply

Technical Training FSE SIPLACE TX-Series 01/2018 59

Code Error Description Possible Cause Action

30551

30552

●

Cannot open nozzle changer

●

Cannot closed nozzle

changer

●

Nozzle inserted incor-

rectly

●

Components in

nozzle changer

●

Check nozzle

changer for incor-

rect inserted nozzle

or components

Use station software to

check function

5.9 Excercise: Component Supply

1. Which of the following statements is true regarding the TX component supply?

A The component table can be used on SX4 or XS machine.

B Additional retrofitting is necessary for second level reel support.

C The tape waste bin is an industry standard box.

D The use of a JTF-ML is possible on both location1 and 2.

2. Location 1, track 13-1, 2X8mm feeder, the chip component cannot be pick up, please

list possible reason.

………………………………………………………………………………………………………
