1 Machine Safety

1.1 Machine Safety

Technical Training FSE SIPLACE TX-Series 01/2018 7

1 Machine Safety

1.1 Machine Safety

CAUTION

Any persons working on the machine must be familiar with the safety instructions in the

user manual and observe this at all times. The following safety instructions are only an ex-

cerpt from the chapter "Operational Safety" in the SIPLACE user manual. For further de-

tailed safety information please refer to the User Manual that was supplied with your

machine. Please pay attention to the safety instructions as delivered by our instructor.

TX buttons and switches

1. Emergency stop button

2. Stop and start buttons

3. Button for docking and undocking the

component trolley at the respective loca-

tions

NOTICE

DO NOT use the emergency stop button to stop the machine unless in emergency

situation! Use only the stop button (black) for general machine stop!

Permanent magnets symbol

●

Risk of death for persons with active

implants (e.g. pacemakers, insulin

pumps, defibrillators).

●

Danger of crushing for persons with

passive metal implants (e.g. plates,

screws).

●

Do not reach into the machine or bend

towards it when the protective covers

are open.

●

Do not bring any metal objects into the

area.

1 Machine Safety

1.2 Warning Labels - General

8 Technical Training FSE SIPLACE TX-Series 01/2018

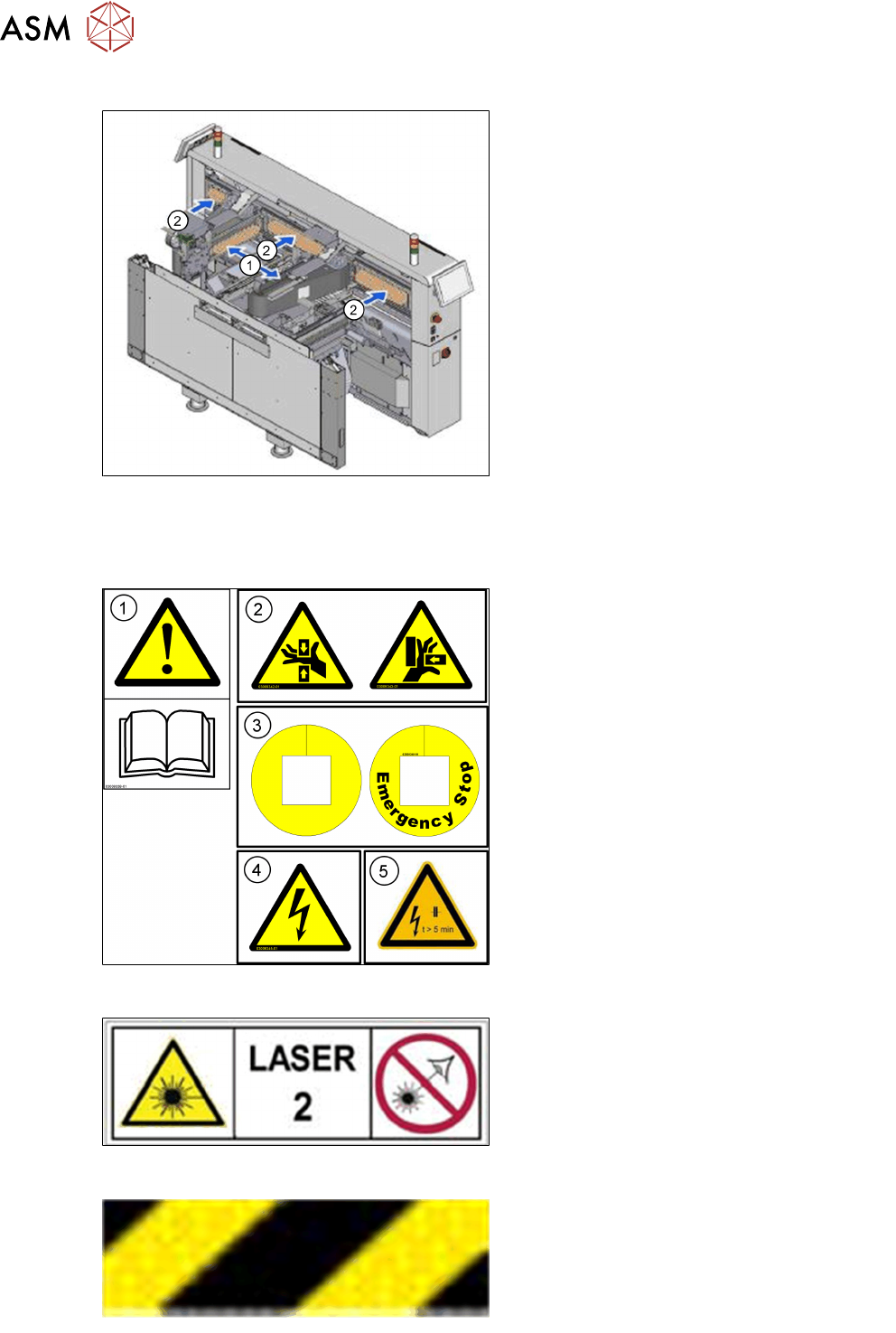

Permanent magnets

Permanent magnets for TX series

1. Permanent magnets for X linear motors

2. Permanent magnets for Y liner motors

1.2 Warning Labels - General

Warning Labels General

1. Read safety instructions before use

2. Danger of crushing – Do not reach into

the machine while it is operating

3. Yellow ring around the emergency stop

buttons

4. Dangerous Voltages – risk of electric

shock or burn – areas of the machine

where high voltages are present

5. In some areas voltages can be present for

up to 5 minutes

Warning Labels Lasers

LASER RADIATION

Laser class 2

Acc. to IEC 60825-1:2014

DO NOT look into beam!

Warning strips on the inside of the output conveyor

Risk of hand injuries (crushing) over an ex-

tensive area.

Reaching in here can lead to injuries to the

arms and hands.

Do not reach into the inside of the neighbor-

ing machine.

1 Machine Safety

1.3 High temperatures related to C&P20 A/M/P/M2 Head, X-Feeder 8mm and SmartFeeder 4mmX /

8mmX

Technical Training FSE SIPLACE TX-Series 01/2018 9

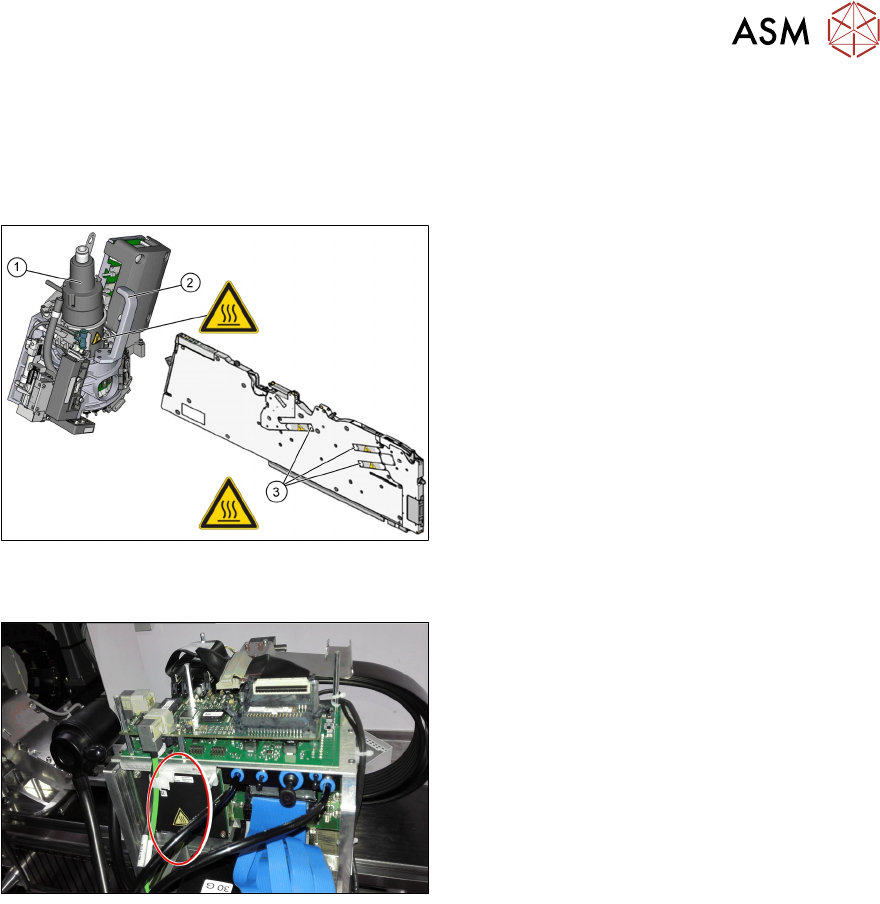

1.3 High temperatures related to C&P20 A/M/P/M2 Head, X-

Feeder 8mm and SmartFeeder 4mmX / 8mmX

Areas of the C&P20 Head, X-Feeder 8mm and SmartFeeder 4mmX / 8mmX can reach high

temperatures when they have been in continuous operation.

The Star motor body can become hot during op-

eration – take care not to touch the parts!

1. Star motor housing

2. Grab handle

The stepper motors used by the X-feeders can

become hot during operation – take care not to

touch the parts!

3. Stepper motors

1.4 High temperature related to MHCU

●

The MHCU covers can become hot during

operation – take care not to touch the

parts!

1.5 ESD Guidelines

Do not touch electronic modules unless it is absolutely essential to do so. If it is necessary, make

sure that you do not touch the pins or printed conductors when you pick up flat modules.

Do not touch components unless

●

you are constantly earthed by an ESD wrist strap or

●

you are wearing ESD shoes or ESD shoe earthing strips on an ESD floor.

Always discharge yourself before you touch an electronic module. To do this, simply touch a con-

ductive and earthed object immediately before you touch the module (such as unpainted parts of a

switch cabinet, a water pipe, etc.).

Do not allow modules with chargeable and highly insulating materials to touch one another, e.g.

plastic films, insulating table surfaces or items of clothing made from synthetic fibers.

Always place the modules on a conductive surface (table with an ESD coating, conductive ESD

foam, ESD bag or container).

Do not bring modules near visual display units, monitors or televisions. Keep them at least 10 cm

away from the screen.

Do not take measurements on such modules unless

●

the measuring device is earthed (e.g. via PE conductors)

●

you discharge the measuring head before taking measurements with a potential-free measur-

ing device (e.g. by touching an unpainted metal part of the controller casing).

Always use an earthed soldering iron if you carry out any soldering work.
