6 PCB Handling SIPLACE 80S-20/F4 Service Manual 6.8 Width Adjustment Edition 01/96 6 - 40

SIPLACE 80S-20/F4 Service Manual 6 PCB Handling

Edition 01/96 6.8 Width Adjustment

6 - 39

Fig. 6.8.2 Replacing limit switches

Key to Fig. 6.8.2

1 Limit switch, maximum width

2 Limit switch, minimum width

T Direction of PCB transport

6 PCB Handling SIPLACE 80S-20/F4 Service Manual

6.8 Width Adjustment Edition 01/96

6 - 40

SIPLACE 80S-20/F4 Service Manual 6 PCB Handling

Edition 01/96 6.9 Sonar BERO

6 - 41

6.9 Sonar BERO

Spare parts, auxiliary materials and equipment

Sonar BERO PCB input conveyor, new PCB handling, Item No. 00320862-01

Sonar BERO PCB center conveyor, new PCB handling Item No. 00320863-01

Sonar BERO PCB output conveyor, new PCB handling Item No. 00320864-01

Wrenches, width across flats 24 and 40, vernier calipers

6.9.1 Removing the sonar BERO unit

NOTE

The sonar BERO sensing head and the evaluation unit can only be replaced as a unit.

In addition, note the safety instructions in Chapter 1 and Section 6.7.1, Page 6 - 31.

● Remove the lifting table as described in Section 6.7.1, Page 6 - 31.

● With the vernier calipers measure the distance between the front face of the sonar BERO and the holder

(A).

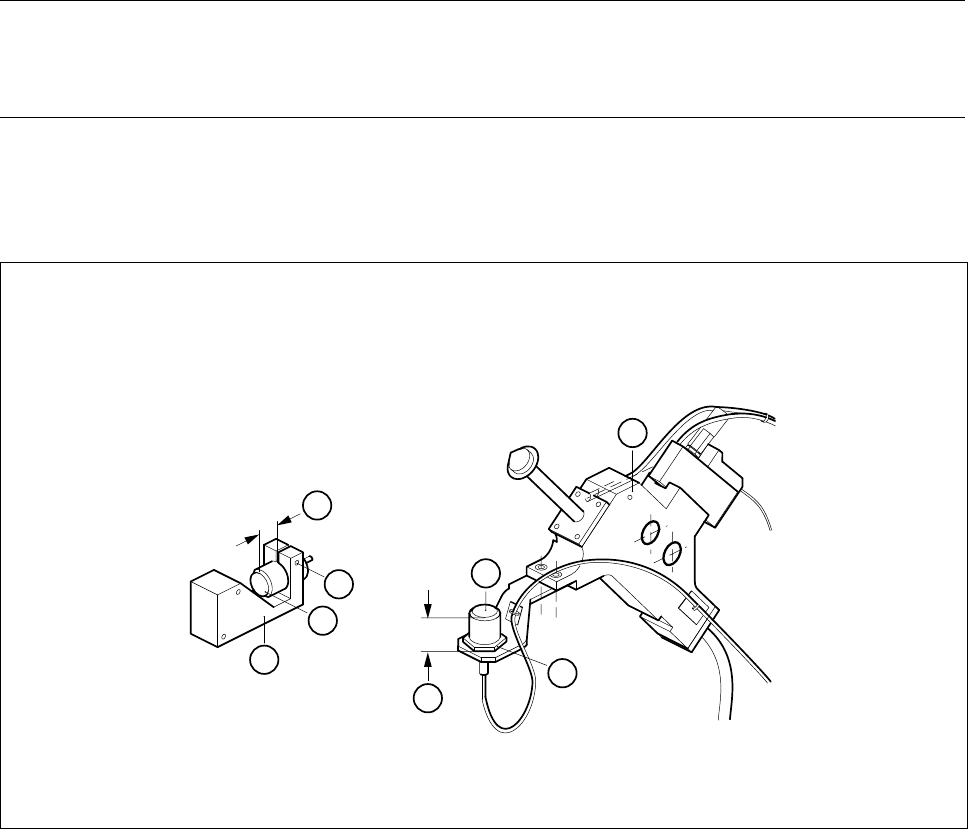

Fig. 6.9.1 Removing the sonar BERO sensing head

Key to Fig. 6.9.1

1 Sonar BERO of input / output conveyors 2 BERO mount

3 Center conveyor sonar BERO 4 Board stopper
