12 Vision systems SIPLACE 80S-20/F4/F5 Service Manual
12.3 Replacing the flip-chip vision camera and illumination controller (SIPLACE 80F) Edition 09/99
12 - 12

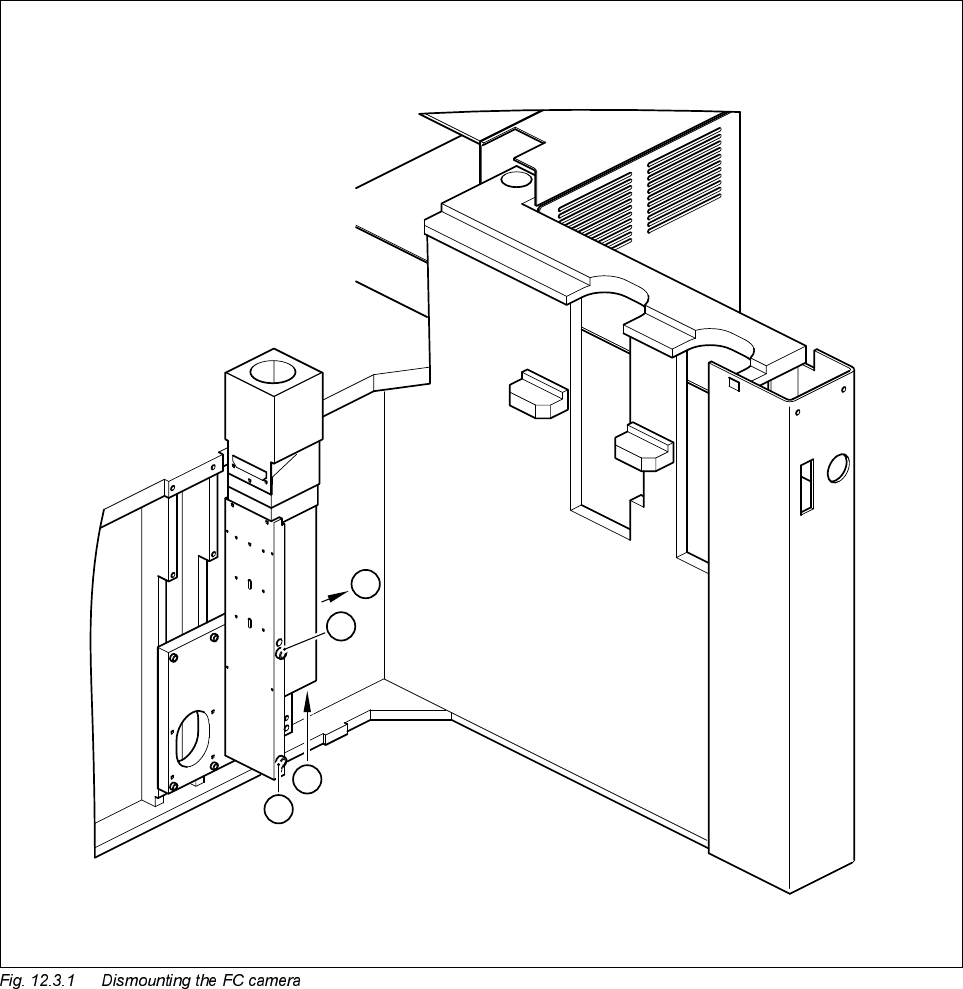

Key to Fig. 12.3.1
A Remove the cover
B Unplug the plugs from the camera and the conversion board
C Undo the M8 x 50 mounting screws
A
B
C
C
SIPLACE 80S-20/F4/F5 Service Manual 12 Vision systems
Edition 09/99 12.3 Replacing the flip-chip vision camera and illumination controller (SIPLACE 80F)
12 - 13
 5HPRYLQJWKHIOLSFKLSLOOXPLQDWLRQFRQWUROERDUG<
NOTE
The illumination control board Y1019 is plugged into socket X7 of the ’Motherboard IC illumination Y1018’ in
the terminal panel ’left’ (D0904).
● Disconnect cable F0616-W2 from plug X2kk of the FC illumination control board
(see
➁
in Fig. 12.3.2 page 12 - 14).
● Remove the illumination control board Y1019 from the ’Motherboard IC illumination Y1018’.
 )LWWLQJWKHIOLSFKLSYLVLRQFDPHUDDQGLOOXPLQDWLRQFRQWUROOHU
● When fitting, proceed in the reverse sequence of actions as described in Section 12.3.3, page 12 - 11 and
Section 12.3.4, page 12 - 13.
● Make sure that the board and plugs are seated properly.
● Be careful not to pinch or squash the cables during installation.
 6HWWLQJZRUN
● Calibrate the flip-chip vision camera with the aid of the SITEST program.
● Once you have completed your setting work, fit the component changeover table back again.
12 Vision systems SIPLACE 80S-20/F4/F5 Service Manual
12.3 Replacing the flip-chip vision camera and illumination controller (SIPLACE 80F) Edition 09/99
12 - 14
Key to Fig. 12.3.2
1 Left-hand terminal panel (D0904)
2 Illumination controller for the flip-chip camera Y1019
