12 Vision s ystems SIPLA CE 80S-20/F4/F5 Service Manual 12.6 Coplanarity Option Edition 09/99 12 - 54 Continuation of Error message: LEAD MISSING 3. Cause: Erron eous lea d desc ription Analysis: Lead d escripti on J-Iea…
SIPLACE 80S-20/F4/F5 Service Manual 12 Vision systems
Edition 09/99 12.6 Coplanarity Option
12 - 53
&RSODQDULW\(UURU0HVVDJHVGXULQJ3ODFHPHQW6HFTXHQFHDQG
3RVVLEOH&DXVHV
12.6.19.1 Error Message: LEAD MISSING

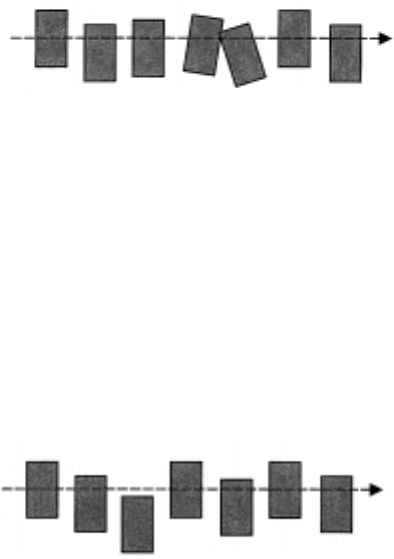

1. Cause:
Poor component quality: Laser beam cannot
reach component lead
Analysis:
Chopping Operation Activate vision system:
Do lead ends form a straight line?
Raw data: Count leads
2. Cause:
Handling error: Lead bent laterally
Analysis:
Chopping Operation activate vision system:
Are leads bumping together?
12 Vision systems SIPLACE 80S-20/F4/F5 Service Manual
12.6 Coplanarity Option Edition 09/99
12 - 54
Continuation of Error message: LEAD MISSING
3. Cause:
Erroneous lead description
Analysis:
Lead description J-Iead package form (only gull-wing
permitted).
Lead length described correctly?
(Lead length = contact length incorrect!)
4. Cause:
Calibration error with z-axis
Analysis:
Test command 8+3: Are raw data values in focus?
(approx. 32000)
(see also Run Data Protocol, Section 12.6.18.2, Page 29)
Gull-Wing
Leads
Laser cone
SIPLACE 80S-20/F4/F5 Service Manual 12 Vision systems
Edition 09/99 12.6 Coplanarity Option
12 - 55
Continuation of error message: LEAD MISSING

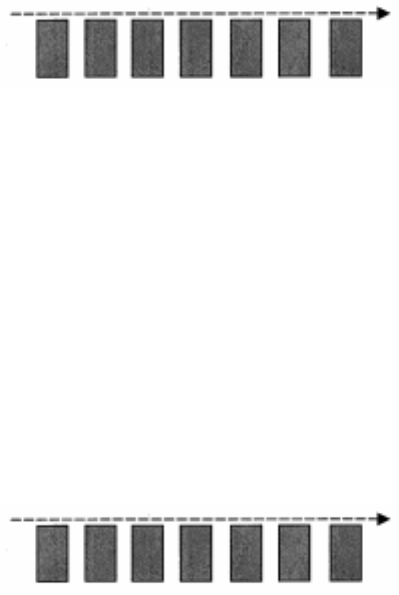

5. Cause:
Calibration error on x/y-plane
Analysis:
Test command 8+3: Does one row of leads in ADP.OUT
exhibit only (-1)-values?
Chopping operation: Activate vision system - Do scan lines
exhibit systematic offset?
6. Cause:
Calibration error with IC-sensor after
calibration of coplanarity option
Analysis:
Test command 8+3: Does a row of leads in ADP.OUT
exhibit only (-1)-values?
