4.1 Introduction

4.1.1 Safety Instructions

DANGER

QQQ

The machines in the SIPLACE series are supplied with a system voltage of 3 x 400 V ± 10 %, 50/60 Hz.

This means that parts of the machine will be carrying potentially lethal voltages even when the main switch is

switched off.

Improper handling or use of this machine could therefore result in death or serious injury as well as consider-

able damage to property.

You should note and comply with the relevant accident prevention and VDE

regulations (particularly VDE

0113). You should also comply with the special safety regulations which apply in your own country.

Measurement and corrective maintenance work may only be carried out by qualified personnel.

Before you start any corrective maintenance work, switch off the main switch and pull out the power. Make

sure the machine cannot be switched back on again unintentionally.

If you do not comply with this requirement, touching live parts may result in death or serious injury.

This corrective maintenance work must not be carried out by anyone except qualified personnel.

4.1.2 Auxiliary Materials and Equipment Required

– Digital voltmeter, class 1.5

Ranges of measurement:

Alternating voltage 750 V

Alternating current 20 A

Direct voltage 200 V

Direct current 20 A

– Resistance 0 - ∞ Ω

– Circuit diagrams folder, SIPLACE 80S-20/F

Item No. 00190714-01

1. Association of German Electrical Engineers

4 Power Supply SIPLACE 80S-20/F4 Service Manual

4.1 Introduction Edition 01/96

4 - 6

4.1.3 Location of the Subassemblies

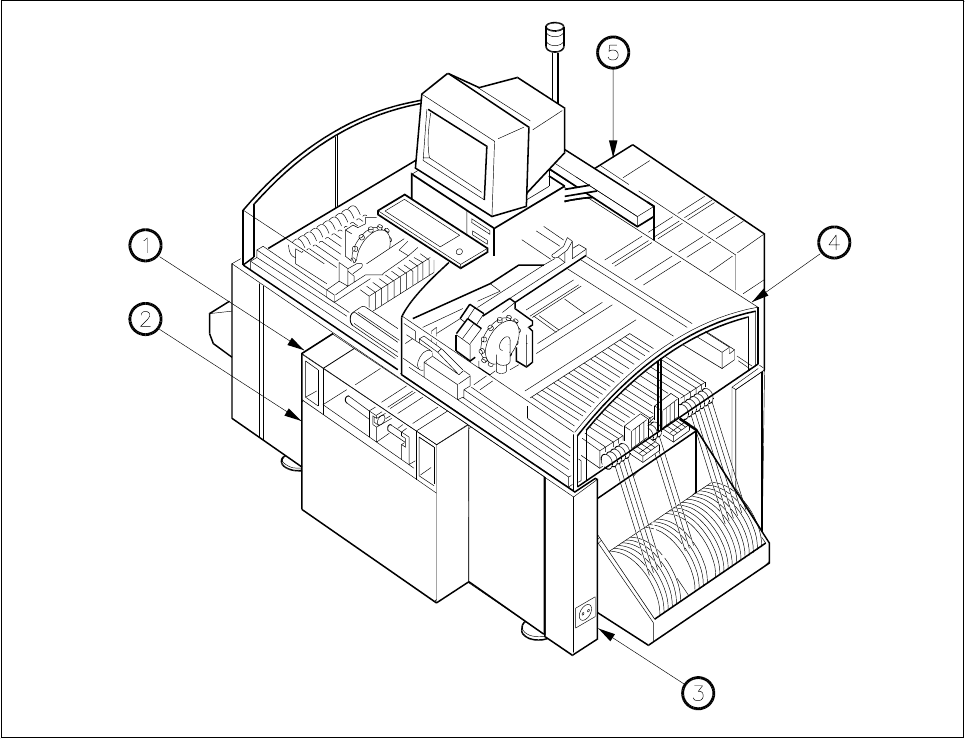

Fig. 4.1.1 Location of the subassemblies

1. Main switch

2. Power supply unit C0952

3. Servicing socket Y0924 and line filter Z1

4. Servo unit 80S-20: C0935

80F

: D0935

5. Control unit 80S-20: C0938

80F

: D0938

4.1.4 Supply Voltages

The supply voltage (3 x 400 V ± 10 %, 50/60 Hz) comes in via a 5-pin CEE plug 16A. The voltage for the ser-

vicing socket is tapped off from the supply voltage and protected with the automatic circuit-breaker Y924-F1.

A line filter has been included in the supply circuit upstream of the main switch in order to suppress transient.
